(Державки с прямоугольным хвостовиком • Метрическая система — продолжение)
Правое исполнение

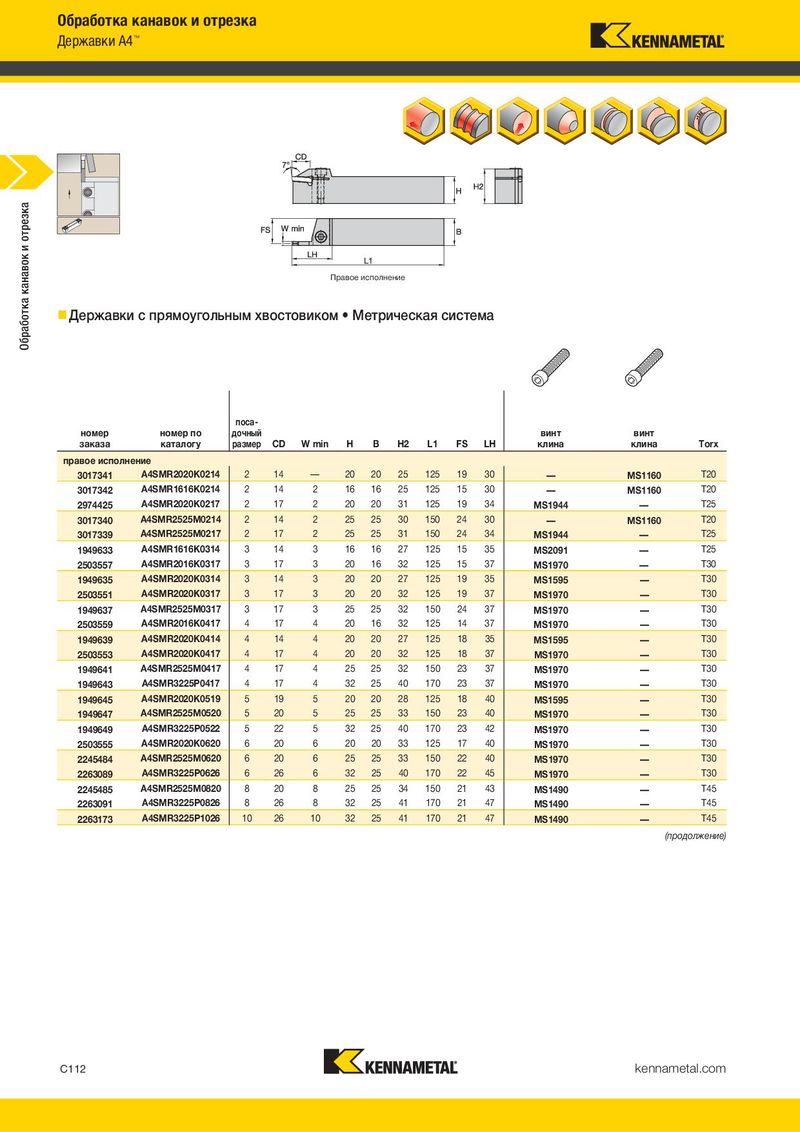

Державки с прямоугольным хвостовиком • Метрическая система
поса-
номер номер по дочный винт винт
| заказа | размер каталогу | CD | W min | H | B | H2 | L1 | FS | LH | клина клина | Torx | ||
| правое исполнение | |||||||||||||
| 3017341 | A4SMR2020K0214 | 2 | 14 | — | 20 | 20 | 25 | 125 | 19 | 30 | MS1160 — | T20 | |
| 3017342 | A4SMR1616K0214 | 2 | 14 | 2 | 16 | 16 | 25 | 125 | 15 | 30 | MS1160 — | T20 | |
| 2974425 | A4SMR2020K0217 | 2 | 17 | 2 | 20 | 20 | 31 | 125 | 19 | 34 | MS1944 | — | T25 |
| 3017340 | A4SMR2525M0214 | 2 | 14 | 2 | 25 | 25 | 30 | 150 | 24 | 30 | MS1160 — | T20 | |
| 3017339 | A4SMR2525M0217 | 2 | 17 | 2 | 25 | 25 | 31 | 150 | 24 | 34 | MS1944 | — | T25 |
| 1949633 | A4SMR1616K0314 | 3 | 14 | 3 | 16 | 16 | 27 | 125 | 15 | 35 | MS2091 | — | T25 |
| 2503557 | A4SMR2016K0317 | 3 | 17 | 3 | 20 | 16 | 32 | 125 | 15 | 37 | MS1970 | — | T30 |
| 1949635 | A4SMR2020K0314 | 3 | 14 | 3 | 20 | 20 | 27 | 125 | 19 | 35 | MS1595 | — | T30 |
| 2503551 | A4SMR2020K0317 | 3 | 17 | 3 | 20 | 20 | 32 | 125 | 19 | 37 | MS1970 | — | T30 |
| 1949637 | A4SMR2525M0317 | 3 | 17 | 3 | 25 | 25 | 32 | 150 | 24 | 37 | MS1970 | — | T30 |
| 2503559 | A4SMR2016K0417 | 4 | 17 | 4 | 20 | 16 | 32 | 125 | 14 | 37 | MS1970 | — | T30 |
| 1949639 | A4SMR2020K0414 | 4 | 14 | 4 | 20 | 20 | 27 | 125 | 18 | 35 | MS1595 | — | T30 |
| 2503553 | A4SMR2020K0417 | 4 | 17 | 4 | 20 | 20 | 32 | 125 | 18 | 37 | MS1970 | — | T30 |
| 1949641 | A4SMR2525M0417 | 4 | 17 | 4 | 25 | 25 | 32 | 150 | 23 | 37 | MS1970 | — | T30 |
| 1949643 | A4SMR3225P0417 | 4 | 17 | 4 | 32 | 25 | 40 | 170 | 23 | 37 | MS1970 | — | T30 |
| 1949645 | A4SMR2020K0519 | 5 | 19 | 5 | 20 | 20 | 28 | 125 | 18 | 40 | MS1595 | — | T30 |
| 1949647 | A4SMR2525M0520 | 5 | 20 | 5 | 25 | 25 | 33 | 150 | 23 | 40 | MS1970 | — | T30 |
| 1949649 | A4SMR3225P0522 | 5 | 22 | 5 | 32 | 25 | 40 | 170 | 23 | 42 | MS1970 | — | T30 |
| 2503555 | A4SMR2020K0620 | 6 | 20 | 6 | 20 | 20 | 33 | 125 | 17 | 40 | MS1970 | — | T30 |
| 2245484 | A4SMR2525M0620 | 6 | 20 | 6 | 25 | 25 | 33 | 150 | 22 | 40 | MS1970 | — | T30 |
| 2263089 | A4SMR3225P0626 | 6 | 26 | 6 | 32 | 25 | 40 | 170 | 22 | 45 | MS1970 | — | T30 |
| 2245485 | A4SMR2525M0820 | 8 | 20 | 8 | 25 | 25 | 34 | 150 | 21 | 43 | MS1490 | — | T45 |
| 2263091 | A4SMR3225P0826 | 8 | 26 | 8 | 32 | 25 | 41 | 170 | 21 | 47 | MS1490 | — | T45 |
| 2263173 | A4SMR3225P1026 | 10 | 26 | 10 | 32 | 25 | 41 | 170 | 21 | 47 | MS1490 | — | T45 |
(продолжение)
поса-
номер номер по дочный винт винт
| заказа | размер каталогу | CD | W min | H | B | H2 | L1 | FS | LH | клина клина | Torx | ||
| левое исполнение | |||||||||||||
| 3017336 | A4SML2020K0214 | 2 | 14 | — | 20 | 20 | 25 | 125 | 19 | 30 | MS1160 — | T20 | |
| 3017338 | A4SML1616K0214 | 2 | 14 | 2 | 16 | 16 | 25 | 125 | 15 | 30 | MS1160 — | T20 | |
| 3017337 | A4SML2020K0217 | 2 | 17 | 2 | 20 | 20 | 31 | 125 | 19 | 34 | MS1944 | — | T25 |
| 3017335 | A4SML2525M0214 | 2 | 14 | 2 | 25 | 25 | 30 | 150 | 24 | 30 | MS1160 — | T20 | |
| A4SML2525M0217 | 2 | 17 | 2 | 25 | 25 | 31 | 150 | 24 | 34 | T25 | |||
| 3017334 | MS1944 | — | |||||||||||
| 1949634 | A4SML1616K0314 | 3 | 14 | 3 | 16 | 16 | 27 | 125 | 15 | 35 | MS2091 | — | T25 |
| 2503556 | A4SML2016K0317 | 3 | 17 | 3 | 20 | 16 | 32 | 125 | 15 | 37 | MS1970 | — | T30 |
| 1949636 | A4SML2020K0314 | 3 | 14 | 3 | 20 | 20 | 27 | 125 | 19 | 35 | MS1595 | — | T30 |
| 2503550 | A4SML2020K0317 | 3 | 17 | 3 | 20 | 20 | 32 | 125 | 19 | 37 | MS1970 | — | T30 |
| 1949638 | A4SML2525M0317 | 3 | 17 | 3 | 25 | 25 | 32 | 150 | 24 | 37 | MS1970 | — | T30 |
| 1949640 | A4SML2020K0414 | 4 | 14 | 4 | 20 | 20 | 27 | 125 | 18 | 35 | MS1595 | — | T30 |
| 2503552 | A4SML2020K0417 | 4 | 17 | 4 | 20 | 20 | 32 | 125 | 18 | 37 | MS1970 | — | T30 |
| 1949642 | A4SML2525M0417 | 4 | 17 | 4 | 25 | 25 | 32 | 150 | 23 | 37 | MS1970 | — | T30 |
| A4SML3225P0417 | 4 | 17 | 4 | 32 | 25 | 40 | 170 | 23 | 37 | T30 | |||
| 1949644 | MS1970 | — | |||||||||||
| 1949646 | A4SML2020K0519 | 5 | 19 | 5 | 20 | 20 | 28 | 125 | 18 | 40 | MS1595 | — | T30 |
| 1949648 | A4SML2525M0520 | 5 | 20 | 5 | 25 | 25 | 33 | 150 | 23 | 40 | MS1970 | — | T30 |
| 1949650 | A4SML3225P0522 | 5 | 22 | 5 | 32 | 25 | 40 | 170 | 23 | 42 | MS1970 | — | T30 |
| A4SML2020K0620 | 6 | 20 | 6 | 20 | 20 | 33 | 125 | 17 | 40 | T30 | |||
| 2503554 | MS1970 | — | |||||||||||
| A4SML2525M0620 | 6 | 20 | 6 | 25 | 25 | 33 | 150 | 22 | 40 | T30 | |||
| 2245486 | MS1970 | — | |||||||||||
| A4SML3225P0626 | 6 | 26 | 6 | 32 | 25 | 40 | 170 | 22 | 45 | T30 | |||
| 2263090 | MS1970 | — | |||||||||||
| A4SML2525M0820 | 8 | 20 | 8 | 25 | 25 | 34 | 150 | 21 | 43 | T45 | |||
| 2245487 | MS1490 | — | |||||||||||
| A4SML3225P0826 | 8 | 26 | 8 | 32 | 25 | 41 | 170 | 21 | 47 | T45 | |||
| 2263092 | MS1490 | — | |||||||||||
| A4SML3225P1026 | 10 | 26 | 10 | 32 | 25 | 41 | 170 | 21 | 47 | T45 | |||
| 2263174 | MS1490 | — |
| номер заказа | номер по каталогу | поса- дочный размер | CD | W min | H | B | H2 | L1 | FS | LH | винт клина | винт клина | Torx |
| правое испол | нение | ||||||||||||
| 3017341 | A4SMR2020K0214 | 2 | 14 | — | 20 | 20 | 25 | 125 | 19 | 30 | — | MS1160 | T20 |
| 3017342 | A4SMR1616K0214 | 2 | 14 | 2 | 16 | 16 | 25 | 125 | 15 | 30 | — | MS1160 | T20 |
| 2974425 | A4SMR2020K0217 | 2 | 17 | 2 | 20 | 20 | 31 | 125 | 19 | 34 | MS1944 | — | T25 |
| 3017340 | A4SMR2525M0214 | 2 | 14 | 2 | 25 | 25 | 30 | 150 | 24 | 30 | — | MS1160 | T20 |
| 3017339 | A4SMR2525M0217 | 2 | 17 | 2 | 25 | 25 | 31 | 150 | 24 | 34 | MS1944 | — | T25 |
| 1949633 | A4SMR1616K0314 | 3 | 14 | 3 | 16 | 16 | 27 | 125 | 15 | 35 | MS2091 | — | T25 |
| 2503557 | A4SMR2016K0317 | 3 | 17 | 3 | 20 | 16 | 32 | 125 | 15 | 37 | MS1970 | — | T30 |
| 1949635 | A4SMR2020K0314 | 3 | 14 | 3 | 20 | 20 | 27 | 125 | 19 | 35 | MS1595 | — | T30 |
| 2503551 | A4SMR2020K0317 | 3 | 17 | 3 | 20 | 20 | 32 | 125 | 19 | 37 | MS1970 | — | T30 |
| 1949637 | A4SMR2525M0317 | 3 | 17 | 3 | 25 | 25 | 32 | 150 | 24 | 37 | MS1970 | — | T30 |
| 2503559 | A4SMR2016K0417 | 4 | 17 | 4 | 20 | 16 | 32 | 125 | 14 | 37 | MS1970 | — | T30 |
| 1949639 | A4SMR2020K0414 | 4 | 14 | 4 | 20 | 20 | 27 | 125 | 18 | 35 | MS1595 | — | T30 |
| 2503553 | A4SMR2020K0417 | 4 | 17 | 4 | 20 | 20 | 32 | 125 | 18 | 37 | MS1970 | — | T30 |
| 1949641 | A4SMR2525M0417 | 4 | 17 | 4 | 25 | 25 | 32 | 150 | 23 | 37 | MS1970 | — | T30 |
| 1949643 | A4SMR3225P0417 | 4 | 17 | 4 | 32 | 25 | 40 | 170 | 23 | 37 | MS1970 | — | T30 |
| 1949645 | A4SMR2020K0519 | 5 | 19 | 5 | 20 | 20 | 28 | 125 | 18 | 40 | MS1595 | — | T30 |
| 1949647 | A4SMR2525M0520 | 5 | 20 | 5 | 25 | 25 | 33 | 150 | 23 | 40 | MS1970 | — | T30 |
| 1949649 | A4SMR3225P0522 | 5 | 22 | 5 | 32 | 25 | 40 | 170 | 23 | 42 | MS1970 | — | T30 |
| 2503555 | A4SMR2020K0620 | 6 | 20 | 6 | 20 | 20 | 33 | 125 | 17 | 40 | MS1970 | — | T30 |
| 2245484 | A4SMR2525M0620 | 6 | 20 | 6 | 25 | 25 | 33 | 150 | 22 | 40 | MS1970 | — | T30 |
| 2263089 | A4SMR3225P0626 | 6 | 26 | 6 | 32 | 25 | 40 | 170 | 22 | 45 | MS1970 | — | T30 |
| 2245485 | A4SMR2525M0820 | 8 | 20 | 8 | 25 | 25 | 34 | 150 | 21 | 43 | MS1490 | — | T45 |
| 2263091 | A4SMR3225P0826 | 8 | 26 | 8 | 32 | 25 | 41 | 170 | 21 | 47 | MS1490 | — | T45 |
| 2263173 | A4SMR3225P1026 | 10 | 26 | 10 | 32 | 25 | 41 | 170 | 21 | 47 | MS1490 | — | T45 |
