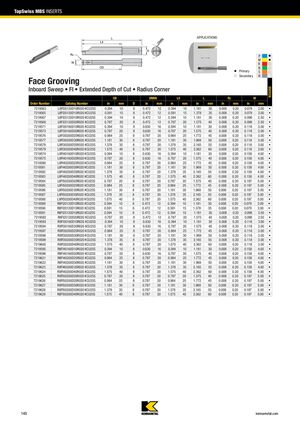

Новинки Kennametal - осень 2024 - страница 146
Навигация
Каталог Kennametal First Choice
Новинки Kennametal - осень 2025
Модульные инструментальные системы линейки KM4X Kennametal 2017
Монолитные концевые фрезы Kennametal 2024
Сменные фрезерные пластины линейки 7792VX Kennametal 2024
TopSwiss MBS INSERTS
Приложения
Первичное применение: P, M
Вторичное применение: K, N, S, H
Обработка торцевых канавок
Внутренний крен • FI • Увеличенная глубина резания • Угловой радиус
| Артикул | Номер каталога | Тип материала | CD, дюйм / мм | D | DMIN, дюйм / мм | L4, дюйм / мм | L, дюйм / мм | R, дюйм / мм | W, дюйм / мм |
|---|---|---|---|---|---|---|---|---|---|
| 7219563 | L8FI20120D10R020 | KCU25S | 0.394 / 10 | 8 | 0.472 / 12 | 0.394 / 10 | 1.181 / 30 | 0.008 / 0.20 | 0.079 / 2.00 |
| 7219565 | L8FI20120D15R020 | KCU25S | 0.591 / 15 | 8 | 0.472 / 12 | 0.591 / 15 | 1.378 / 35 | 0.008 / 0.20 | 0.079 / 2.00 |
| 7219567 | L8FI25120D10R020 | KCU25S | 0.394 / 10 | 8 | 0.472 / 12 | 0.394 / 10 | 1.181 / 30 | 0.008 / 0.20 | 0.098 / 2.50 |
| 7219569 | L8FI25120D20R020 | KCU25S | 0.787 / 20 | 8 | 0.472 / 12 | 0.787 / 20 | 1.575 / 40 | 0.008 / 0.20 | 0.098 / 2.50 |
| 7219571 | L8FI30160D10R020 | KCU25S | 0.394 / 10 | 8 | 0.630 / 16 | 0.394 / 10 | 1.181 / 30 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219573 | L8FI30160D20R020 | KCU25S | 0.787 / 20 | 8 | 0.630 / 16 | 0.787 / 20 | 1.575 / 40 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219576 | L8FI30200D25R020 | KCU25S | 0.984 / 25 | 8 | 0.787 / 20 | 0.984 / 25 | 1.772 / 45 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219577 | L8FI30200D30R020 | KCU25S | 1.181 / 30 | 8 | 0.787 / 20 | 1.181 / 30 | 1.969 / 50 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219578 | L8FI30200D35R020 | KCU25S | 1.378 / 35 | 8 | 0.787 / 20 | 1.378 / 35 | 2.165 / 55 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219579 | L8FI30200D40R020 | KCU25S | 1.575 / 40 | 8 | 0.787 / 20 | 1.575 / 40 | 2.362 / 60 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219574 | L8FI40160D10R020 | KCU25S | 0.394 / 10 | 8 | 0.630 / 16 | 0.394 / 10 | 1.181 / 30 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219575 | L8FI40160D20R020 | KCU25S | 0.787 / 20 | 8 | 0.630 / 16 | 0.787 / 20 | 1.575 / 40 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219580 | L8FI40200D25R020 | KCU25S | 0.984 / 25 | 8 | 0.787 / 20 | 0.984 / 25 | 1.772 / 45 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219581 | L8FI40200D30R020 | KCU25S | 1.181 / 30 | 8 | 0.787 / 20 | 1.181 / 30 | 1.969 / 50 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219582 | L8FI40200D35R020 | KCU25S | 1.378 / 35 | 8 | 0.787 / 20 | 1.378 / 35 | 2.165 / 55 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219583 | L8FI40200D40R020 | KCU25S | 1.575 / 40 | 8 | 0.787 / 20 | 1.575 / 40 | 2.362 / 60 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219584 | L8FI50200D20R020 | KCU25S | 0.787 / 20 | 8 | 0.787 / 20 | 0.787 / 20 | 1.575 / 40 | 0.008 / 0.20 | 0.197 / 5.00 |
| 7219585 | L8FI50200D25R020 | KCU25S | 0.984 / 25 | 8 | 0.787 / 20 | 0.984 / 25 | 1.772 / 45 | 0.008 / 0.20 | 0.197 / 5.00 |
| 7219586 | L8FI50200D30R020 | KCU25S | 1.181 / 30 | 8 | 0.787 / 20 | 1.181 / 30 | 1.969 / 50 | 0.008 / 0.20 | 0.197 / 5.00 |
| 7219587 | L8FI50200D35R020 | KCU25S | 1.378 / 35 | 8 | 0.787 / 20 | 1.378 / 35 | 2.165 / 55 | 0.008 / 0.20 | 0.197 / 5.00 |
| 7219588 | L8FI50200D40R020 | KCU25S | 1.575 / 40 | 8 | 0.787 / 20 | 1.575 / 40 | 2.362 / 60 | 0.008 / 0.20 | 0.197 / 5.00 |
| 7219589 | R8FI20120D10R020 | KCU25S | 0.394 / 10 | 8 | 0.472 / 12 | 0.394 / 10 | 1.181 / 30 | 0.008 / 0.20 | 0.079 / 2.00 |
| 7219590 | R8FI20120D15R020 | KCU25S | 0.591 / 15 | 8 | 0.472 / 12 | 0.591 / 15 | 1.378 / 35 | 0.008 / 0.20 | 0.079 / 2.00 |
| 7219591 | R8FI25120D10R020 | KCU25S | 0.394 / 10 | 8 | 0.472 / 12 | 0.394 / 10 | 1.181 / 30 | 0.008 / 0.20 | 0.098 / 2.50 |
| 7219592 | R8FI25120D20R020 | KCU25S | 0.787 / 20 | 8 | 0.472 / 12 | 0.787 / 20 | 1.575 / 40 | 0.008 / 0.20 | 0.098 / 2.50 |
| 7219593 | R8FI30160D10R020 | KCU25S | 0.394 / 10 | 8 | 0.630 / 16 | 0.394 / 10 | 1.181 / 30 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219594 | R8FI30160D20R020 | KCU25S | 0.787 / 20 | 8 | 0.630 / 16 | 0.787 / 20 | 1.575 / 40 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219597 | R8FI30200D25R020 | KCU25S | 0.984 / 25 | 8 | 0.787 / 20 | 0.984 / 25 | 1.772 / 45 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219598 | R8FI30200D30R020 | KCU25S | 1.181 / 30 | 8 | 0.787 / 20 | 1.181 / 30 | 1.969 / 50 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219599 | R8FI30200D35R020 | KCU25S | 1.378 / 35 | 8 | 0.787 / 20 | 1.378 / 35 | 2.165 / 55 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219600 | R8FI30200D40R020 | KCU25S | 1.575 / 40 | 8 | 0.787 / 20 | 1.575 / 40 | 2.362 / 60 | 0.008 / 0.20 | 0.118 / 3.00 |
| 7219595 | R8FI40160D10R020 | KCU25S | 0.394 / 10 | 8 | 0.630 / 16 | 0.394 / 10 | 1.181 / 30 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219596 | R8FI40160D20R020 | KCU25S | 0.787 / 20 | 8 | 0.630 / 16 | 0.787 / 20 | 1.575 / 40 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219621 | R8FI40200D25R020 | KCU25S | 0.984 / 25 | 8 | 0.787 / 20 | 0.984 / 25 | 1.772 / 45 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219622 | R8FI40200D30R020 | KCU25S | 1.181 / 30 | 8 | 0.787 / 20 | 1.181 / 30 | 1.969 / 50 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219623 | R8FI40200D35R020 | KCU25S | 1.378 / 35 | 8 | 0.787 / 20 | 1.378 / 35 | 2.165 / 55 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219624 | R8FI40200D40R020 | KCU25S | 1.575 / 40 | 8 | 0.787 / 20 | 1.575 / 40 | 2.362 / 60 | 0.008 / 0.20 | 0.158 / 4.00 |
| 7219625 | R8FI50200D20R020 | KCU25S | 0.787 / 20 | 8 | 0.787 / 20 | 0.787 / 20 | 1.575 / 40 | 0.008 / 0.20 | 0.197 / 5.00 |
| 7219626 | R8FI50200D25R020 | KCU25S | 0.984 / 25 | 8 | 0.787 / 20 | 0.984 / 25 | 1.772 / 45 | 0.008 / 0.20 | 0.197 / 5.00 |
| 7219627 | R8FI50200D30R020 | KCU25S | 1.181 / 30 | 8 | 0.787 / 20 | 1.181 / 30 | 1.969 / 50 | 0.008 / 0.20 | 0.197 / 5.00 |
| 7219628 | R8FI50200D35R020 | KCU25S | 1.378 / 35 | 8 | 0.787 / 20 | 1.378 / 35 | 2.165 / 55 | 0.008 / 0.20 | 0.197 / 5.00 |
| 7219629 | R8FI50200D40R020 | KCU25S | 1.575 / 40 | 8 | 0.787 / 20 | 1.575 / 40 | 2.362 / 60 | 0.008 / 0.20 | 0.197 / 5.00 |
