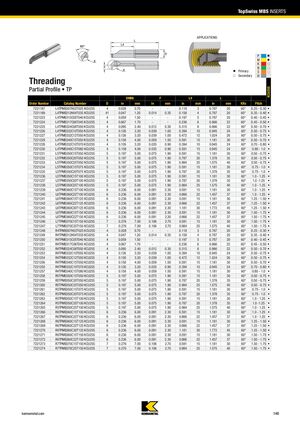

Новинки Kennametal - осень 2024 - страница 147
Навигация
Каталог Kennametal First Choice
Новинки Kennametal - осень 2025
Модульные инструментальные системы линейки KM4X Kennametal 2017
Монолитные концевые фрезы Kennametal 2024
Сменные фрезерные пластины линейки 7792VX Kennametal 2024
TopSwiss MBS INSERTS
Приложения
Первичное применение: P, M
Вторичное применение: K, N, S, H
Нарезание резьбы
Частичный профиль • TP
| Артикул | Номер каталога | D | DMIN, дюйм / мм | F, дюйм / мм | L4, дюйм / мм | L, дюйм / мм | KRx | Шаг |
|---|---|---|---|---|---|---|---|---|
| 7221187 | L4TPME007H03T025 | KCU25S 4 | 0.028 / 0.70 | — / — | 0.118 / 3 | 0.787 / 20 | 60° | 0.25 - 0.30 |
| 7221189 | L4TPME012H04T035 | KCU25S 41 | 0.047 / 1.20 | 0.014 / 0.35 | 0.158 / 4 | 0.787 / 20 | 60° | 0.35 - 0.40 |
| 7221223 | L4TPME015C05T040 | KCU25S 4 | 0.059 / 1.50 | — / — | 0.197 / 5 | 0.787 / 20 | 60° | 0.40 - 0.45 |
| 7221224 | L4TPME017C06T045 | KCU25S 4 | 0.067 / 1.70 | — / — | 0.236 / 6 | 0.866 / 22 | 60° | 0.45 - 0.50 |
| 7221225 | L4TPME024C08T050 | KCU25S 4 | 0.095 / 2.40 | 0.012 / 0.30 | 0.315 / 8 | 0.866 / 22 | 60° | 0.50 - 0.70 |
| 7221226 | L4TPME032C10T050 | KCU25S 4 | 0.126 / 3.20 | 0.039 / 1.00 | 0.394 / 10 | 0.945 / 24 | 60° | 0.50 - 0.75 |
| 7221227 | L4TPME032C12T050 | KCU25S 4 | 0.126 / 3.20 | 0.039 / 1.00 | 0.472 / 12 | 1.024 / 26 | 60° | 0.50 - 0.75 |
| 7221229 | L4TPME040C15T050 | KCU25S 4 | 0.158 / 4.00 | 0.059 / 1.50 | 0.591 / 15 | 1.181 / 30 | 60° | 0.50 - 0.70 |
| 7221228 | L4TPME032C10T070 | KCU25S 4 | 0.126 / 3.20 | 0.035 / 0.90 | 0.394 / 10 | 0.945 / 24 | 60° | 0.70 - 0.80 |
| 7221230 | L4TPME040C15T080 | KCU25S 4 | 0.158 / 4.00 | 0.035 / 0.90 | 0.591 / 15 | 0.945 / 24 | 60° | 0.80 - 1.0 |
| 7221231 | L5TPME050C15T050 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.591 / 15 | 1.181 / 30 | 60° | 0.50 - 0.75 |
| 7221232 | L5TPME050C20T050 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.787 / 20 | 1.378 / 35 | 60° | 0.50 - 0.75 |
| 7221233 | L5TPME050C25T050 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.984 / 25 | 1.575 / 40 | 60° | 0.50 - 0.75 |
| 7221234 | L5TPME050C15T075 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.591 / 15 | 1.181 / 30 | 60° | 0.75 - 1.0 |
| 7221235 | L5TPME050C20T075 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.787 / 20 | 1.378 / 35 | 60° | 0.75 - 1.0 |
| 7221236 | L5TPME050C15T100 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.591 / 15 | 1.181 / 30 | 60° | 1.0 - 1.25 |
| 7221237 | L5TPME050C20T100 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.787 / 20 | 1.378 / 35 | 60° | 1.0 - 1.25 |
| 7221238 | L5TPME050C25T100 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.984 / 25 | 1.575 / 40 | 60° | 1.0 - 1.25 |
| 7221239 | L6TPME060C15T100 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.591 / 15 | 1.181 / 30 | 60° | 1.0 - 1.25 |
| 7221240 | L6TPME060C22T100 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.866 / 22 | 1.457 / 37 | 60° | 1.0 - 1.25 |
| 7221241 | L6TPME060C15T125 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.591 / 15 | 1.181 / 30 | 60° | 1.25 - 1.50 |
| 7221242 | L6TPME060C22T125 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.866 / 22 | 1.457 / 37 | 60° | 1.25 - 1.50 |
| 7221243 | L6TPME060C30T125 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 1.181 / 30 | 1.772 / 45 | 60° | 1.25 - 1.50 |
| 7221244 | L6TPME060C15T150 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.591 / 15 | 1.181 / 30 | 60° | 1.50 - 1.75 |
| 7221245 | L6TPME060C22T150 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.866 / 22 | 1.457 / 37 | 60° | 1.50 - 1.75 |
| 7221246 | L7TPME070C15T150 | KCU25S 7 | 0.276 / 7.00 | 0.106 / 2.70 | 0.591 / 15 | 1.181 / 30 | 60° | 1.50 - 1.75 |
| 7221247 | L7TPME070C25T150 | KCU25S 7 | 0.276 / 7.00 | 0.106 / 2.70 | 0.984 / 25 | 1.575 / 40 | 60° | 1.50 - 1.75 |
| 7221248 | R4TPME007H03T025 | KCU25S 4 | 0.028 / 0.70 | — / — | 0.118 / 3 | 0.787 / 20 | 60° | 0.25 - 0.30 |
| 7221249 | R4TPME012H04T035 | KCU25S 4 | 0.047 / 1.20 | 0.014 / 0.35 | 0.158 / 4 | 0.787 / 20 | 60° | 0.35 - 0.40 |
| 7221250 | R4TPME015C05T040 | KCU25S 4 | 0.059 / 1.50 | — / — | 0.197 / 5 | 0.787 / 20 | 60° | 0.40 - 0.45 |
| 7221251 | R4TPME017C06T045 | KCU25S 4 | 0.067 / 1.70 | — / — | 0.236 / 6 | 0.866 / 22 | 60° | 0.45 - 0.50 |
| 7221252 | R4TPME024C08T050 | KCU25S 4 | 0.095 / 2.40 | 0.012 / 0.30 | 0.315 / 8 | 0.866 / 22 | 60° | 0.50 - 0.70 |
| 7221253 | R4TPME032C10T050 | KCU25S 4 | 0.126 / 3.20 | 0.039 / 1.00 | 0.394 / 10 | 0.945 / 24 | 60° | 0.50 - 0.75 |
| 7221254 | R4TPME032C12T050 | KCU25S 4 | 0.126 / 3.20 | 0.039 / 1.00 | 0.472 / 12 | 1.024 / 26 | 60° | 0.50 - 0.75 |
| 7221256 | R4TPME040C15T050 | KCU25S 4 | 0.158 / 4.00 | 0.059 / 1.50 | 0.591 / 15 | 1.181 / 30 | 60° | 0.50 - 0.70 |
| 7221255 | R4TPME032C10T070 | KCU25S 4 | 0.126 / 3.20 | 0.035 / 0.90 | 0.394 / 10 | 0.945 / 24 | 60° | 0.70 - 0.80 |
| 7221257 | R4TPME040C15T080 | KCU25S 4 | 0.158 / 4.00 | 0.059 / 1.50 | 0.591 / 15 | 1.181 / 30 | 60° | 0.80 - 1.0 |
| 7221258 | R5TPME050C15T050 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.591 / 15 | 1.181 / 30 | 60° | 0.50 - 0.75 |
| 7221259 | R5TPME050C20T050 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.787 / 20 | 1.378 / 35 | 60° | 0.50 - 0.75 |
| 7221260 | R5TPME050C25T050 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.984 / 25 | 1.575 / 40 | 60° | 0.50 - 0.75 |
| 7221261 | R5TPME050C15T075 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.591 / 15 | 1.181 / 30 | 60° | 0.75 - 1.0 |
| 7221262 | R5TPME050C20T075 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.787 / 20 | 1.378 / 35 | 60° | 0.75 - 1.0 |
| 7221263 | R5TPME050C15T100 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.591 / 15 | 1.181 / 30 | 60° | 1.0 - 1.25 |
| 7221264 | R5TPME050C20T100 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.787 / 20 | 1.378 / 35 | 60° | 1.0 - 1.25 |
| 7221265 | R5TPME050C25T100 | KCU25S 5 | 0.197 / 5.00 | 0.075 / 1.90 | 0.984 / 25 | 1.575 / 40 | 60° | 1.0 - 1.25 |
| 7221266 | R6TPME060C15T100 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.591 / 15 | 1.181 / 30 | 60° | 1.0 - 1.25 |
| 7221267 | R6TPME060C22T100 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.866 / 22 | 1.457 / 37 | 60° | 1.0 - 1.25 |
| 7221268 | R6TPME060C15T125 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.591 / 15 | 1.181 / 30 | 60° | 1.25 - 1.50 |
| 7221269 | R6TPME060C22T125 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.866 / 22 | 1.457 / 37 | 60° | 1.25 - 1.50 |
| 7221270 | R6TPME060C30T125 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 1.181 / 30 | 1.772 / 45 | 60° | 1.25 - 1.50 |
| 7221271 | R6TPME060C15T150 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.591 / 15 | 1.181 / 30 | 60° | 1.50 - 1.75 |
| 7221272 | R6TPME060C22T150 | KCU25S 6 | 0.236 / 6.00 | 0.091 / 2.30 | 0.866 / 22 | 1.457 / 37 | 60° | 1.50 - 1.75 |
| 7221273 | R7TPME070C15T150 | KCU25S 7 | 0.276 / 7.00 | 0.106 / 2.70 | 0.591 / 15 | 1.181 / 30 | 60° | 1.50 - 1.75 |
| 7221274 | R7TPME070C25T150 | KCU25S 7 | 0.276 / 7.00 | 0.106 / 2.70 | 0.984 / 25 | 1.575 / 40 | 60° | 1.50 - 1.75 |
