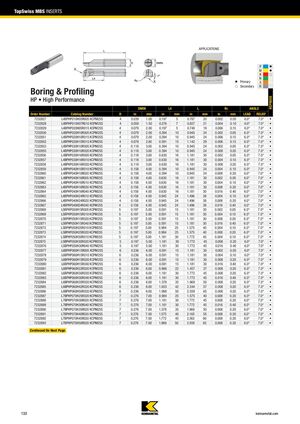

TopSwiss MBS INSERTS
Расточка и профилирование
ВП • Высокая производительность
| Номер заказа | Каталоговый номер | D | DMIN (дюйм) | DMIN (мм) | L4 (дюйм) | L4 (мм) | L (дюйм) | L (мм) | R (дюйм) | R (мм) | Угол наклона | Задний угол | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7232827 | L4BPHP010H05R005 KCPM25S | 4 | 0.039 | 1.00 | 0.197 | 5 | 0.787 | 20 | 0.002 | 0.05 | 6.0° | 7.0° | • |
| 7232828 | L4BPHP015H07R010 KCPM25S | 4 | 0.059 | 1.50 | 0.276 | 7 | 0.827 | 21 | 0.004 | 0.10 | 6.0° | 7.0° | • |
| 7232829 | L4BPHP020H05R015 KCPM25S | 4 | 0.079 | 2.00 | 0.197 | 5 | 0.748 | 19 | 0.006 | 0.15 | 6.0° | 7.0° | • |
| 7232830 | L4BPHP020H10R005 KCPM25S | 4 | 0.079 | 2.00 | 0.394 | 10 | 0.945 | 24 | 0.002 | 0.05 | 6.0° | 7.0° | • |
| 7232851 | L4BPHP020H10R015 KCPM25S | 4 | 0.079 | 2.00 | 0.394 | 10 | 0.945 | 24 | 0.006 | 0.15 | 6.0° | 7.0° | • |
| 7232852 | L4BPHP020H15R015 KCPM25S | 4 | 0.079 | 2.00 | 0.591 | 15 | 1.142 | 29 | 0.006 | 0.15 | 6.0° | 7.0° | • |
| 7232853 | L4BPHP030H10R005 KCPM25S | 4 | 0.118 | 3.00 | 0.394 | 10 | 0.945 | 24 | 0.002 | 0.05 | 6.0° | 7.0° | • |
| 7232855 | L4BPHP030H10R020 KCPM25S | 4 | 0.118 | 3.00 | 0.394 | 10 | 0.945 | 24 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232856 | L4BPHP030H16R005 KCPM25S | 4 | 0.118 | 3.00 | 0.630 | 16 | 1.181 | 30 | 0.002 | 0.05 | 6.0° | 7.0° | • |
| 7232857 | L4BPHP030H16R010 KCPM25S | 4 | 0.118 | 3.00 | 0.630 | 16 | 1.181 | 30 | 0.004 | 0.10 | 6.0° | 7.0° | • |
| 7232858 | L4BPHP030H16R020 KCPM25S | 4 | 0.118 | 3.00 | 0.630 | 16 | 1.181 | 30 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232859 | L4BPHP040H10R010 KCPM25S | 4 | 0.158 | 4.00 | 0.394 | 10 | 0.945 | 24 | 0.004 | 0.10 | 6.0° | 7.0° | • |
| 7232860 | L4BPHP040H10R020 KCPM25S | 4 | 0.158 | 4.00 | 0.394 | 10 | 0.945 | 24 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232861 | L4BPHP040H16R005 KCPM25S | 4 | 0.158 | 4.00 | 0.630 | 16 | 1.181 | 30 | 0.002 | 0.05 | 6.0° | 7.0° | • |
| 7232862 | L4BPHP040H16R010 KCPM25S | 4 | 0.158 | 4.00 | 0.630 | 16 | 1.181 | 30 | 0.004 | 0.10 | 6.0° | 7.0° | • |
| 7232863 | L4BPHP040H16R020 KCPM25S | 4 | 0.158 | 4.00 | 0.630 | 16 | 1.181 | 30 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232864 | L4BPHP040H16R040 KCPM25S | 4 | 0.158 | 4.00 | 0.630 | 16 | 1.181 | 30 | 0.016 | 0.40 | 6.0° | 7.0° | • |
| 7232865 | L4BPHP040H24R010 KCPM25S | 4 | 0.158 | 4.00 | 0.945 | 24 | 1.496 | 38 | 0.004 | 0.10 | 6.0° | 7.0° | • |
| 7232866 | L4BPHP040H24R020 KCPM25S | 4 | 0.158 | 4.00 | 0.945 | 24 | 1.496 | 38 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232867 | L4BPHP040H24R040 KCPM25S | 4 | 0.158 | 4.00 | 0.945 | 24 | 1.496 | 38 | 0.016 | 0.40 | 6.0° | 7.0° | • |
| 7232868 | L5BPHP050H15R005 KCPM25S | 5 | 0.197 | 5.00 | 0.591 | 15 | 1.181 | 30 | 0.002 | 0.05 | 6.0° | 7.0° | • |
| 7232869 | L5BPHP050H15R010 KCPM25S | 5 | 0.197 | 5.00 | 0.591 | 15 | 1.181 | 30 | 0.004 | 0.10 | 6.0° | 7.0° | • |
| 7232870 | L5BPHP050H15R020 KCPM25S | 5 | 0.197 | 5.00 | 0.591 | 15 | 1.181 | 30 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232871 | L5BPHP050H15R040 KCPM25S | 5 | 0.197 | 5.00 | 0.591 | 15 | 1.181 | 30 | 0.016 | 0.40 | 6.0° | 7.0° | • |
| 7232872 | L5BPHP050H25R010 KCPM25S | 5 | 0.197 | 5.00 | 0.984 | 25 | 1.575 | 40 | 0.004 | 0.10 | 6.0° | 7.0° | • |
| 7232873 | L5BPHP050H25R020 KCPM25S | 5 | 0.197 | 5.00 | 0.984 | 25 | 1.575 | 40 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232874 | L5BPHP050H30R010 KCPM25S | 5 | 0.197 | 5.00 | 1.181 | 30 | 1.772 | 45 | 0.004 | 0.10 | 6.0° | 7.0° | • |
| 7232875 | L5BPHP050H30R020 KCPM25S | 5 | 0.197 | 5.00 | 1.181 | 30 | 1.772 | 45 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232876 | L5BPHP050H30R040 KCPM25S | 5 | 0.197 | 5.00 | 1.181 | 30 | 1.772 | 45 | 0.016 | 0.40 | 6.0° | 7.0° | • |
| 7232877 | L6BPHP060H15R005 KCPM25S | 6 | 0.236 | 6.00 | 0.591 | 15 | 1.181 | 30 | 0.002 | 0.05 | 6.0° | 7.0° | • |
| 7232878 | L6BPHP060H15R010 KCPM25S | 6 | 0.236 | 6.00 | 0.591 | 15 | 1.181 | 30 | 0.004 | 0.10 | 6.0° | 7.0° | • |
| 7232879 | L6BPHP060H15R020 KCPM25S | 6 | 0.236 | 6.00 | 0.591 | 15 | 1.181 | 30 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232880 | L6BPHP060H15R040 KCPM25S | 6 | 0.236 | 6.00 | 0.591 | 15 | 1.181 | 30 | 0.016 | 0.40 | 6.0° | 7.0° | • |
| 7232881 | L6BPHP060H22R020 KCPM25S | 6 | 0.236 | 6.00 | 0.866 | 22 | 1.457 | 37 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232882 | L6BPHP060H30R020 KCPM25S | 6 | 0.236 | 6.00 | 1.181 | 30 | 1.772 | 45 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232883 | L6BPHP060H30R040 KCPM25S | 6 | 0.236 | 6.00 | 1.181 | 30 | 1.772 | 45 | 0.016 | 0.40 | 6.0° | 7.0° | • |
| 7232884 | L6BPHP060H35R020 KCPM25S | 6 | 0.236 | 6.00 | 1.378 | 35 | 1.969 | 50 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232885 | L6BPHP060H42R020 KCPM25S | 6 | 0.236 | 6.00 | 1.653 | 42 | 2.244 | 57 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232886 | L6BPHP060H50R020 KCPM25S | 6 | 0.236 | 6.00 | 1.968 | 50 | 2.559 | 65 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232887 | L7BPHP070H25R020 KCPM25S | 7 | 0.276 | 7.00 | 0.984 | 25 | 1.575 | 40 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232888 | L7BPHP070H30R020 KCPM25S | 7 | 0.276 | 7.00 | 1.181 | 30 | 1.772 | 45 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232889 | L7BPHP070H30R040 KCPM25S | 7 | 0.276 | 7.00 | 1.181 | 30 | 1.772 | 45 | 0.016 | 0.40 | 6.0° | 7.0° | • |
| 7232890 | L7BPHP070H35R020 KCPM25S | 7 | 0.276 | 7.00 | 1.378 | 35 | 1.969 | 50 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232891 | L7BPHP070H40R020 KCPM25S | 7 | 0.276 | 7.00 | 1.575 | 40 | 2.165 | 55 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232892 | L7BPHP070H45R020 KCPM25S | 7 | 0.276 | 7.00 | 1.772 | 45 | 2.362 | 60 | 0.008 | 0.20 | 6.0° | 7.0° | • |
| 7232893 | L7BPHP070H50R020 KCPM25S | 7 | 0.276 | 7.00 | 1.969 | 50 | 2.559 | 65 | 0.008 | 0.20 | 6.0° | 7.0° | • |
Продолжение на следующей странице
