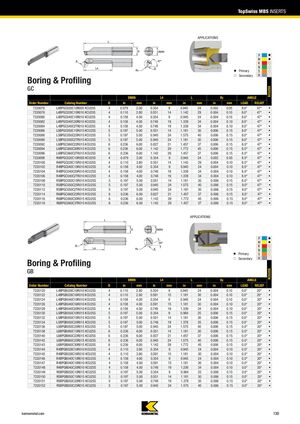

TopSwiss MBS INSERTS
Области применения
Растачивание и профилирование
Марка: KCU25S | Тип: GC
| Номер заказа | Номер каталога | D | DMIN | L4 | L | R | Угол подъема | Угол заднего плана | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| дюйм | мм | дюйм | мм | дюйм | мм | дюйм | мм | дюйм | мм | ||||
| 7220076 | L4BPGC020C10R005 | 0.079 | 2.00 | 0.354 | 9 | 0.945 | 24 | 0.002 | 0.05 | 8.0° | 47° | ||
| 7220078 | L4BPGC028C15R010 | 0.110 | 2.80 | 0.551 | 14 | 1.142 | 29 | 0.004 | 0.10 | 8.0° | 47° | ||
| 7220080 | L4BPGC040C10R010 | 0.158 | 4.00 | 0.354 | 9 | 0.945 | 24 | 0.004 | 0.10 | 8.0° | 47° | ||
| 7220082 | L4BPGC040C20R010 | 0.158 | 4.00 | 0.748 | 19 | 1.339 | 34 | 0.004 | 0.10 | 8.0° | 47° | ||
| 7220084 | L4BPGC040C2TR010 | 0.158 | 4.00 | 0.748 | 19 | 1.339 | 34 | 0.004 | 0.10 | 8.0° | 47° | ||
| 7220086 | L5BPGC050C15R015 | 0.197 | 5.00 | 0.551 | 14 | 1.181 | 30 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220088 | L5BPGC050C25R015 | 0.197 | 5.00 | 0.945 | 24 | 1.575 | 40 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220090 | L5BPGC050C2TR015 | 0.197 | 5.00 | 0.945 | 24 | 1.181 | 30 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220092 | L6BPGC060C22R015 | 0.236 | 6.00 | 0.827 | 21 | 1.457 | 37 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220094 | L6BPGC060C30R015 | 0.236 | 6.00 | 1.142 | 29 | 1.772 | 45 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220096 | L6BPGC060C3TR015 | 0.236 | 6.00 | 1.142 | 29 | 1.457 | 37 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220098 | R4BPGC020C10R005 | 0.079 | 2.00 | 0.354 | 9 | 0.945 | 24 | 0.002 | 0.05 | 8.0° | 47° | ||
| 7220100 | R4BPGC028C15R010 | 0.110 | 2.80 | 0.551 | 14 | 1.142 | 29 | 0.004 | 0.10 | 8.0° | 47° | ||
| 7220102 | R4BPGC040C10R010 | 0.158 | 4.00 | 0.354 | 9 | 0.945 | 24 | 0.004 | 0.10 | 8.0° | 47° | ||
| 7220104 | R4BPGC040C20R010 | 0.158 | 4.00 | 0.748 | 19 | 1.339 | 34 | 0.004 | 0.10 | 8.0° | 47° | ||
| 7220106 | R4BPGC040C2TR010 | 0.158 | 4.00 | 0.748 | 19 | 1.339 | 34 | 0.004 | 0.10 | 8.0° | 47° | ||
| 7220108 | R5BPGC050C15R015 | 0.197 | 5.00 | 0.551 | 14 | 1.181 | 30 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220110 | R5BPGC050C25R015 | 0.197 | 5.00 | 0.945 | 24 | 1.575 | 40 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220112 | R5BPGC050C2TR015 | 0.197 | 5.00 | 0.945 | 24 | 1.181 | 30 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220114 | R6BPGC060C22R015 | 0.236 | 6.00 | 0.827 | 21 | 1.457 | 37 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220116 | R6BPGC060C30R015 | 0.236 | 6.00 | 1.142 | 29 | 1.772 | 45 | 0.006 | 0.15 | 8.0° | 47° | ||
| 7220118 | R6BPGC060C3TR015 | 0.236 | 6.00 | 1.142 | 29 | 1.457 | 37 | 0.006 | 0.15 | 8.0° | 47° | ||
Марка: KCU25S | Тип: GB
| Номер заказа | Номер каталога | D | DMIN | L4 | L | R | Угол подъема | Угол заднего плана | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| дюйм | мм | дюйм | мм | дюйм | мм | дюйм | мм | дюйм | мм | ||||
| 7220120 | L4BPGB028C10R010 | 0.110 | 2.80 | 0.354 | 9 | 0.945 | 24 | 0.004 | 0.10 | 0.0° | 20° | ||
| 7220122 | L4BPGB028C16R010 | 0.110 | 2.80 | 0.591 | 15 | 1.181 | 30 | 0.004 | 0.10 | 0.0° | 20° | ||
| 7220124 | L4BPGB040C10R010 | 0.158 | 4.00 | 0.354 | 9 | 0.945 | 24 | 0.004 | 0.10 | 0.0° | 20° | ||
| 7220126 | L4BPGB040C16R010 | 0.158 | 4.00 | 0.591 | 15 | 1.181 | 30 | 0.004 | 0.10 | 0.0° | 20° | ||
| 7220128 | L4BPGB040C20R010 | 0.158 | 4.00 | 0.748 | 19 | 1.339 | 34 | 0.004 | 0.10 | 0.0° | 20° | ||
| 7220130 | L5BPGB050C10R015 | 0.197 | 5.00 | 0.354 | 9 | 0.984 | 25 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220132 | L5BPGB050C15R015 | 0.197 | 5.00 | 0.551 | 14 | 1.181 | 30 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220134 | L5BPGB050C20R015 | 0.197 | 5.00 | 0.748 | 19 | 1.378 | 35 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220136 | L5BPGB050C25R015 | 0.197 | 5.00 | 0.945 | 24 | 1.575 | 40 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220138 | L6BPGB060C15R015 | 0.236 | 6.00 | 0.551 | 14 | 1.181 | 30 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220140 | L6BPGB060C22R015 | 0.236 | 6.00 | 0.827 | 21 | 1.457 | 37 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220142 | L6BPGB060C25R015 | 0.236 | 6.00 | 0.945 | 24 | 1.575 | 40 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220143 | L6BPGB060C30R015 | 0.236 | 6.00 | 1.142 | 29 | 1.772 | 45 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220144 | R4BPGB028C10R010 | 0.110 | 2.80 | 0.354 | 9 | 0.945 | 24 | 0.004 | 0.10 | 0.0° | 20° | ||
| 7220145 | R4BPGB028C16R010 | 0.110 | 2.80 | 0.591 | 15 | 1.181 | 30 | 0.004 | 0.10 | 0.0° | 20° | ||
| 7220146 | R4BPGB040C10R010 | 0.158 | 4.00 | 0.354 | 9 | 0.945 | 24 | 0.004 | 0.10 | 0.0° | 20° | ||
| 7220147 | R4BPGB040C16R010 | 0.158 | 4.00 | 0.591 | 15 | 1.181 | 30 | 0.004 | 0.10 | 0.0° | 20° | ||
| 7220148 | R4BPGB040C20R010 | 0.158 | 4.00 | 0.748 | 19 | 1.339 | 34 | 0.004 | 0.10 | 0.0° | 20° | ||
| 7220149 | R5BPGB050C10R015 | 0.197 | 5.00 | 0.354 | 9 | 0.984 | 25 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220150 | R5BPGB050C15R015 | 0.197 | 5.00 | 0.551 | 14 | 1.181 | 30 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220151 | R5BPGB050C20R015 | 0.197 | 5.00 | 0.748 | 19 | 1.378 | 35 | 0.006 | 0.15 | 0.0° | 20° | ||
| 7220152 | R5BPGB050C25R015 | 0.197 | 5.00 | 0.945 | 24 | 1.575 | 40 | 0.006 | 0.15 | 0.0° | 20° | ||
