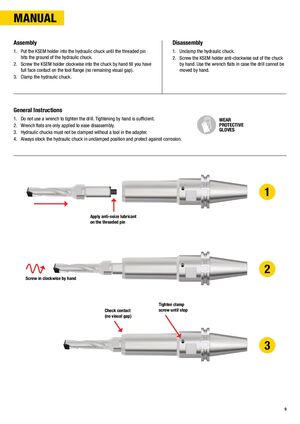

MANUAL Assembly Disassembly 1. Put the KSEM holder into the hydraulic chuck until the threaded pin 1. Unclamp the hydraulic chuck. hits the ground of the hydraulic chuck. 2. Screw the KSEM holder anti-clockwise out of the chuck 2. Screw the KSEM holder clockwise into the chuck by hand till you have by hand. Use the wrench flats in case the drill cannot be full face contact on the tool flange (no remaining visual gap). moved by hand. 3. Clamp the hydraulic chuck. General Instructions 1. Do not use a wrench to tighten the drill. Tightening by hand is sufficient. WEAR 2. Wrench flats are only applied to ease disassembly. PROTECTIVE 3. Hydraulic chucks must not be clamped without a tool in the adapter. GLOVES 4. Always stock the hydraulic chuck in unclamped position and protect against corrosion. 1 Apply anti-seize lubricant on the threaded pin 2 Screw in clockwise by hand Tighten clamp Check contact screw until stop (no visual gap) 3 9
