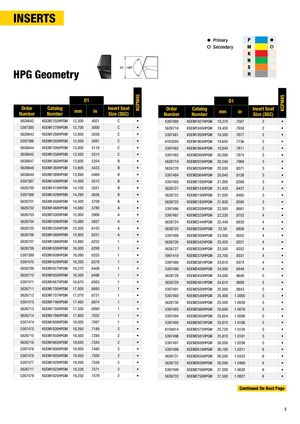

Модульные сверлильные системы линейки KSEM ST Line Kennametal 2024 - страница 5

INSERTS • Primary P • • Secondary M • K N S HPG Geometry H KCPM45 KCPM45 D1 D1 Order Catalog Insert Seat Order Catalog Insert Seat mm in mm in Number Number Size (SSC) Number Number Size (SSC) 5626642 KSEM1250HPGM 12,500 .4921 C • 5397480 KSEM1927HPGM 19,270 .7587 2 • 5397385 KSEM1270HPGM 12,700 .5000 C • 5626718 KSEM1945HPGM 19,450 .7658 2 • 5626643 KSEM1280HPGM 12,800 .5039 C • 5397481 KSEM1950HPGM 19,500 .7677 2 • 5397386 KSEM1293HPGM 12,930 .5091 C • 6163505 KSEM1965HPGM 19,650 .7736 2 • 5626644 KSEM1300HPGM 13,000 .5118 C • 5397482 KSEM1984HPGM 19,840 .7811 2 • 5626645 KSEM1350HPGM 13,500 .5315 C • 5397483 KSEM2000HPGM 20,000 .7874 3 • 5626647 KSEM1360HPGM 13,600 .5354 B • 5626719 KSEM2024HPGM 20,240 .7969 3 • 5626648 KSEM1380HPGM 13,800 .5433 B • 5626720 KSEM2050HPGM 20,500 .8071 3 • 5626649 KSEM1389HPGM 13,890 .5469 B • 5397484 KSEM2064HPGM 20,640 .8126 3 • 5397387 KSEM1400HPGM 14,000 .5512 B • 5397485 KSEM2100HPGM 21,000 .8268 3 • 5626700 KSEM1410HPGM 14,100 .5551 B • 5626721 KSEM2143HPGM 21,430 .8437 3 • 5397388 KSEM1429HPGM 14,290 .5626 B • 5626722 KSEM2150HPGM 21,500 .8465 3 • 5626701 KSEM1450HPGM 14,500 .5709 B • 5626723 KSEM2183HPGM 21,830 .8595 3 • 5626702 KSEM1468HPGM 14,680 .5780 A • 5397486 KSEM2200HPGM 22,000 .8661 3 • 5626703 KSEM1500HPGM 15,000 .5906 A • 5397487 KSEM2223HPGM 22,230 .8752 4 • 5626704 KSEM1508HPGM 15,080 .5937 A • 5626724 KSEM2244HPGM 22,440 .8835 4 • 5626705 KSEM1550HPGM 15,500 .6102 A • 5626725 KSEM2250HPGM 22,50 .8858 4 • 5626706 KSEM1580HPGM 15,800 .6221 A • 5397488 KSEM2300HPGM 23,000 .9055 4 • 5626707 KSEM1588HPGM 15,880 .6252 1 • 5626726 KSEM2342HPGM 23,420 .9221 4 • 5626708 KSEM1600HPGM 16,000 .6299 1 • 5626727 KSEM2350HPGM 23,500 .9252 4 • 5397389 KSEM1609HPGM 16,090 .6335 1 • 5991410 KSEM2370HPGM 23,700 .9331 4 • 5397470 KSEM1620HPGM 16,200 .6378 1 • 5397489 KSEM2381HPGM 23,810 .9374 4 • 5626709 KSEM1627HPGM 16,270 .6406 1 • 5397490 KSEM2400HPGM 24,000 .9449 4 • 5626710 KSEM1650HPGM 16,500 .6496 1 • 5626728 KSEM2450HPGM 24,500 .9646 5 • 5397471 KSEM1667HPGM 16,670 .6563 1 • 5626729 KSEM2461HPGM 24,610 .9689 5 • 5626711 KSEM1700HPGM 17,000 .6693 1 • 5397491 KSEM2500HPGM 25,000 .9843 5 • 5626712 KSEM1707HPGM 17,070 .6721 1 • 5397492 KSEM2540HPGM 25,400 1.0000 5 • 5397473 KSEM1746HPGM 17,460 .6874 1 • 5626730 KSEM2550HPGM 25,500 1.0039 5 • 5626713 KSEM1750HPGM 17,500 .6890 1 • 5397493 KSEM2560HPGM 25,600 1.0079 5 • 5626714 KSEM1786HPGM 17,860 .7032 1 • 5397494 KSEM2565HPGM 25,654 1.0098 5 • 5397474 KSEM1800HPGM 18,000 .7087 1 • 5397495 KSEM2567HPGM 25,670 1.0106 5 • 5397475 KSEM1826HPGM 18,260 .7189 2 • 6194814 KSEM2572HPGM 25,720 1.0126 5 • 5626715 KSEM1850HPGM 18,500 .7284 2 • 5397496 KSEM2581HPGM 25,810 1.0161 5 • 5626716 KSEM1865HPGM 18,650 .7343 2 • 5397497 KSEM2600HPGM 26,000 1.0236 5 • 5397476 KSEM1900HPGM 19,000 .7480 2 • 5397498 KSEM2619HPGM 26,190 1.0311 6 • 5397478 KSEM1905HPGM 19,050 .7500 2 • 5626731 KSEM2650HPGM 26,500 1.0433 6 • 5397477 KSEM1920HPGM 19,200 .7559 2 • 5626732 KSEM2659HPGM 26,590 1.0469 6 • 5626717 KSEM1923HPGM 19,228 .7571 2 • 5397499 KSEM2700HPGM 27,000 1.0630 6 • 5397479 KSEM1925HPGM 19,250 .7579 2 • 5626733 KSEM2750HPGM 27,500 1.0827 6 • Continued On Next Page 5
