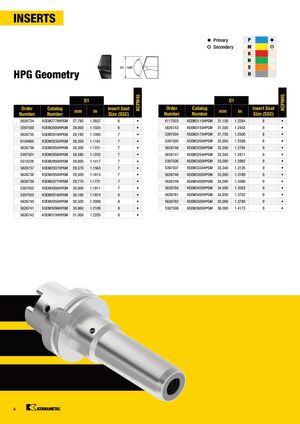

INSERTS • Primary P • • Secondary M • K N S HPG Geometry H KCPM45 KCPM45 D1 D1 Order Catalog Insert Seat Order Catalog Insert Seat mm in mm in Number Number Size (SSC) Number Number Size (SSC) 5626734 KSEM2778HPGM 27,780 1.0937 6 • 6117023 KSEM3115HPGM 31,150 1.2264 8 • 5397500 KSEM2800HPGM 28,000 1.1024 6 • 5626743 KSEM3150HPGM 31,500 1.2402 8 • 5626735 KSEM2818HPGM 28,180 1.1095 7 • 5397504 KSEM3175HPGM 31,750 1.2500 8 • 6104860 KSEM2835HPGM 28,350 1.1161 7 • 5397505 KSEM3200HPGM 32,000 1.2598 8 • 5626736 KSEM2850HPGM 28,500 1.1221 7 • 5626746 KSEM3250HPGM 32,500 1.2795 9 • 5397501 KSEM2858HPGM 28,580 1.1252 7 • 5626747 KSEM3254HPGM 32,540 1.2811 9 • 5515226 KSEM2900HPGM 29,000 1.1417 7 • 5397506 KSEM3300HPGM 33,000 1.2992 9 • 5626737 KSEM2937HPGM 29,370 1.1563 7 • 5397507 KSEM3334HPGM 33,340 1.3126 9 • 5626738 KSEM2950HPGM 29,500 1.1614 7 • 5626748 KSEM3350HPGM 33,500 1.3189 9 • 5626739 KSEM2977HPGM 29,770 1.1721 7 • 5626749 KSEM3400HPGM 34,000 1.3386 9 • 5397502 KSEM3000HPGM 30,000 1.1811 7 • 5626760 KSEM3450HPGM 34,500 1.3583 9 • 5397503 KSEM3016HPGM 30,160 1.1874 8 • 5626761 KSEM3493HPGM 34,930 1.3752 9 • 5626740 KSEM3050HPGM 30,500 1.2008 8 • 5626762 KSEM3500HPGM 35,000 1.3780 9 • 5626741 KSEM3096HPGM 30,960 1.2189 8 • 5397508 KSEM3600HPGM 36,000 1.4173 9 • 5626742 KSEM3100HPGM 31,000 1.2205 8 • 6
