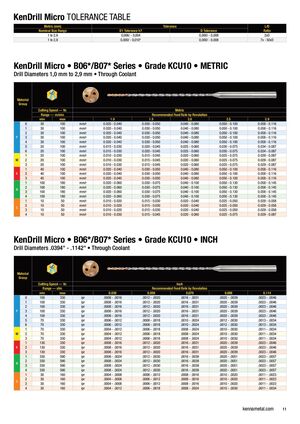

Цельные твердосплавные микросверла линейки KenDrill Micro Kennametal 2025 - страница 11

KenDrill Micro TOLERANCE TABLE Metric (mm) Tolerance L/D Nominal Size Range D1 Tolerance h7 D Tolerance Ratio 1 to 2,9 0,006/ - 0,004 0,000/ - 0,008 2xD 1 to 2,9 0,000/ - 0,010* 0,000/ - 0,008 7x - 50xD KenDrill Micro • B06*/B07* Series • Grade KCU10 • METRIC Drill Diameters 1,0 mm to 2,9 mm • Through Coolant Material Group Cutting Speed — Vc Metric Range — m/min Recommended Feed Rate by Revolution min max 1.0 1.5 2.0 2.5 2.9 0 30 100 mm/r 0.020 - 0.040 0.030 - 0.050 0.040 - 0.080 0.050 - 0.100 0.058 - 0.116 1 30 100 mm/r 0.020 - 0.040 0.030 - 0.050 0.040 - 0.080 0.050 - 0.100 0.058 - 0.116 2 30 100 mm/r 0.020 - 0.040 0.030 - 0.050 0.040 - 0.080 0.050 - 0.100 0.058 - 0.116 P 3 30 100 mm/r 0.020 - 0.040 0.030 - 0.050 0.040 - 0.080 0.050 - 0.100 0.058 - 0.116 4 30 100 mm/r 0.020 - 0.040 0.030 - 0.050 0.040 - 0.080 0.050 - 0.100 0.058 - 0.116 5 20 100 mm/r 0.015 - 0.030 0.020 - 0.045 0.025 - 0.060 0.030 - 0.075 0.034 - 0.087 6 20 100 mm/r 0.015 - 0.030 0.020 - 0.045 0.025 - 0.060 0.030 - 0.075 0.034 - 0.087 1 20 100 mm/r 0.010 - 0.030 0.015 - 0.045 0.020 - 0.060 0.025 - 0.075 0.029 - 0.087 M 2 20 100 mm/r 0.010 - 0.030 0.015 - 0.045 0.020 - 0.060 0.025 - 0.075 0.029 - 0.087 3 20 100 mm/r 0.010 - 0.030 0.015 - 0.045 0.020 - 0.060 0.025 - 0.075 0.029 - 0.087 1 40 100 mm/r 0.020 - 0.040 0.030 - 0.050 0.040 - 0.080 0.050 - 0.100 0.058 - 0.116 K 2 40 100 mm/r 0.020 - 0.040 0.030 - 0.050 0.040 - 0.080 0.050 - 0.100 0.058 - 0.116 3 40 100 mm/r 0.020 - 0.040 0.030 - 0.050 0.040 - 0.080 0.050 - 0.100 0.058 - 0.116 1 100 180 mm/r 0.020 - 0.060 0.030 - 0.075 0.040 - 0.100 0.050 - 0.130 0.058 - 0.145 2 100 180 mm/r 0.020 - 0.060 0.030 - 0.075 0.040 - 0.100 0.050 - 0.130 0.058 - 0.145 N 3 100 180 mm/r 0.020 - 0.060 0.030 - 0.075 0.040 - 0.100 0.050 - 0.130 0.058 - 0.145 4 100 180 mm/r 0.020 - 0.060 0.030 - 0.075 0.040 - 0.100 0.050 - 0.130 0.058 - 0.145 1 10 50 mm/r 0.010 - 0.020 0.015 - 0.030 0.020 - 0.040 0.025 - 0.050 0.029 - 0.058 2 10 50 mm/r 0.010 - 0.020 0.015 - 0.030 0.020 - 0.040 0.025 - 0.050 0.029 - 0.058 S 3 10 50 mm/r 0.010 - 0.020 0.015 - 0.030 0.020 - 0.040 0.025 - 0.050 0.029 - 0.058 4 10 50 mm/r 0.010 - 0.030 0.015 - 0.045 0.020 - 0.060 0.025 - 0.075 0.029 - 0.087 KenDrill Micro • B06*/B07* Series • Grade KCU10 • INCH Drill Diameters .0394" - .1142" • Through Coolant Material Group Cutting Speed — Vc Inch Range — sfm Recommended Feed Rate by Revolution min max 0.039 0.059 0.079 0.098 0.114 0 100 330 ipr .0008 - .0016 .0012 - .0020 .0016 - .0031 .0020 - .0039 .0023 - .0046 1 100 330 ipr .0008 - .0016 .0012 - .0020 .0016 - .0031 .0020 - .0039 .0023 - .0046 2 100 330 ipr .0008 - .0016 .0012 - .0020 .0016 - .0031 .0020 - .0039 .0023 - .0046 P 3 100 330 ipr .0008 - .0016 .0012 - .0020 .0016 - .0031 .0020 - .0039 .0023 - .0046 4 100 330 ipr .0008 - .0016 .0012 - .0020 .0016 - .0031 .0020 - .0039 .0023 - .0046 5 70 330 ipr .0006 - .0012 .0008 - .0018 .0010 - .0024 .0012 - .0030 .0013 - .0034 6 70 330 ipr .0006 - .0012 .0008 - .0018 .0010 - .0024 .0012 - .0030 .0013 - .0034 1 70 330 ipr .0004 - .0012 .0006 - .0018 .0008 - .0024 .0010 - .0030 .0011 - .0034 M 2 70 330 ipr .0004 - .0012 .0006 - .0018 .0008 - .0024 .0010 - .0030 .0011 - .0034 3 70 330 ipr .0004 - .0012 .0006 - .0018 .0008 - .0024 .0010 - .0030 .0011 - .0034 1 130 330 ipr .0008 - .0016 .0012 - .0020 .0016 - .0031 .0020 - .0039 .0023 - .0046 K 2 130 330 ipr .0008 - .0016 .0012 - .0020 .0016 - .0031 .0020 - .0039 .0023 - .0046 3 130 330 ipr .0008 - .0016 .0012 - .0020 .0016 - .0031 .0020 - .0039 .0023 - .0046 1 330 590 ipr .0008 - .0024 .0012 - .0030 .0016 - .0039 .0020 - .0051 .0023 - .0057 2 330 590 ipr .0008 - .0024 .0012 - .0030 .0016 - .0039 .0020 - .0051 .0023 - .0057 N 3 330 590 ipr .0008 - .0024 .0012 - .0030 .0016 - .0039 .0020 - .0051 .0023 - .0057 4 330 590 ipr .0008 - .0024 .0012 - .0030 .0016 - .0039 .0020 - .0051 .0023 - .0057 1 30 160 ipr .0004 - .0008 .0006 - .0012 .0008 - .0016 .0010 - .0020 .0011 - .0023 2 30 160 ipr .0004 - .0008 .0006 - .0012 .0008 - .0016 .0010 - .0020 .0011 - .0023 S 3 30 160 ipr .0004 - .0008 .0006 - .0012 .0008 - .0016 .0010 - .0020 .0011 - .0023 4 30 160 ipr .0004 - .0012 .0006 - .0018 .0008 - .0024 .0010 - .0030 .0011 - .0034 kennametal.com 11
