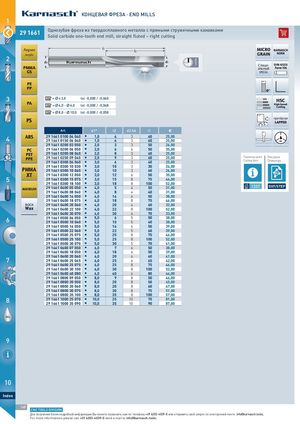

29 1661291661 Однозубая фреза из твердосплавного металла с прямыми стружечными канавками
Solid carbide one-tooth end mill, straight fluted – right cutting
| MICRO GRAIN | KARNASCH NORM | |
| SPECIAL Специ- альный | DIN 6535 Form HA | |
| HSC High-Speed- Cutting | ||
| притёртая | ||
| Параметры Cutting da | резки ta Ри Dr | сунки awings |
| 13 | D 37 | XF/STEP |
| Акрил | |||||||
| Acrylic | |||||||
| PMMA | |||||||
| GS | Gelapt | ||||||
| PE PP | |||||||
| d1=≤ 3,0 to | l -0, | 000 / -0,04 | 0 | ||||
| PA | d1=4,0 -6,0 to | l -0, | 000 / -0,04 | 8 | |||
| d1=8,0 -10,0 to | l -0, | 000 / -0,05 | 8 | ||||
| PS | |||||||
| Art. | d1 | l2 | d2 h6 | l1 | € | ||
| ABS | 291661010004040 29 61 0 04 | I | 1,0 | 4 | 3 | 40 | 25,00 |
| 291661015006040 29 61 0 04 | I | 1,5 | 6 | 3 | 40 | 25,00 | |
| 291661020003050 29 61 0 05 | I | 2,0 | 3 | 3 | 50 | 26,00 | |
| PC | 291661020006050 29 61 0 05 | I | 2,0 | 6 | 6 | 50 | 35,00 |
| PET | 291661020008040 29 61 0 04 | I | 2,0 | 8 | 3 | 40 | 25,00 |
| PPE | 291661025009040 29 61 0 04 | I | 2,5 | 9 | 3 | 40 | 25,00 |
| 291661030006040 29 61 0 04 | I | 3,0 | 6 | 3 | 40 | 25,00 | |
| 291661030010030 29 61 0 03 | I | 3,0 | 10 | 3 | 30 | 24,00 | |
| PMMA | 291661030010060 29 61 0 06 | I | 3,0 | 10 | 3 | 60 | 26,00 |
| XT | 291661030012050 29 61 0 05 | I | 3,0 | 12 | 6 | 50 | 35,00 |
| 291661030015075 29 61 0 07 | I | 3,0 | 15 | 8 | 75 | 46,00 | |
| 291661030018100 29 61 0 10 | I | 3,0 | 18 | 8 | 100 | 52,00 | |
| MAKROLON | 291661040005050 29 61 0 05 | I | 4,0 | 5 | 4 | 50 | 31,00 |
| 291661040008040 29 61 0 04 | I | 4,0 | 8 | 4 | 40 | 31,00 | |
| 291661040014050 29 61 0 05 | I | 4,0 | 14 | 6 | 50 | 38,00 | |
| 291661040018075 29 61 0 07 | I | 4,0 | 18 | 8 | 75 | 46,00 | |
| воск | 291661040020060 29 61 0 06 | I | 4,0 | 20 | 4 | 60 | 32,00 |
| Wax | 291661040022100 29 61 0 10 | I | 4,0 | 22 | 8 | 100 | 52,00 |
| 291661040030070 29 61 0 07 | I | 4,0 | 30 | 4 | 70 | 33,00 | |
| 291661050006050 29 61 0 05 | I | 5,0 | 6 | 5 | 50 | 38,00 | |
| 291661050010040 29 61 0 04 | I | 5,0 | 10 | 5 | 40 | 38,00 | |
| 291661050016050 29 61 0 05 | I | 5,0 | 16 | 6 | 50 | 39,00 | |
| 291661050022060 29 61 0 06 | I | 5,0 | 22 | 5 | 60 | 39,00 | |
| 291661050025075 29 61 0 07 | I | 5,0 | 25 | 8 | 75 | 46,00 | |
| 291661050025100 29 61 0 10 | I | 5,0 | 25 | 8 | 100 | 52,00 | |
| 291661050030070 29 61 0 07 | I | 5,0 | 30 | 5 | 70 | 41,00 | |
| 291661060007050 29 61 0 05 | I | 6,0 | 7 | 6 | 50 | 38,00 | |
| 291661060018050 29 61 0 05 | I | 6,0 | 18 | 6 | 50 | 39,00 | |
| 291661060020060 29 61 0 06 | I | 6,0 | 20 | 6 | 60 | 41,00 | |
| 291661060025065 29 61 0 06 | I | 6,0 | 25 | 6 | 65 | 42,00 | |
| 291661060025075 29 61 0 07 | I | 6,0 | 25 | 8 | 75 | 46,00 | |
| 291661060030100 29 61 0 10 | I | 6,0 | 30 | 8 | 100 | 52,00 | |
| 291661060040080 29 61 0 08 | I | 6,0 | 40 | 6 | 80 | 44,00 | |
| 291661080009050 29 61 0 05 | I | 8,0 | 9 | 8 | 50 | 46,00 | |
| 291661080020050 29 61 0 05 | I | 8,0 | 20 | 8 | 50 | 45,00 | |
| 291661080020060 29 61 0 06 | I | 8,0 | 20 | 8 | 60 | 47,00 | |
| 291661080030075 29 61 0 07 | I | 8,0 | 30 | 8 | 75 | 51,00 | |
| 291661080035100 29 61 0 10 | I | 8,0 | 35 | 8 | 100 | 57,00 | |
| 291661100025070 29 61 0 07 | I | 10,0 | 25 | 10 | 70 | 81,00 | |
| 291661100035090 29 61 0 09 | I | 10,0 | 35 | 10 | 90 | 87,00 |
Z
OIL
