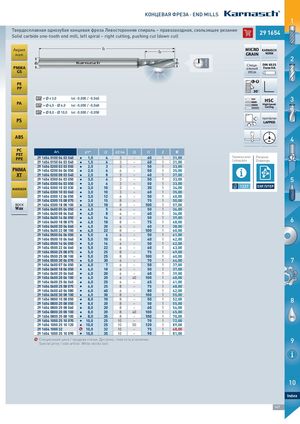

Основной каталог Karnasch 2021 - страница 145

КОНЦЕВАЯ ФРЕЗА · END MILLS
1
Твердосплавная однозубая концевая фреза Левосторонняя спираль – правозаходная, скользящее резание
Solid carbide one-tooth end mill, left spiral – right cutting, pushing cut (down cut)
29
291654
1654
Акрил MICRO KARNASCH
Acrylic GRAIN NORM
Z 2
1 Специ- DIN 6535
PMMA альный Form HA
GS Gelapt SPECIAL
L-R
PE
PP
30°

PA
d1* =  ≤ 3,0 tol -0,000 / -0,040
HSC 3
d1* =  4,0 -  6,0 tol -0,000 / -0,048 High-Speed-
Cutting
d1* =  8,0 -  10,0 tol -0,000 / -0,058
притёртая
PS
ABS
4
PC Art. d1* l2 d2 h6 l3 l1 Z €
PET Параметры резки Рисунки
PPE 29
29165401000403040
1654 0100 04 03 040 I 1,0 4 3 – 40 1 31,00
Cutting data Drawings
29 1654 0150 06 03 040
29165401500603040 I 1,5 6 3 – 40 1 31,00
29165402000303050
29 1654 0200 03 03 050 I 2,0 3 3 – 50 1 33,00
PMMA 29 1654 0200 06 06 050
29165402000606050 I 2,0 6 6 – 50 1 35,00
XT 29 1654 0200 08 03 040
29165402000803040 I 2,0 8 3 – 40 1 37,00
29165403000403050
29
29
1654 0300 04 03 050
1654 0300 06 03 050
29165403000603050
I
I
3,0
3,0
4
6
3
3
–
–
50
50
1
1
33,00
33,00
5
29 1654 0300 10 03 030
29165403001003030 I 3,0 10 3 – 30 1 34,00 1337 DXF/STEP
MAKROLON
29 1654 0300 10 03 060
29165403001003060 I 3,0 10 3 – 60 1 35,00
29 1654 0300 12 06 050
29165403001206050 I 3,0 12 6 – 50 1 40,00
29 1654 0300 15 08 075
29165403001508075 I 3,0 15 8 – 75 1 50,00
воск 29 1654 0300 18 08 100
29165403001808100 I 3,0 18 8 – 100 1 57,00
Wax 29165404000504050
29 1654 0400 05 04 050 I 4,0 5 4 – 50 1 36,00
29 1654 0400 08 04 040
29165404000804040 I 4,0 8 4 – 40 1 36,00
29 1654 0400 14 06 050
29165404001406050 I 4,0 14 6 – 50 1 39,00
29 1654 0400 18 08 075
29165404001808075 I 4,0 18 8 – 75 1 48,00 6
29 1654 0400 20 04 060
29165404002004060 I 4,0 20 4 – 60 1 38,00
29 1654 0400 22 08 100
29165404002208100 I 4,0 22 8 – 100 1 60,00
29165405000606050
29 1654 0500 06 06 050 I 5,0 6 6 – 50 1 41,00
29 1654 0500 10 06 040
29165405001006040 I 5,0 10 6 – 40 1 42,00
29 1654 0500 16 06 050
29165405001606050 I 5,0 16 6 – 50 1 42,00
29 1654 0500 22 06 060
29165405002206060 I 5,0 22 6 – 60 1 43,00
29 1654 0500 25 08 075
29165405002508075 I 5,0 25 8 – 75 1 49,00
29 1654 0500 25 08 100
29165405002508100 I 5,0 25 8 – 100 1 60,00
29 1654 0500 30 06 070
29165405003006070 I 5,0 30 6 – 70 1 44,00 7
29165406000706050
29 1654 0600 07 06 050 I 6,0 7 6 – 50 1 37,00
29 1654 0600 18 06 050
29165406001806050 I 6,0 18 6 – 50 1 37,00 MAC
29 1654 0600 20 06 060
29165406002006060 I 6,0 20 6 – 60 1 39,00

HI
NES
29 1654 0600 20 06 100
29165406002006100 I 6,0 20 6 40 100 1 40,00
29 1654 0600 25 06 065
29165406002506065 I 6,0 25 6 – 65 1 41,00
29 1654 0600 25 08 075
29165406002508075 I 6,0 25 8 – 75 1 48,00
29 1654 0600 40 06 080
29165406004006080 I 6,0 40 6 – 80 1 42,00
29 1654 0600 30 08 100
29165406003008100 I 6,0 30 8 – 100 1 55,00
29165408001008050
29
29
1654 0800 10 08 050
1654 0800 20 08 050
29165408002008050
I
I
8,0
8,0
10
20
8
8
–
–
50
50
1
1
52,00
55,00
8
29 1654 0800 20 08 060
29165408002008060 I 8,0 20 8 – 60 1 56,00
29 1654 0800 20 08 100
29165408002008100 I 8,0 20 8 40 100 1 65,00
29 1654 0800 35 08 100
29165408003508100 I 8,0 35 8 – 100 1 70,00 OIL
29165410002510070
29 1654 1000 25 10 070 I 10,0 25 10 – 70 1 72,00
29 1654 1000 25 10 120
29165410002510120 I 10,0 25 10 50 120 1 89,00
29 1654 1000 32
291654100032 % 10,0 32 10 – 75 1 48,00
29 1654 1000 35 10 090
29165410003510090 I 10,0 35 10 – 90 1 81,00
%
Специальная цена / продажа статьи. Доступно, пока есть в наличии.
Special price / sale article. While stocks last. 9
