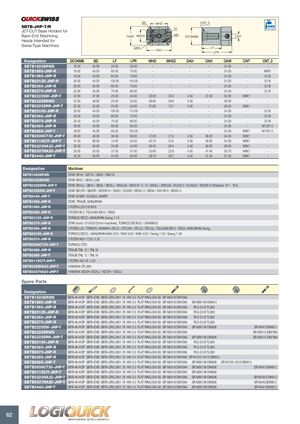

SBTB-JHP-T/R
Державки JET-CUT для обработки торцевых канавок на задней операции, предназначенные для швейцарских автоматических токарных станков
| Обозначение | DCONMS | BD | LF | LPR | MHD | MHD2 | DAH | OAH | OAW | CNT | CNT_2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SBTB1620SRWD | 16.00 | 45.00 | 20.00 | 30.00 | — | — | — | — | 24.00 | — | — |
| SBTB1660-JHP-R | 16.00 | 45.00 | 60.00 | 70.00 | — | — | — | — | 24.00 | — | M8X1 |
| SBTB1960-JHP-R | 19.05 | 45.00 | 60.00 | 70.00 | — | — | — | — | 24.00 | — | G1/8 |
| SBTB20125-JHP-R | 20.00 | 45.00 | 120.00 | 130.00 | — | — | — | — | 24.00 | — | G1/8 |
| SBTB2060-JHP-R | 20.00 | 45.00 | 60.00 | 70.00 | — | — | — | — | 24.00 | — | G1/8 |
| SBTB2270-JHP-R | 22.00 | 45.00 | 70.00 | 80.00 | — | — | — | — | 24.00 | — | G1/8 |
| SBTB2225SW-JHP-T | 22.00 | 47.00 | 25.00 | 45.00 | 30.00 | 25.0 | 4.50 | 37.50 | 32.50 | M8X1 | — |
| SBTB2225SRWD | 22.00 | 48.00 | 25.00 | 35.00 | 26.90 | 26.9 | 5.50 | — | 38.00 | — | — |
| SBTB2225SRR-JHP-T | 22.00 | 52.00 | 25.00 | 45.00 | 37.60 | 13.7 | 5.50 | — | 28.00 | M8X1 | — |
| SBTB25100-JHP-R | 25.00 | 45.00 | 100.00 | 110.00 | — | — | — | — | 24.00 | — | G1/8 |
| SBTB2560-JHP-R | 25.00 | 45.00 | 60.00 | 70.00 | — | — | — | — | 24.00 | — | G1/8 |
| SBTB2670-JHP-R | 25.40 | 45.00 | 70.00 | 80.00 | — | — | — | — | 24.00 | — | G1/8 |
| SBTB2885-JHP-R | 28.00 | 45.00 | 85.00 | 95.00 | — | — | — | — | 24.00 | — | M12X1.5 |
| SBTB2885-JHP-T | 28.00 | 45.00 | 85.00 | 105.00 | — | — | — | — | 24.00 | M8X1 | M12X1.5 |
| SBTB2836CT20-JHP-T | 28.00 | 46.00 | 36.00 | 56.00 | 27.00 | 27.0 | 4.50 | 36.00 | 34.50 | M8X1 | — |
| SBTB3115CIT-JHP-T | 31.00 | 60.00 | 15.00 | 35.00 | 40.70 | 23.5 | 5.50 | 59.00 | 34.00 | M8X1 | — |
| SBTB3225HA32-JHP-T | 32.00 | 50.00 | 25.00 | 45.00 | 28.40 | 28.4 | 4.50 | 39.00 | 39.00 | M8X1 | — |
| SBTB3337HA20-JHP-T | 33.00 | 50.00 | 37.00 | 57.00 | 32.80 | 22.9 | 4.50 | 47.40 | 35.70 | M8X1 | — |
| SBTB3440-JHP-T | 34.00 | 50.00 | 44.00 | 64.00 | 29.70 | 29.7 | 4.50 | 37.50 | 37.50 | M8X1 | — |
Совместимые станки
| Обозначение | Станки |
|---|---|
| SBTB1620SRWD | STAR SR16 / SST16 / SR20 / RNC16 |
| SBTB2225SRWD | STAR SR32 / SR32J (старые модели) |
| SBTB2225SRR-JHP-T | STAR SR10J / SB16 / SB20 / SR20J / SR20JN / SR20 R / II / III / SR32J / SR32JN / ECAS12 / ECAS20 / SR20R IV (позиции T21 - T24) |
| SBTB2225SW-JHP-T | STAR SB12R / SB20R / SR20R IV / SW20 / SV20R / SR32J II / SR38 / SW12R II / SR20J II |
| SBTB3440-JHP-T | STAR SV38R / ECAS32, MAIER |
| SBTB1660-JHP-R | STAR, TRAUB, MANURHIN |
| SBTB1960-JHP-R | CITIZEN L20/C16/M16 |
| SBTB2060-JHP-R | CITIZEN B12, TSUGAMI BS12 / BS20 |
| SBTB20125-JHP-R | TORNOS DECO, MANURHIN Swing 7-13 |
| SBTB2270-JHP-R | STAR (большинство машин 12/16/20/32 мм), TORNOS DELTA20 / GAMMA20 |
| SBTB2560-JHP-R | CITIZEN L20, TORNOS, HANWHA STL32 / STL35H / STL33 / STL35J, TSUGAMI BS12 / BS20, MANURHIN Swing |
| SBTB25100-JHP-R | TORNOS DECO, MANURHIN KMX 5/20 / KMX 5/26 / KMX 5/32 / Swing 7-20 / Swing 7-26 |
| SBTB2670-JHP-R | CITIZEN M32 / C32 / L32 |
| SBTB2836CT20-JHP-T | TORNOS CT20 |
| SBTB2885-JHP-R | TRAUB TNL 12 / TNL16 |
| SBTB2885-JHP-T | TRAUB TNL 12 / TNL16 |
| SBTB3115CIT-JHP-T | CITIZEN A32-VII / L32 |
| SBTB3225HA32-JHP-T | HANWHA STL38H |
| SBTB3337HA20-JHP-T | HANWHA XD20H /XD20J / XD32H / XD32J |
Запасные части
| Обозначение | Запасные части |
|---|---|
| SBTB1620SRWD | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 |
| SBTB1660-JHP-R | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M8X1X6 DIN913 |
| SBTB1960-JHP-R | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 PLG G1/8 TL360 |
| SBTB20125-JHP-R | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 PLG G1/8 TL360 |
| SBTB2060-JHP-R | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 PLG G1/8 TL360 |
| SBTB2270-JHP-R | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 PLG G1/8 TL360 |
| SBTB2225SW-JHP-T | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M8X1X8 DIN906 SR M4X10 DIN912 |
| SBTB2225SRWD | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M5X10 DIN7984 |
| SBTB2225SRR-JHP-T | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M8X1X8 DIN906 SR M5X10 DIN7984 |
| SBTB25100-JHP-R | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 PLG G1/8 TL360 |
| SBTB2560-JHP-R | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 PLG G1/8 TL360 |
| SBTB2670-JHP-R | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 PLG G1/8 TL360 |
| SBTB2885-JHP-R | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M12X1.5X10 DIN913 |
| SBTB2885-JHP-T | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M8X1X8 DIN906 SR M12X1.5X10 DIN913 |
| SBTB2836CT20-JHP-T | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M8X1X8 DIN906 SR M4X10 DIN912 |
| SBTB3115CIT-JHP-T | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M8X1X8 DIN906 |
| SBTB3225HA32-JHP-T | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M8X1X8 DIN906 SR M4X20 DIN912 |
| SBTB3337HA20-JHP-T | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M8X1X8 DIN906 SR M4X25 DIN912 |
| SBTB3440-JHP-T | SBTA-IK-HOP SBTA-EXB SBTA-QR5.28X1.78 HW 3.0 FLAT RING-SW-S5 SR M5X18 DIN7984 SR M8X1X8 DIN906 SR M4X10 DIN912 |
