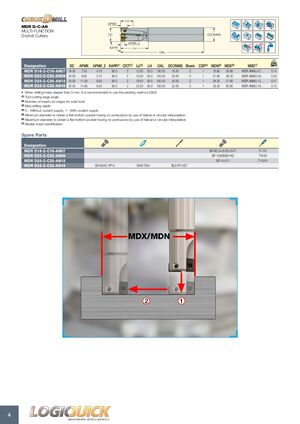

LU APMX MDR D-C-AN MULTI-FUNCTION Endmill Cutters DC DCONMS APMX_2 Rd° KAPR LH OAL kg Designation DC APMX APMX_2 KAPR(1) CICT(2) LU(3) LH OAL DCONMS Shank CSP(4) MDN(5) MDX(6) MIID(7) MDR D16-2-C16-AN07 16.00 7.30 4.70 90.0 2 12.00 30.0 130.00 16.00 C 1 16.80 30.80 MDR ANMU 07... 0.14 MDR D20-2-C20-AN09 20.00 8.90 5.70 90.0 2 15.00 35.0 145.00 20.00 C 1 21.80 38.20 MDR ANMU 09... 0.30 MDR D25-2-C25-AN12 25.00 11.50 6.50 90.0 2 18.50 50.0 150.00 25.00 C 1 26.30 47.60 MDR ANMU 12... 0.47 MDR D32-2-C32-AN16 32.00 14.90 8.50 90.0 2 23.50 50.0 150.00 32.00 C 1 33.30 60.90 MDR ANMU 16... 0.72 • When drilling holes deeper than 5 mm, it is recommended to use the pecking method (G83) (1) Tool cutting edge angle (2) Number of inserts (or edges for solid tool) (3) Max.drilling depth (4) 0 - Without coolant supply, 1 - With coolant supply (5) Minimum diameter to obtain a flat-bottom pocket having no protrusions by use of helical or circular interpolation (6) Maximum diameter to obtain a flat-bottom pocket having no protrusions by use of helical or circular interpolation (7) Master insert identification Spare Parts Designation MDR D16-2-C16-AN07 SR M2.5-L6-D3.25-T7 T-7/51 MDR D20-2-C20-AN09 SR 10508082-HG T-8/53 MDR D25-2-C25-AN12 SR 14-571 T-10/51 MDR D32-2-C32-AN16 SR M4X0.7IP15 SW6-T-SH BLD IP15/S7 2 1 4
