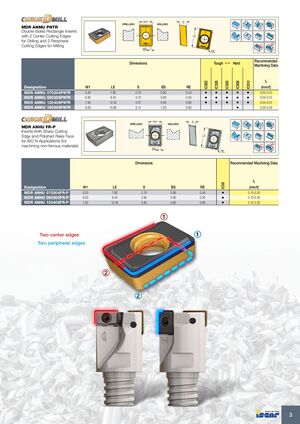

W1 S DRILLING MILLING MDR ANMU PNTR Double-Sided Rectangle Inserts with 2 Center Cutting Edges LE for Drilling and 2 Peripheral Cutting Edges for Milling Rd° BS RE Recommended Dimensions Tough 1 Hard Machining Data fz IC882 IC328 IC830 IC808 IC810 Designation W1 LE S BS RE (mm/t) MDR ANMU 070304PNTR 5.20 7.80 2.70 0.80 0.40 • • • • • 0.05-0.20 MDR ANMU 090305PNTR 6.30 9.40 3.15 0.80 0.50 • • • • • 0.05-0.23 MDR ANMU 120408PNTR 7.50 12.40 4.07 0.80 0.80 • • • • • 0.05-0.25 MDR ANMU 160508PNTR 9.50 15.80 5.14 1.00 0.80 • 0.05-0.28 W1 S DRILLING MILLING MDR ANHU FR-P Inserts With Sharp Cutting Edge and Polished Rake Face LE for ISO N Applications (for machining non-ferrous materials) Rd° BS RE Dimensions Recommended Machining Data fz IC08 Designation W1 LE S BS RE (mm/t) MDR ANHU 070304FR-P 5.20 7.80 2.70 0.80 0.45 • 0.10-0.30 MDR ANHU 090305FR-P 6.30 9.40 2.95 0.80 0.50 • 0.10-0.30 MDR ANHU 120408FR-P 7.50 12.40 3.85 0.80 0.80 • 0.10-0.30 1 Two center edges 1 Two peripheral edges 2 2 3
