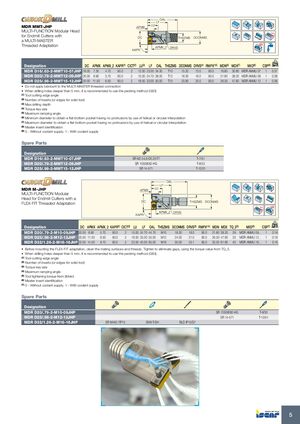

Новые режущие инструменты Iscar 2026 - страница 7

OAL LF LU MDR MMT-JHP APMX MULTI-FUNCTION Modular Head Rd° for Endmill Cutters with DC THSZMS DCONMS a MULTI-MASTER Threaded Adaptation APMX_2 DRVS KAPR Designation DC APMX APMX_2 KAPR(1) CICT(2) LU(3) LF OAL THSZMS DCONMS DRVS(4) RMPX°(5) MDN(6) MDX(7) MIID(8) CSP(9) kg MDR D16/.63-2-MMT10-07JHP 16.00 7.30 4.70 90.0 2 12.00 23.00 34.30 T10 15.20 13.0 90.0 16.80 30.80 MDR ANMU 07 1 0.07 MDR D20/.79-2-MMT12-09JHP 20.00 8.90 5.70 90.0 2 15.00 24.70 38.00 T12 18.30 16.0 90.0 21.80 38.20 MDR ANMU 09 1 0.08 MDR D25/.98-2-MMT15-12JHP 25.00 11.50 6.50 90.0 2 18.50 33.00 50.00 T15 23.90 20.0 90.0 26.30 47.60 MDR ANMU 12 1 0.08 • Do not apply lubricant to the MULTI-MASTER threaded connection • When drilling holes deeper than 5 mm, it is recommended to use the pecking method (G83) (1) Tool cutting edge angle (2) Number of inserts (or edges for solid tool) (3) Max.drilling depth (4) Torque key size (5) Maximum ramping angle (6) Minimum diameter to obtain a flat-bottom pocket having no protrusions by use of helical or circular interpolation (7) Maximum diameter to obtain a flat-bottom pocket having no protrusions by use of helical or circular interpolation (8) Master insert identification (9) 0 - Without coolant supply, 1 - With coolant supply Spare Parts Designation MDR D16/.63-2-MMT10-07JHP SR M2.5-L6-D3.25-T7 T-7/51 MDR D20/.79-2-MMT12-09JHP SR 10508082-HG T-8/53 MDR D25/.98-2-MMT15-12JHP SR 14-571 T-10/51 OAL LF MDR M-JHP LU APMX MULTI-FUNCTION Modular Head for Endmill Cutters with a DC THSZMS DCONMS FLEX-FIT Threaded Adaptation Rd° APMX_2 DRVS KAPR Designation DC APMX APMX_2 KAPR(1) CICT(2) LU LF OAL THSZMS DCONMS DRVS(3) RMPX°(4) MDN MDX TQ_3(5) MIID(6) CSP(7) kg MDR D20/.79-2-M10-09JHP 20.00 8.90 5.70 90.0 2 15.00 24.70 44.70 M10 18.30 18.0 90.0 21.80 38.20 29 MDR ANMU 09... 1 0.18 MDR D25/.98-2-M12-12JHP 25.00 11.50 6.50 90.0 2 18.50 33.00 55.00 M12 24.00 21.0 90.0 26.30 47.60 33 MDR ANMU 12... 1 0.18 MDR D32/1.26-2-M16-16JHP 32.00 14.50 8.70 90.0 2 23.50 40.00 65.00 M16 30.00 25.1 90.0 33.30 61.60 40 MDR ANMU 16... 1 0.16 • Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. • When drilling holes deeper than 5 mm, it is recommended to use the pecking method (G83). (1) Tool cutting edge angle (2) Number of inserts (or edges for solid tool) (3) Torque key size (4) Maximum ramping angle (5) Tool tightening torque Nxm (lbfxin) (6) Master insert identification (7) 0 - Without coolant supply, 1 - With coolant supply Spare Parts Designation MDR D20/.79-2-M10-09JHP SR 10508082-HG T-8/53 MDR D25/.98-2-M12-12JHP SR 14-571 T-10/51 MDR D32/1.26-2-M16-16JHP SR M4X0.7IP15 SW6-T-SH BLD IP15/S7 5
