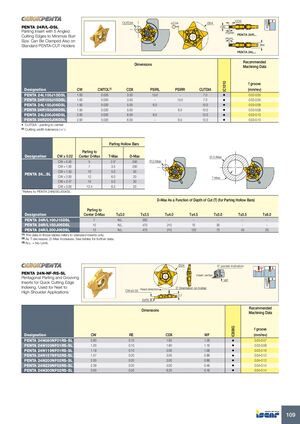

CUTDIA CDX ±0.04 Ø24 PENTA 24R/L-DSL CW Parting Insert with 5 Angled PSIRR PENTA 24R... Cutting Edges to Minimize Burr PSIRL Size. Can Be Clamped Also on Standard PENTA-CUT Holders BW PENTA 24L... Recommended Dimensions Machining Data f groove IC1010 Designation CW CWTOL(1) CDX PSIRL PSIRR CUTDIA (mm/rev) PENTA 24L100J15DSL 1.00 0.020 3.50 15.0 - 7.0 • 0.02-0.05 PENTA 24R100J15DSL 1.00 0.020 3.50 - 15.0 7.0 • 0.02-0.05 PENTA 24L150J06DSL 1.50 0.020 5.00 6.0 - 10.0 • 0.03-0.08 PENTA 24R150J06DSL 1.50 0.020 5.00 - 6.0 10.0 • 0.03-0.08 PENTA 24L200J06DSL 2.00 0.020 6.00 6.0 - 12.0 • 0.03-0.10 PENTA 24R200J06DSL 2.00 0.020 6.00 - 6.0 12.0 • 0.03-0.10 • CUTDIA - parting to center (1) Cutting width tolerance (+/-) Parting Hollow Bars Parting to Designation CW ± 0.02 Center D-Max T-Max D-Max Ø D-Max CW = 0.50 5 2.5* 250 Ø D-Max CW = 1.00 7 3.5 250 CW = 1.50 10 5.0 30 PENTA 24...SL CW = 2.00 12 6.0 20 T-Max CW = 2.47 10 5.0 30 CW = 3.00 12.4 6.2 20 *Refers to PENTA 24N050J004SL D-Max As a Function of Depth of Cut (T) (for Parting Hollow Bars) Parting to Designation Center D-Max T≤3.0 T≤3.5 T≤4.0 T≤4.5 T≤5.0 T≤5.5 T≤6.0 PENTA 24R/L100J15DSL 7 N.L. 250 - - - - - PENTA 24R/L150J06DSL 10 N.L. 470 210 70 30 - - PENTA 24R/L200J06DSL 12 N.L. 470 210 120 75 45 20 (1) The data in those tables refers to standard inserts only. (2) As T decreases ,D-Max Increases. See tables for further data. (3) N.L. = No Limit. Ø24 3° pocket inclination PENTA 24N-NF-RS-SL Insert center Pentagonal Parting and Grooving WF Inserts for Quick Cutting Edge Indexing. Used for Next to Feed direction 3˚ Orientation on holder CW±0.02 High Shoulder Applications 3.7 2xRE Recommended Dimensions Machining Data IC808G f groove Designation CW RE CDX WF (mm/rev) PENTA 24N080NF01RS-SL 0.80 0.10 1.60 1.26 • 0.03-0.07 PENTA 24N100NF01RS-SL 1.00 0.10 1.80 1.16 • 0.03-0.08 PENTA 24N119NF01RS-SL 1.19 0.10 2.00 1.06 • 0.03-0.10 PENTA 24N157NF02RS-SL 1.57 0.20 3.00 0.88 • 0.04-0.12 PENTA 24N200NF02RS-SL 2.00 0.20 3.00 0.66 • 0.04-0.12 PENTA 24N239NF02RS-SL 2.39 0.20 5.00 0.46 • 0.04-0.14 PENTA 24N300NF02RS-SL 3.00 0.20 6.20 0.16 • 0.04-0.14 109
