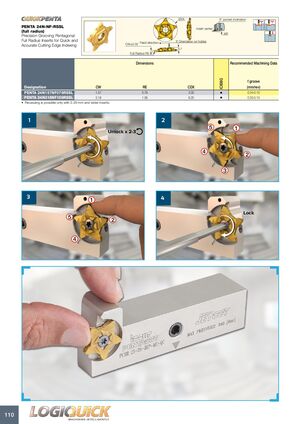

Ø24 3° pocket inclination PENTA 24N-NF-RSSL Insert center (full radius) WF Precision Grooving Pentagonal Full Radius Inserts for Quick and Feed direction 3˚ Orientation on holder Accurate Cutting Edge Indexing CW±0.02 3.7 Full Radius RE Dimensions Recommended Machining Data IC808G f groove Designation CW RE CDX (mm/rev) PENTA 24N157NF079RSSL 1.57 0.79 3.00 • 0.04-0.10 PENTA 24N318NF159RSSL 3.18 1.59 6.20 • 0.05-0.15 • Recessing is possible only with 2.39 mm and wider inserts. 1 2 5 1 Unlock x 2-3 4 2 3 3 4 1 Lock 5 2 4 110
