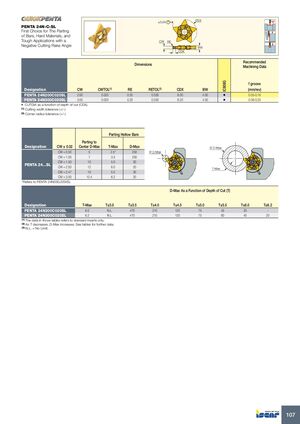

±0.04 Ø24 PENTA 24N-C-SL First Choice for The Parting of Bars, Hard Materials, and Tough Applications with a CW RE Negative Cutting Rake Angle BW CDX Recommended Dimensions Machining Data IC808G f groove Designation CW CWTOL(1) RE RETOL(2) CDX BW (mm/rev) PENTA 24N200C020SL 2.00 0.020 0.20 0.030 6.00 4.00 • 0.05-0.16 PENTA 24N300C020SL 3.00 0.020 0.20 0.030 6.20 4.00 • 0.06-0.20 • CUTDIA as a function of depth of cut (CDX). (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) Parting Hollow Bars Parting to Designation CW ± 0.02 Center D-Max T-Max D-Max Ø D-Max CW = 0.50 5 2.5* 250 Ø D-Max CW = 1.00 7 3.5 250 CW = 1.50 10 5.0 30 PENTA 24...SL CW = 2.00 12 6.0 20 T-Max CW = 2.47 10 5.0 30 CW = 3.00 12.4 6.2 20 *Refers to PENTA 24N050J004SL D-Max As a Function of Depth of Cut (T) Designation T-Max T≤3.0 T≤3.5 T≤4.0 T≤4.5 T≤5.0 T≤5.5 T≤6.0 T≤6.2 PENTA 24N200C020SL 6.0 N.L. 470 210 120 75 45 20 - PENTA 24N300C020SL 6.2 N.L. 470 210 120 75 60 40 20 (1) The data in those tables refers to standard inserts only. (2) As T decreases ,D-Max Increases. See tables for further data. (3) N.L. = No Limit. 107
