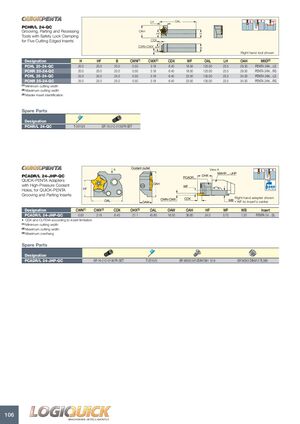

LH OAL PCHR/L 24-QC Grooving, Parting and Recessing OAH HF H Tools with Safety Lock Clamping for Five Cutting Edged Inserts CDX CWN-CWX WF B Right hand tool shown Designation H HF B CWN(1) CWX(2) CDX WF OAL LH OAH MIID(3) PCHL 20-24-QC 20.0 20.0 20.0 0.50 3.18 6.40 18.50 125.00 23.5 29.30 PENTA 24N....LS PCHR 20-24-QC 20.0 20.0 20.0 0.50 3.18 6.40 18.50 125.00 23.5 29.30 PENTA 24N....RS PCHL 25-24-QC 25.0 25.0 25.0 0.50 3.18 6.40 23.50 135.00 23.5 34.30 PENTA 24N....LS PCHR 25-24-QC 25.0 25.0 25.0 0.50 3.18 6.40 23.50 135.00 23.5 34.30 PENTA 24N....RS (1) Minimum cutting width (2) Maximum cutting width (3) Master insert identification Spare Parts Designation PCHR/L 24-QC T-2010/5 SR 16-212-01397R-SET A View A PCADR/L 24-JHP-QC QUICK-PENTA Adapters with High-Pressure Coolant Holes, for QUICK-PENTA Bar Max Grooving and Parting Inserts Right hand adapter shown • WF-to insert's center Designation CWN(1) CWX(2) CDX OHX(3) OAL OAW OAH HF WF WB Insert PCADR/L 24-JHP-QC 0.50 3.18 6.40 21.1 45.60 18.00 36.60 24.0 5.70 7.20 PENTA 24....SL • CDX and CUTDIA according to insert limitation (1) Minimum cutting width (2) Maximum cutting width (3) Maximum overhang Spare Parts Designation PCADR/L 24-JHP-QC SR 16-212-01397R-SET T-2010/5 SR M3X0.5X10DIN7991 10.9 SR M3X3 DIN913 TL360 106
