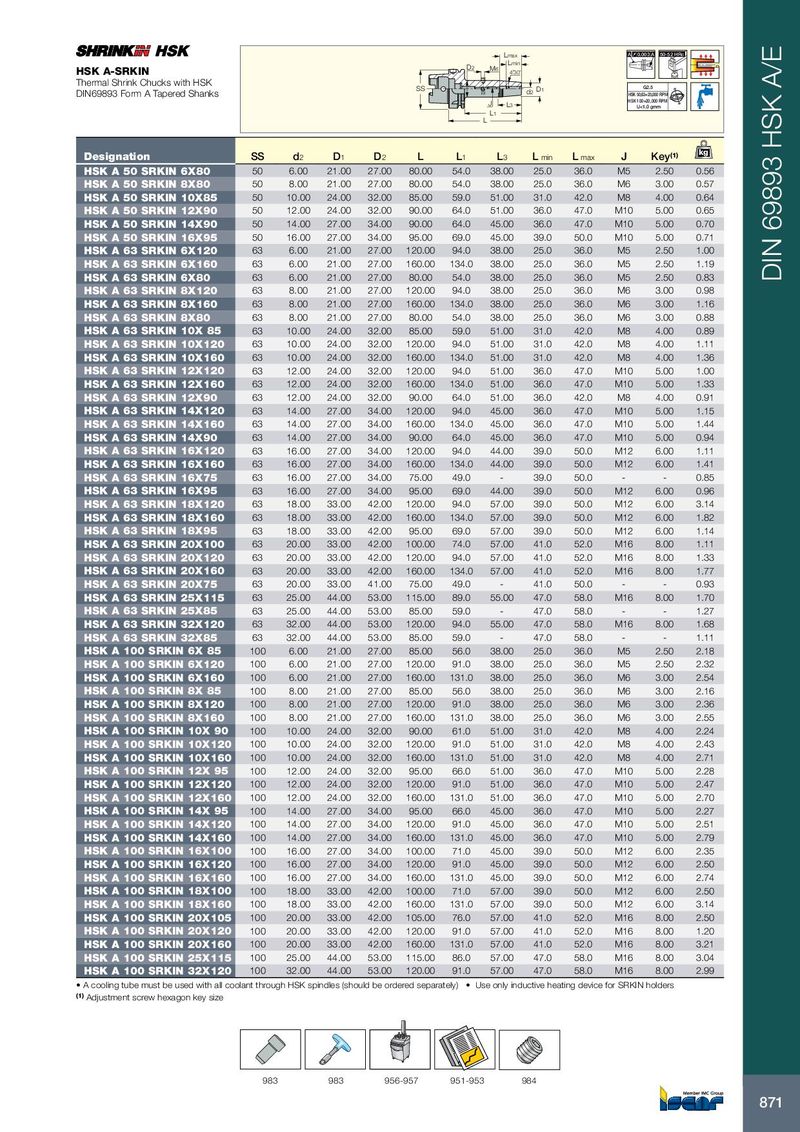

Lmax A 0.003 A 50-52 HRc Lmin D2 HSK A-SRKIN M6 4˚30’ Thermal Shrink Chucks with HSK SS G2.5 DIN69893 Form A Tapered Shanks d2 D1 HSK 50,63=25,000 RPM J HSK 100=20,000 RPM L3 U<1.0 gmm L1 L kg Designation SS d 2 D 1 D 2 L L 1 L 3 L min L max J Key (1) HSK A 50 SRKIN 6X80 50 6.00 21.00 27.00 80.00 54.0 38.00 25.0 36.0 M5 2.50 0.56 HSK A 50 SRKIN 8X80 50 8.00 21.00 27.00 80.00 54.0 38.00 25.0 36.0 M6 3.00 0.57 HSK A 50 SRKIN 10X85 50 10.00 24.00 32.00 85.00 59.0 51.00 31.0 42.0 M8 4.00 0.64 HSK A 50 SRKIN 12X90 50 12.00 24.00 32.00 90.00 64.0 51.00 36.0 47.0 M10 5.00 0.65 HSK A 50 SRKIN 14X90 50 14.00 27.00 34.00 90.00 64.0 45.00 36.0 47.0 M10 5.00 0.70 HSK A 50 SRKIN 16X95 50 16.00 27.00 34.00 95.00 69.0 45.00 39.0 50.0 M10 5.00 0.71 HSK A 63 SRKIN 6X120 63 6.00 21.00 27.00 120.00 94.0 38.00 25.0 36.0 M5 2.50 1.00 HSK A 63 SRKIN 6X160 63 6.00 21.00 27.00 160.00 134.0 38.00 25.0 36.0 M5 2.50 1.19 HSK A 63 SRKIN 6X80 63 6.00 21.00 27.00 80.00 54.0 38.00 25.0 36.0 M5 2.50 0.83 DIN 69893 HSK A/E HSK A 63 SRKIN 8X120 63 8.00 21.00 27.00 120.00 94.0 38.00 25.0 36.0 M6 3.00 0.98 HSK A 63 SRKIN 8X160 63 8.00 21.00 27.00 160.00 134.0 38.00 25.0 36.0 M6 3.00 1.16 HSK A 63 SRKIN 8X80 63 8.00 21.00 27.00 80.00 54.0 38.00 25.0 36.0 M6 3.00 0.88 HSK A 63 SRKIN 10X 85 63 10.00 24.00 32.00 85.00 59.0 51.00 31.0 42.0 M8 4.00 0.89 HSK A 63 SRKIN 10X120 63 10.00 24.00 32.00 120.00 94.0 51.00 31.0 42.0 M8 4.00 1.11 HSK A 63 SRKIN 10X160 63 10.00 24.00 32.00 160.00 134.0 51.00 31.0 42.0 M8 4.00 1.36 HSK A 63 SRKIN 12X120 63 12.00 24.00 32.00 120.00 94.0 51.00 36.0 47.0 M10 5.00 1.00 HSK A 63 SRKIN 12X160 63 12.00 24.00 32.00 160.00 134.0 51.00 36.0 47.0 M10 5.00 1.33 HSK A 63 SRKIN 12X90 63 12.00 24.00 32.00 90.00 64.0 51.00 36.0 42.0 M8 4.00 0.91 HSK A 63 SRKIN 14X120 63 14.00 27.00 34.00 120.00 94.0 45.00 36.0 47.0 M10 5.00 1.15 HSK A 63 SRKIN 14X160 63 14.00 27.00 34.00 160.00 134.0 45.00 36.0 47.0 M10 5.00 1.44 HSK A 63 SRKIN 14X90 63 14.00 27.00 34.00 90.00 64.0 45.00 36.0 47.0 M10 5.00 0.94 HSK A 63 SRKIN 16X120 63 16.00 27.00 34.00 120.00 94.0 44.00 39.0 50.0 M12 6.00 1.11 HSK A 63 SRKIN 16X160 63 16.00 27.00 34.00 160.00 134.0 44.00 39.0 50.0 M12 6.00 1.41 HSK A 63 SRKIN 16X75 63 16.00 27.00 34.00 75.00 49.0 - 39.0 50.0 - - 0.85 HSK A 63 SRKIN 16X95 63 16.00 27.00 34.00 95.00 69.0 44.00 39.0 50.0 M12 6.00 0.96 HSK A 63 SRKIN 18X120 63 18.00 33.00 42.00 120.00 94.0 57.00 39.0 50.0 M12 6.00 3.14 HSK A 63 SRKIN 18X160 63 18.00 33.00 42.00 160.00 134.0 57.00 39.0 50.0 M12 6.00 1.82 HSK A 63 SRKIN 18X95 63 18.00 33.00 42.00 95.00 69.0 57.00 39.0 50.0 M12 6.00 1.14 HSK A 63 SRKIN 20X100 63 20.00 33.00 42.00 100.00 74.0 57.00 41.0 52.0 M16 8.00 1.11 HSK A 63 SRKIN 20X120 63 20.00 33.00 42.00 120.00 94.0 57.00 41.0 52.0 M16 8.00 1.33 HSK A 63 SRKIN 20X160 63 20.00 33.00 42.00 160.00 134.0 57.00 41.0 52.0 M16 8.00 1.77 HSK A 63 SRKIN 20X75 63 20.00 33.00 41.00 75.00 49.0 - 41.0 50.0 - - 0.93 HSK A 63 SRKIN 25X115 63 25.00 44.00 53.00 115.00 89.0 55.00 47.0 58.0 M16 8.00 1.70 HSK A 63 SRKIN 25X85 63 25.00 44.00 53.00 85.00 59.0 - 47.0 58.0 - - 1.27 HSK A 63 SRKIN 32X120 63 32.00 44.00 53.00 120.00 94.0 55.00 47.0 58.0 M16 8.00 1.68 HSK A 63 SRKIN 32X85 63 32.00 44.00 53.00 85.00 59.0 - 47.0 58.0 - - 1.11 HSK A 100 SRKIN 6X 85 100 6.00 21.00 27.00 85.00 56.0 38.00 25.0 36.0 M5 2.50 2.18 HSK A 100 SRKIN 6X120 100 6.00 21.00 27.00 120.00 91.0 38.00 25.0 36.0 M5 2.50 2.32 HSK A 100 SRKIN 6X160 100 6.00 21.00 27.00 160.00 131.0 38.00 25.0 36.0 M6 3.00 2.54 HSK A 100 SRKIN 8X 85 100 8.00 21.00 27.00 85.00 56.0 38.00 25.0 36.0 M6 3.00 2.16 HSK A 100 SRKIN 8X120 100 8.00 21.00 27.00 120.00 91.0 38.00 25.0 36.0 M6 3.00 2.36 HSK A 100 SRKIN 8X160 100 8.00 21.00 27.00 160.00 131.0 38.00 25.0 36.0 M6 3.00 2.55 HSK A 100 SRKIN 10X 90 100 10.00 24.00 32.00 90.00 61.0 51.00 31.0 42.0 M8 4.00 2.24 HSK A 100 SRKIN 10X120 100 10.00 24.00 32.00 120.00 91.0 51.00 31.0 42.0 M8 4.00 2.43 HSK A 100 SRKIN 10X160 100 10.00 24.00 32.00 160.00 131.0 51.00 31.0 42.0 M8 4.00 2.71 HSK A 100 SRKIN 12X 95 100 12.00 24.00 32.00 95.00 66.0 51.00 36.0 47.0 M10 5.00 2.28 HSK A 100 SRKIN 12X120 100 12.00 24.00 32.00 120.00 91.0 51.00 36.0 47.0 M10 5.00 2.47 HSK A 100 SRKIN 12X160 100 12.00 24.00 32.00 160.00 131.0 51.00 36.0 47.0 M10 5.00 2.70 HSK A 100 SRKIN 14X 95 100 14.00 27.00 34.00 95.00 66.0 45.00 36.0 47.0 M10 5.00 2.27 HSK A 100 SRKIN 14X120 100 14.00 27.00 34.00 120.00 91.0 45.00 36.0 47.0 M10 5.00 2.51 HSK A 100 SRKIN 14X160 100 14.00 27.00 34.00 160.00 131.0 45.00 36.0 47.0 M10 5.00 2.79 HSK A 100 SRKIN 16X100 100 16.00 27.00 34.00 100.00 71.0 45.00 39.0 50.0 M12 6.00 2.35 HSK A 100 SRKIN 16X120 100 16.00 27.00 34.00 120.00 91.0 45.00 39.0 50.0 M12 6.00 2.50 HSK A 100 SRKIN 16X160 100 16.00 27.00 34.00 160.00 131.0 45.00 39.0 50.0 M12 6.00 2.74 HSK A 100 SRKIN 18X100 100 18.00 33.00 42.00 100.00 71.0 57.00 39.0 50.0 M12 6.00 2.50 HSK A 100 SRKIN 18X160 100 18.00 33.00 42.00 160.00 131.0 57.00 39.0 50.0 M12 6.00 3.14 HSK A 100 SRKIN 20X105 100 20.00 33.00 42.00 105.00 76.0 57.00 41.0 52.0 M16 8.00 2.50 HSK A 100 SRKIN 20X120 100 20.00 33.00 42.00 120.00 91.0 57.00 41.0 52.0 M16 8.00 1.20 HSK A 100 SRKIN 20X160 100 20.00 33.00 42.00 160.00 131.0 57.00 41.0 52.0 M16 8.00 3.21 HSK A 100 SRKIN 25X115 100 25.00 44.00 53.00 115.00 86.0 57.00 47.0 58.0 M16 8.00 3.04 HSK A 100 SRKIN 32X120 100 32.00 44.00 53.00 120.00 91.0 57.00 47.0 58.0 M16 8.00 2.99 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • Use only inductive heating device for SRKIN holders (1) Adjustment screw hexagon key size 983 983 956-957 951-953 984 871
