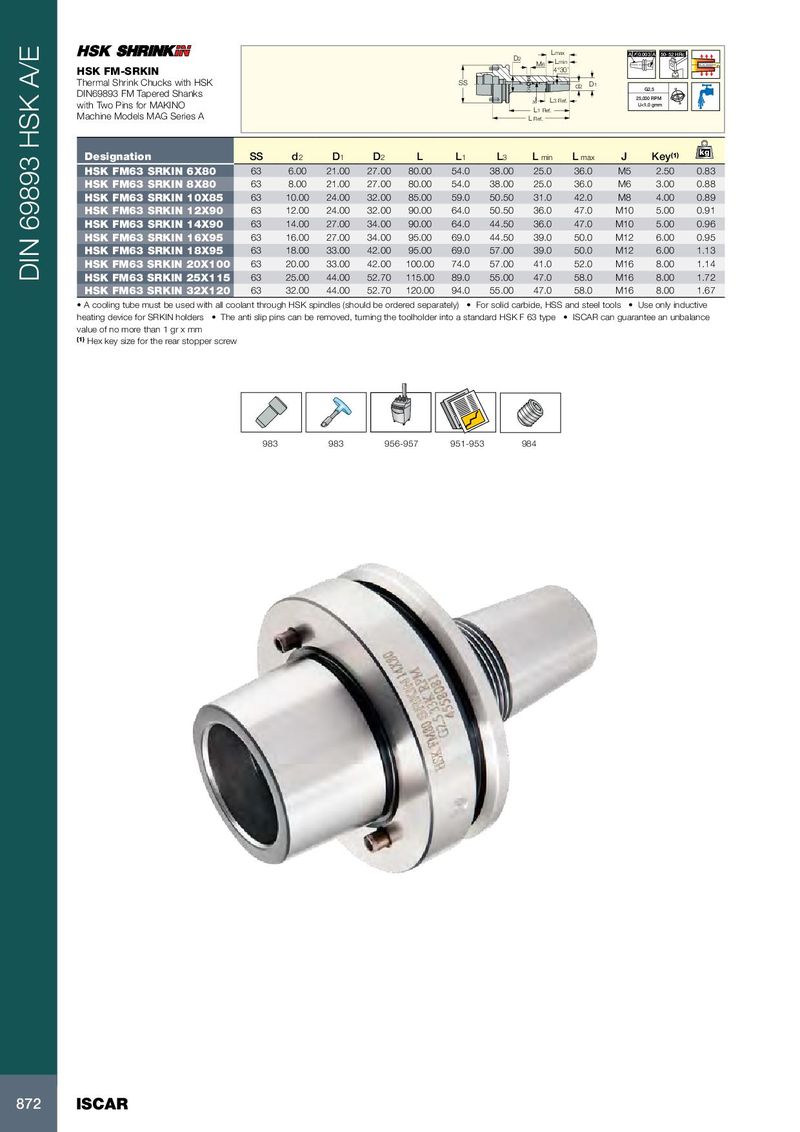

Каталог Iscar вращающийся инструмент 2017 - страница 876

Lmax A 0.003 A 50-52 HRc D2 M6 Lmin HSK FM-SRKIN 4°30’ Thermal Shrink Chucks with HSK SS d2 D1 G2.5 DIN69893 FM Tapered Shanks J L3 Ref. 25,000 RPM with Two Pins for MAKINO U<1.0 gmm L1 Ref. Machine Models MAG Series A L Ref. Designation SS d 2 D 1 D 2 L L 1 L 3 L min L max J Key (1) kg HSK FM63 SRKIN 6X80 63 6.00 21.00 27.00 80.00 54.0 38.00 25.0 36.0 M5 2.50 0.83 HSK FM63 SRKIN 8X80 63 8.00 21.00 27.00 80.00 54.0 38.00 25.0 36.0 M6 3.00 0.88 HSK FM63 SRKIN 10X85 63 10.00 24.00 32.00 85.00 59.0 50.50 31.0 42.0 M8 4.00 0.89 HSK FM63 SRKIN 12X90 63 12.00 24.00 32.00 90.00 64.0 50.50 36.0 47.0 M10 5.00 0.91 HSK FM63 SRKIN 14X90 63 14.00 27.00 34.00 90.00 64.0 44.50 36.0 47.0 M10 5.00 0.96 HSK FM63 SRKIN 16X95 63 16.00 27.00 34.00 95.00 69.0 44.50 39.0 50.0 M12 6.00 0.95 HSK FM63 SRKIN 18X95 63 18.00 33.00 42.00 95.00 69.0 57.00 39.0 50.0 M12 6.00 1.13 HSK FM63 SRKIN 20X100 63 20.00 33.00 42.00 100.00 74.0 57.00 41.0 52.0 M16 8.00 1.14 DIN 69893 HSK A/E HSK FM63 SRKIN 25X115 63 25.00 44.00 52.70 115.00 89.0 55.00 47.0 58.0 M16 8.00 1.72 HSK FM63 SRKIN 32X120 63 32.00 44.00 52.70 120.00 94.0 55.00 47.0 58.0 M16 8.00 1.67 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • For solid carbide, HSS and steel tools • Use only inductive heating device for SRKIN holders • The anti slip pins can be removed, turning the toolholder into a standard HSK F 63 type • ISCAR can guarantee an unbalance value of no more than 1 gr x mm (1) Hex key size for the rear stopper screw 983 983 956-957 951-953 984 872 ISCAR
