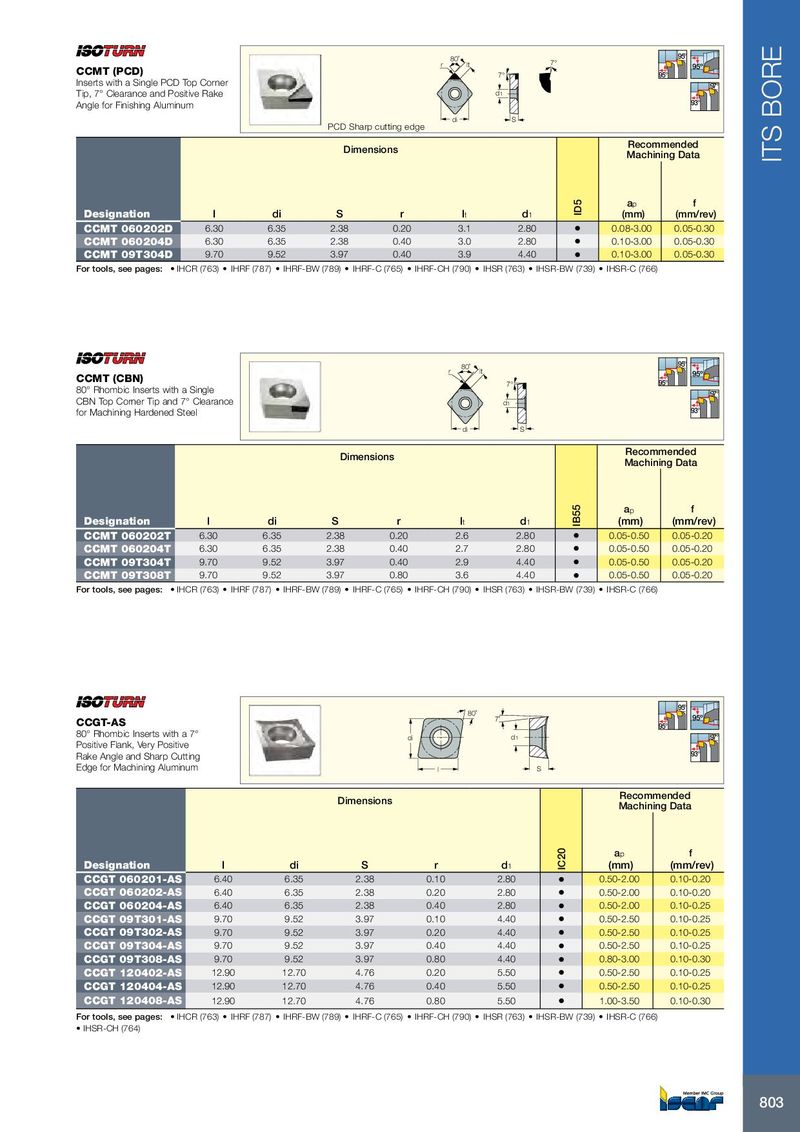

80˚ 95° r lt 7° 95º CCMT (PCD) 7° 95° Inserts with a Single PCD Top Corner 97° Tip, 7° Clearance and Positive Rake d1 Angle for Finishing Aluminum 93° di S PCD Sharp cutting edge Recommended Dimensions Machining Data ITS BORE a p f Designation l di S r l t d 1 ID5 (mm) (mm/rev) CCMT 060202D 6.30 6.35 2.38 0.20 3.1 2.80 • 0.08-3.00 0.05-0.30 CCMT 060204D 6.30 6.35 2.38 0.40 3.0 2.80 • 0.10-3.00 0.05-0.30 CCMT 09T304D 9.70 9.52 3.97 0.40 3.9 4.40 • 0.10-3.00 0.05-0.30 For tools, see pages: • IHCR (763) • IHRF (787) • IHRF-BW (789) • IHRF-C (765) • IHRF-CH (790) • IHSR (763) • IHSR-BW (739) • IHSR-C (766) 80˚ 95° r lt 95º CCMT (CBN) 7° 95° 80° Rhombic Inserts with a Single 97° CBN Top Corner Tip and 7° Clearance d1 for Machining Hardened Steel 93° di S Recommended Dimensions Machining Data a p f Designation l di S r l t d 1 IB55 (mm) (mm/rev) CCMT 060202T 6.30 6.35 2.38 0.20 2.6 2.80 • 0.05-0.50 0.05-0.20 CCMT 060204T 6.30 6.35 2.38 0.40 2.7 2.80 • 0.05-0.50 0.05-0.20 CCMT 09T304T 9.70 9.52 3.97 0.40 2.9 4.40 • 0.05-0.50 0.05-0.20 CCMT 09T308T 9.70 9.52 3.97 0.80 3.6 4.40 • 0.05-0.50 0.05-0.20 For tools, see pages: • IHCR (763) • IHRF (787) • IHRF-BW (789) • IHRF-C (765) • IHRF-CH (790) • IHSR (763) • IHSR-BW (739) • IHSR-C (766) 95° 80˚ 7˚ 95º CCGT-AS 95° 80° Rhombic Inserts with a 7° di d 1 97° Positive Flank, Very Positive Rake Angle and Sharp Cutting 93° Edge for Machining Aluminum l S Recommended Dimensions Machining Data a p f Designation l di S r d 1 IC20 (mm) (mm/rev) CCGT 060201-AS 6.40 6.35 2.38 0.10 2.80 • 0.50-2.00 0.10-0.20 CCGT 060202-AS 6.40 6.35 2.38 0.20 2.80 • 0.50-2.00 0.10-0.20 CCGT 060204-AS 6.40 6.35 2.38 0.40 2.80 • 0.50-2.00 0.10-0.25 CCGT 09T301-AS 9.70 9.52 3.97 0.10 4.40 • 0.50-2.50 0.10-0.25 CCGT 09T302-AS 9.70 9.52 3.97 0.20 4.40 • 0.50-2.50 0.10-0.25 CCGT 09T304-AS 9.70 9.52 3.97 0.40 4.40 • 0.50-2.50 0.10-0.25 CCGT 09T308-AS 9.70 9.52 3.97 0.80 4.40 • 0.80-3.00 0.10-0.30 CCGT 120402-AS 12.90 12.70 4.76 0.20 5.50 • 0.50-2.50 0.10-0.25 CCGT 120404-AS 12.90 12.70 4.76 0.40 5.50 • 0.50-2.50 0.10-0.25 CCGT 120408-AS 12.90 12.70 4.76 0.80 5.50 • 1.00-3.50 0.10-0.30 For tools, see pages: • IHCR (763) • IHRF (787) • IHRF-BW (789) • IHRF-C (765) • IHRF-CH (790) • IHSR (763) • IHSR-BW (739) • IHSR-C (766) • IHSR-CH (764) 803
