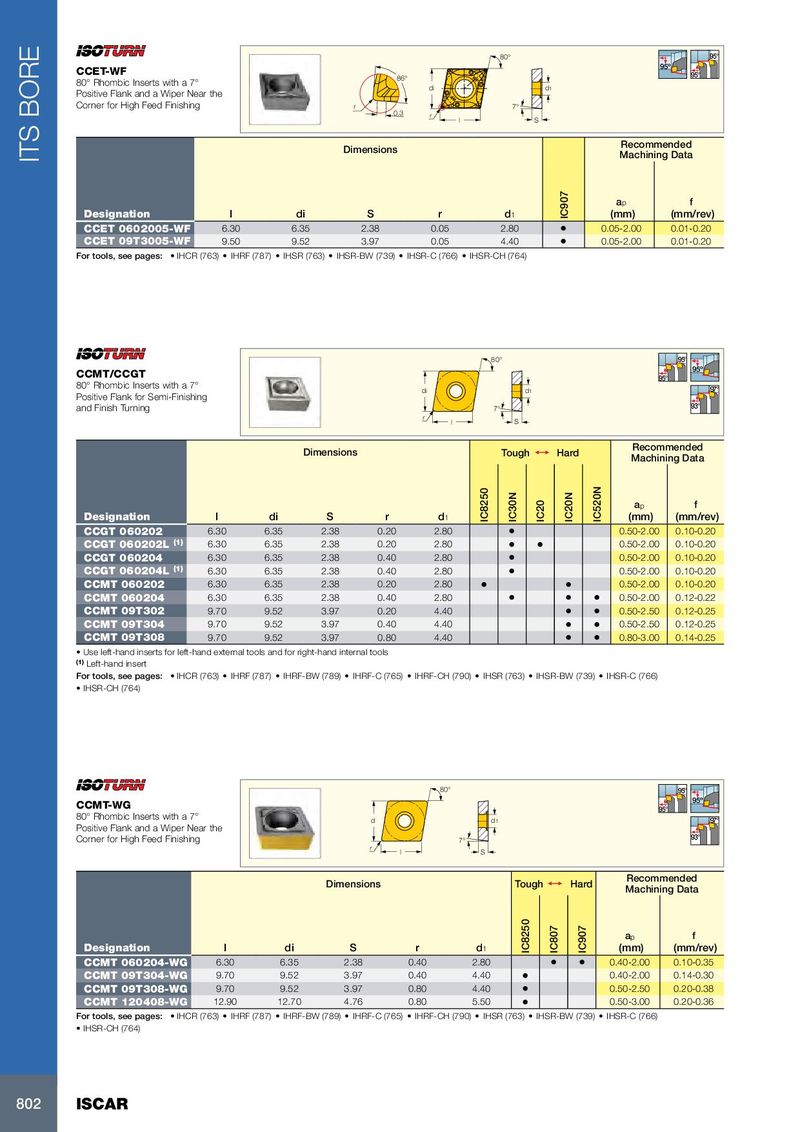

80° 95° 95º CCET-WF 86° 95° 80° Rhombic Inserts with a 7° di d 1 Positive Flank and a Wiper Near the Corner for High Feed Finishing r 7° 0.3 r l S Recommended Dimensions Machining Data ITS BORE a p f Designation l di S r d 1 IC907 (mm) (mm/rev) CCET 0602005-WF 6.30 6.35 2.38 0.05 2.80 • 0.05-2.00 0.01-0.20 CCET 09T3005-WF 9.50 9.52 3.97 0.05 4.40 • 0.05-2.00 0.01-0.20 For tools, see pages: • IHCR (763) • IHRF (787) • IHSR (763) • IHSR-BW (739) • IHSR-C (766) • IHSR-CH (764) 80° 95° 95º CCMT/CCGT 95° 80° Rhombic Inserts with a 7° di d 1 97° Positive Flank for Semi-Finishing and Finish Turning 7° 93° r l S Recommended Dimensions Tough 1  Hard Machining Data a p f Designation l di S r d 1 IC8250 IC30N IC20 IC20N IC520N (mm) (mm/rev) CCGT 060202 6.30 6.35 2.38 0.20 2.80 • 0.50-2.00 0.10-0.20 CCGT 060202L (1) 6.30 6.35 2.38 0.20 2.80 • • 0.50-2.00 0.10-0.20 CCGT 060204 6.30 6.35 2.38 0.40 2.80 • 0.50-2.00 0.10-0.20 CCGT 060204L (1) 6.30 6.35 2.38 0.40 2.80 • 0.50-2.00 0.10-0.20 CCMT 060202 6.30 6.35 2.38 0.20 2.80 • • 0.50-2.00 0.10-0.20 CCMT 060204 6.30 6.35 2.38 0.40 2.80 • • • 0.50-2.00 0.12-0.22 CCMT 09T302 9.70 9.52 3.97 0.20 4.40 • • 0.50-2.50 0.12-0.25 CCMT 09T304 9.70 9.52 3.97 0.40 4.40 • • 0.50-2.50 0.12-0.25 CCMT 09T308 9.70 9.52 3.97 0.80 4.40 • • 0.80-3.00 0.14-0.25 • Use left-hand inserts for left-hand external tools and for right-hand internal tools (1) Left-hand insert For tools, see pages: • IHCR (763) • IHRF (787) • IHRF-BW (789) • IHRF-C (765) • IHRF-CH (790) • IHSR (763) • IHSR-BW (739) • IHSR-C (766) • IHSR-CH (764) 80° 95° 95º CCMT-WG 95° 80° Rhombic Inserts with a 7° d d 1 97° Positive Flank and a Wiper Near the Corner for High Feed Finishing 7° 93° r l S Recommended Dimensions Tough 1  Hard Machining Data a p f Designation l di S r d 1 IC8250 IC807 IC907 (mm) (mm/rev) CCMT 060204-WG 6.30 6.35 2.38 0.40 2.80 • • 0.40-2.00 0.10-0.35 CCMT 09T304-WG 9.70 9.52 3.97 0.40 4.40 • 0.40-2.00 0.14-0.30 CCMT 09T308-WG 9.70 9.52 3.97 0.80 4.40 • 0.50-2.50 0.20-0.38 CCMT 120408-WG 12.90 12.70 4.76 0.80 5.50 • 0.50-3.00 0.20-0.36 For tools, see pages: • IHCR (763) • IHRF (787) • IHRF-BW (789) • IHRF-C (765) • IHRF-CH (790) • IHSR (763) • IHSR-BW (739) • IHSR-C (766) • IHSR-CH (764) 802 ISCAR
