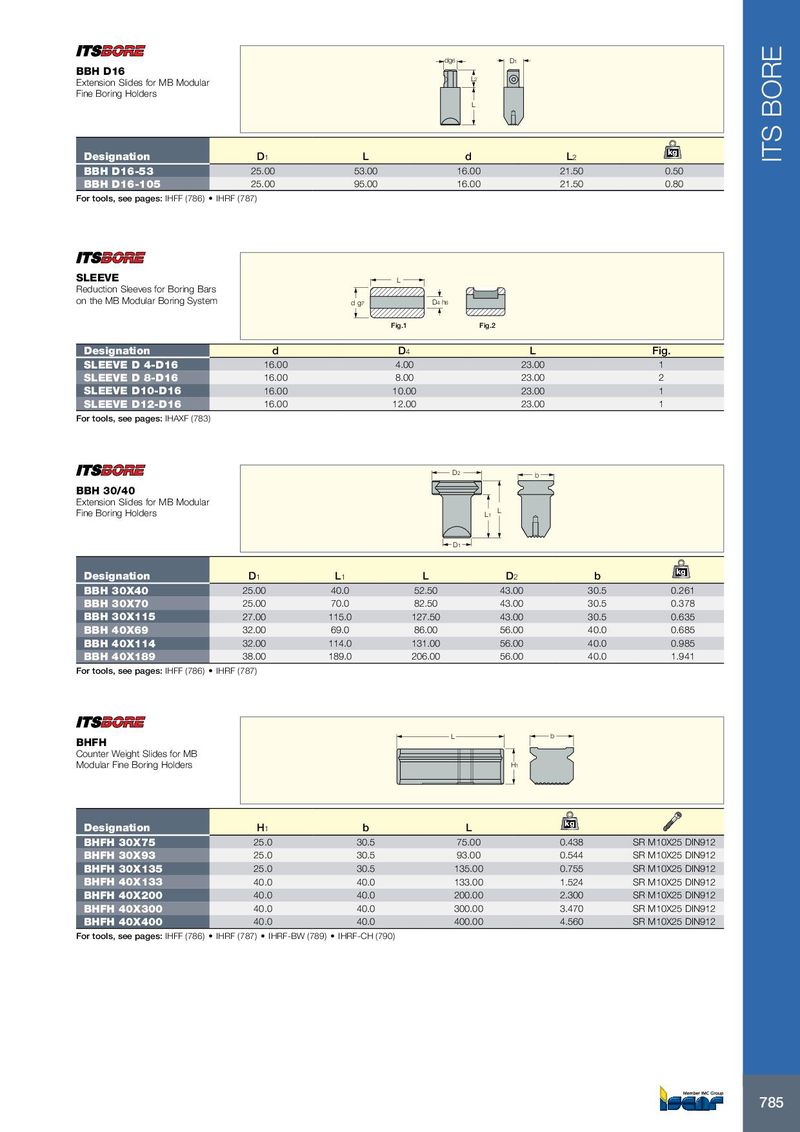

dg6 D1 BBH D16 L2 Extension Slides for MB Modular Fine Boring Holders L kg Designation D 1 L d L 2 ITS BORE BBH D16-53 25.00 53.00 16.00 21.50 0.50 BBH D16-105 25.00 95.00 16.00 21.50 0.80 For tools, see pages: IHFF (786) • IHRF (787) SLEEVE L Reduction Sleeves for Boring Bars on the MB Modular Boring System d g7 D4 h8 Fig.1 Fig.2 Designation d D 4 L Fig. SLEEVE D 4-D16 16.00 4.00 23.00 1 SLEEVE D 8-D16 16.00 8.00 23.00 2 SLEEVE D10-D16 16.00 10.00 23.00 1 SLEEVE D12-D16 16.00 12.00 23.00 1 For tools, see pages: IHAXF (783) D 2 b BBH 30/40 Extension Slides for MB Modular Fine Boring Holders L 1 L D 1 kg Designation D 1 L 1 L D 2 b BBH 30X40 25.00 40.0 52.50 43.00 30.5 0.261 BBH 30X70 25.00 70.0 82.50 43.00 30.5 0.378 BBH 30X115 27.00 115.0 127.50 43.00 30.5 0.635 BBH 40X69 32.00 69.0 86.00 56.00 40.0 0.685 BBH 40X114 32.00 114.0 131.00 56.00 40.0 0.985 BBH 40X189 38.00 189.0 206.00 56.00 40.0 1.941 For tools, see pages: IHFF (786) • IHRF (787) L b BHFH Counter Weight Slides for MB Modular Fine Boring Holders H1 kg Designation H 1 b L BHFH 30X75 25.0 30.5 75.00 0.438 SR M10X25 DIN912 BHFH 30X93 25.0 30.5 93.00 0.544 SR M10X25 DIN912 BHFH 30X135 25.0 30.5 135.00 0.755 SR M10X25 DIN912 BHFH 40X133 40.0 40.0 133.00 1.524 SR M10X25 DIN912 BHFH 40X200 40.0 40.0 200.00 2.300 SR M10X25 DIN912 BHFH 40X300 40.0 40.0 300.00 3.470 SR M10X25 DIN912 BHFH 40X400 40.0 40.0 400.00 4.560 SR M10X25 DIN912 For tools, see pages: IHFF (786) • IHRF (787) • IHRF-BW (789) • IHRF-CH (790) 785
