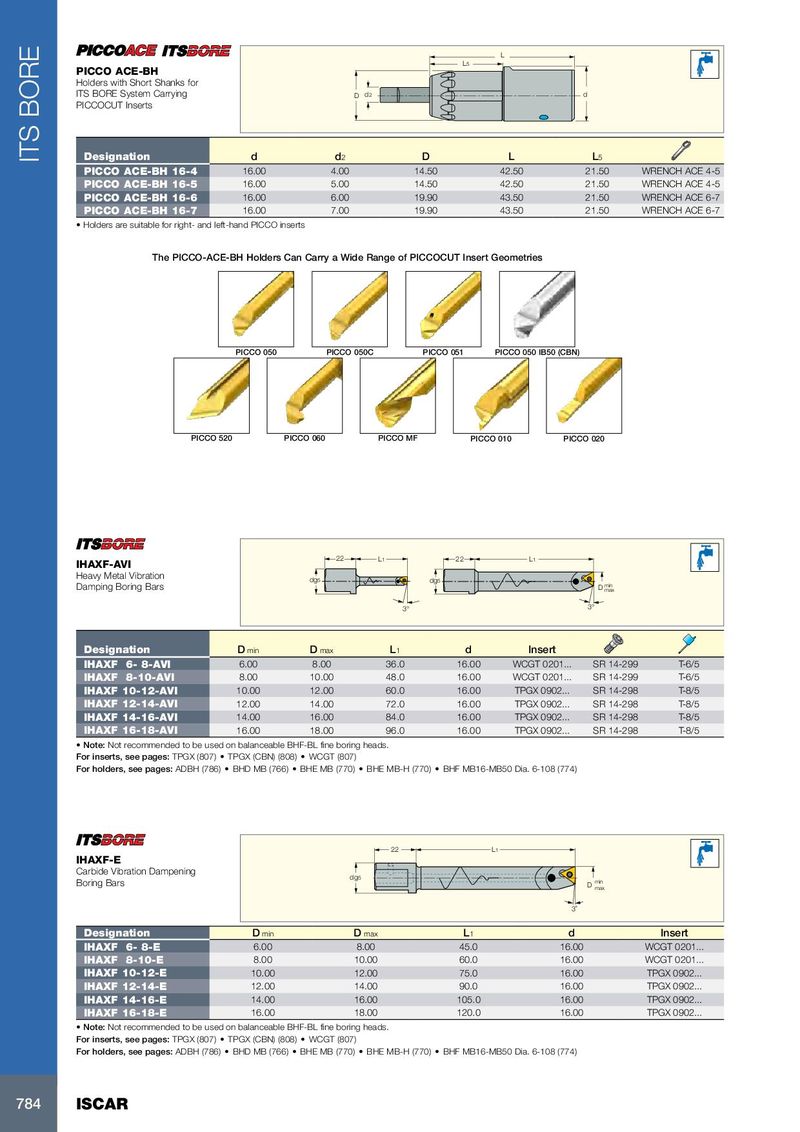

L L5 PICCO ACE-BH Holders with Short Shanks for ITS BORE System Carrying D d2 d PICCOCUT Inserts ITS BORE Designation d d 2 D L L 5 PICCO ACE-BH 16-4 16.00 4.00 14.50 42.50 21.50 WRENCH ACE 4-5 PICCO ACE-BH 16-5 16.00 5.00 14.50 42.50 21.50 WRENCH ACE 4-5 PICCO ACE-BH 16-6 16.00 6.00 19.90 43.50 21.50 WRENCH ACE 6-7 PICCO ACE-BH 16-7 16.00 7.00 19.90 43.50 21.50 WRENCH ACE 6-7 • Holders are suitable for right- and left-hand PICCO inserts The PICCO-ACE-BH Holders Can Carry a Wide Range of PICCOCUT Insert Geometries PICCO 050 PICCO 050C PICCO 051 PICCO 050 IB50 (CBN) PICCO 520 PICCO 060 PICCO MF PICCO 010 PICCO 020 22 L1 22 L1 IHAXF-AVI Heavy Metal Vibration dg5 dg5 Damping Boring Bars D min max 3° 3° Designation D min D max L 1 d Insert IHAXF 6- 8-AVI 6.00 8.00 36.0 16.00 WCGT 0201... SR 14-299 T-6/5 IHAXF 8-10-AVI 8.00 10.00 48.0 16.00 WCGT 0201... SR 14-299 T-6/5 IHAXF 10-12-AVI 10.00 12.00 60.0 16.00 TPGX 0902... SR 14-298 T-8/5 IHAXF 12-14-AVI 12.00 14.00 72.0 16.00 TPGX 0902... SR 14-298 T-8/5 IHAXF 14-16-AVI 14.00 16.00 84.0 16.00 TPGX 0902... SR 14-298 T-8/5 IHAXF 16-18-AVI 16.00 18.00 96.0 16.00 TPGX 0902... SR 14-298 T-8/5 • Note: Not recommended to be used on balanceable BHF-BL fine boring heads. For inserts, see pages: TPGX (807) • TPGX (CBN) (808) • WCGT (807) For holders, see pages: ADBH (786) • BHD MB (766) • BHE MB (770) • BHE MB-H (770) • BHF MB16-MB50 Dia. 6-108 (774) 22 L1 IHAXF-E Carbide Vibration Dampening dg5 Boring Bars D min max 3˚ Designation D min D max L 1 d Insert IHAXF 6- 8-E 6.00 8.00 45.0 16.00 WCGT 0201... IHAXF 8-10-E 8.00 10.00 60.0 16.00 WCGT 0201... IHAXF 10-12-E 10.00 12.00 75.0 16.00 TPGX 0902... IHAXF 12-14-E 12.00 14.00 90.0 16.00 TPGX 0902... IHAXF 14-16-E 14.00 16.00 105.0 16.00 TPGX 0902... IHAXF 16-18-E 16.00 18.00 120.0 16.00 TPGX 0902... • Note: Not recommended to be used on balanceable BHF-BL fine boring heads. For inserts, see pages: TPGX (807) • TPGX (CBN) (808) • WCGT (807) For holders, see pages: ADBH (786) • BHD MB (766) • BHE MB (770) • BHE MB-H (770) • BHF MB16-MB50 Dia. 6-108 (774) 784 ISCAR
