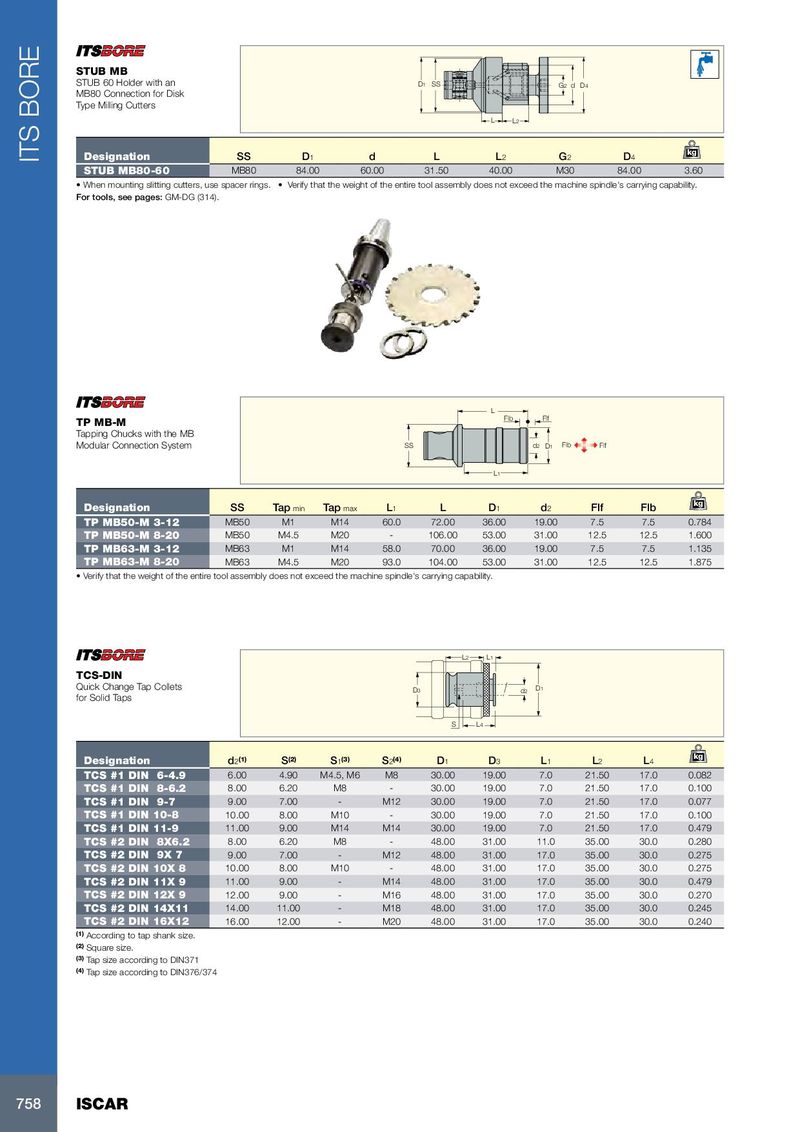

STUB MB STUB 60 Holder with an D1 SS G2 d D4 MB80 Connection for Disk Type Milling Cutters L L2 kg ITS BORE Designation SS D 1 d L L 2 G 2 D 4 STUB MB80-60 MB80 84.00 60.00 31.50 40.00 M30 84.00 3.60 • When mounting slitting cutters, use spacer rings. • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. For tools, see pages: GM-DG (314). L Flb Flf TP MB-M Tapping Chucks with the MB Modular Connection System SS d2 D1 Flb Flf L1 kg Designation SS Tap min Tap max L 1 L D 1 d 2 Flf Flb TP MB50-M 3-12 MB50 M1 M14 60.0 72.00 36.00 19.00 7.5 7.5 0.784 TP MB50-M 8-20 MB50 M4.5 M20 - 106.00 53.00 31.00 12.5 12.5 1.600 TP MB63-M 3-12 MB63 M1 M14 58.0 70.00 36.00 19.00 7.5 7.5 1.135 TP MB63-M 8-20 MB63 M4.5 M20 93.0 104.00 53.00 31.00 12.5 12.5 1.875 • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. L2 L1 TCS-DIN Quick Change Tap Collets D3 d2 D1 for Solid Taps S L4 kg Designation d 2 (1) S (2) S 1 (3) S 2 (4) D 1 D 3 L 1 L 2 L 4 TCS #1 DIN 6-4.9 6.00 4.90 M4.5, M6 M8 30.00 19.00 7.0 21.50 17.0 0.082 TCS #1 DIN 8-6.2 8.00 6.20 M8 - 30.00 19.00 7.0 21.50 17.0 0.100 TCS #1 DIN 9-7 9.00 7.00 - M12 30.00 19.00 7.0 21.50 17.0 0.077 TCS #1 DIN 10-8 10.00 8.00 M10 - 30.00 19.00 7.0 21.50 17.0 0.100 TCS #1 DIN 11-9 11.00 9.00 M14 M14 30.00 19.00 7.0 21.50 17.0 0.479 TCS #2 DIN 8X6.2 8.00 6.20 M8 - 48.00 31.00 11.0 35.00 30.0 0.280 TCS #2 DIN 9X 7 9.00 7.00 - M12 48.00 31.00 17.0 35.00 30.0 0.275 TCS #2 DIN 10X 8 10.00 8.00 M10 - 48.00 31.00 17.0 35.00 30.0 0.275 TCS #2 DIN 11X 9 11.00 9.00 - M14 48.00 31.00 17.0 35.00 30.0 0.479 TCS #2 DIN 12X 9 12.00 9.00 - M16 48.00 31.00 17.0 35.00 30.0 0.270 TCS #2 DIN 14X11 14.00 11.00 - M18 48.00 31.00 17.0 35.00 30.0 0.245 TCS #2 DIN 16X12 16.00 12.00 - M20 48.00 31.00 17.0 35.00 30.0 0.240 (1) According to tap shank size. (2) Square size. (3) Tap size according to DIN371 (4) Tap size according to DIN376/374 758 ISCAR
