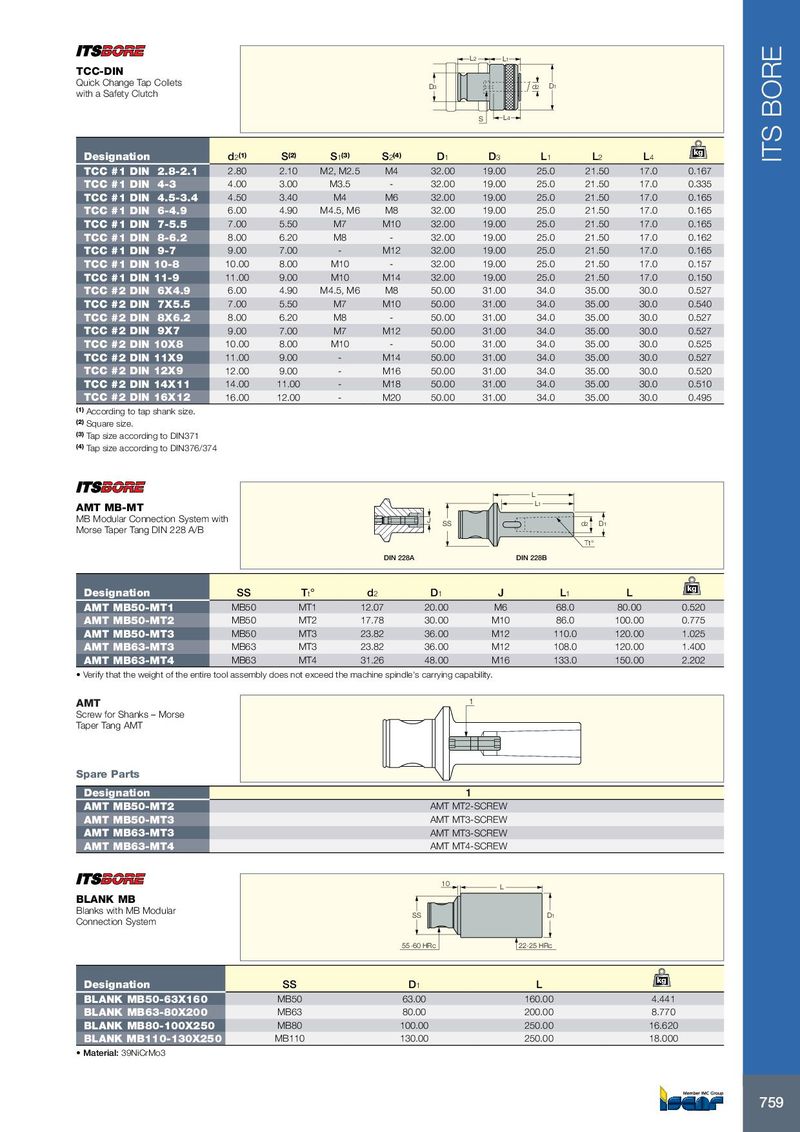

L2 L1 TCC-DIN Quick Change Tap Collets D3 d2 D1 with a Safety Clutch S L4 kg Designation d 2 (1) S (2) S 1 (3) S 2 (4) D 1 D 3 L 1 L 2 L 4 ITS BORE TCC #1 DIN 2.8-2.1 2.80 2.10 M2, M2.5 M4 32.00 19.00 25.0 21.50 17.0 0.167 TCC #1 DIN 4-3 4.00 3.00 M3.5 - 32.00 19.00 25.0 21.50 17.0 0.335 TCC #1 DIN 4.5-3.4 4.50 3.40 M4 M6 32.00 19.00 25.0 21.50 17.0 0.165 TCC #1 DIN 6-4.9 6.00 4.90 M4.5, M6 M8 32.00 19.00 25.0 21.50 17.0 0.165 TCC #1 DIN 7-5.5 7.00 5.50 M7 M10 32.00 19.00 25.0 21.50 17.0 0.165 TCC #1 DIN 8-6.2 8.00 6.20 M8 - 32.00 19.00 25.0 21.50 17.0 0.162 TCC #1 DIN 9-7 9.00 7.00 - M12 32.00 19.00 25.0 21.50 17.0 0.165 TCC #1 DIN 10-8 10.00 8.00 M10 - 32.00 19.00 25.0 21.50 17.0 0.157 TCC #1 DIN 11-9 11.00 9.00 M10 M14 32.00 19.00 25.0 21.50 17.0 0.150 TCC #2 DIN 6X4.9 6.00 4.90 M4.5, M6 M8 50.00 31.00 34.0 35.00 30.0 0.527 TCC #2 DIN 7X5.5 7.00 5.50 M7 M10 50.00 31.00 34.0 35.00 30.0 0.540 TCC #2 DIN 8X6.2 8.00 6.20 M8 - 50.00 31.00 34.0 35.00 30.0 0.527 TCC #2 DIN 9X7 9.00 7.00 M7 M12 50.00 31.00 34.0 35.00 30.0 0.527 TCC #2 DIN 10X8 10.00 8.00 M10 - 50.00 31.00 34.0 35.00 30.0 0.525 TCC #2 DIN 11X9 11.00 9.00 - M14 50.00 31.00 34.0 35.00 30.0 0.527 TCC #2 DIN 12X9 12.00 9.00 - M16 50.00 31.00 34.0 35.00 30.0 0.520 TCC #2 DIN 14X11 14.00 11.00 - M18 50.00 31.00 34.0 35.00 30.0 0.510 TCC #2 DIN 16X12 16.00 12.00 - M20 50.00 31.00 34.0 35.00 30.0 0.495 (1) According to tap shank size. (2) Square size. (3) Tap size according to DIN371 (4) Tap size according to DIN376/374 L L 1 AMT MB-MT MB Modular Connection System with J SS d 2 D 1 Morse Taper Tang DIN 228 A/B Tt° DIN 228A DIN 228B kg Designation SS T t ° d 2 D 1 J L 1 L AMT MB50-MT1 MB50 MT1 12.07 20.00 M6 68.0 80.00 0.520 AMT MB50-MT2 MB50 MT2 17.78 30.00 M10 86.0 100.00 0.775 AMT MB50-MT3 MB50 MT3 23.82 36.00 M12 110.0 120.00 1.025 AMT MB63-MT3 MB63 MT3 23.82 36.00 M12 108.0 120.00 1.400 AMT MB63-MT4 MB63 MT4 31.26 48.00 M16 133.0 150.00 2.202 • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. AMT 1 Screw for Shanks – Morse Taper Tang AMT Spare Parts Designation 1 AMT MB50-MT2 AMT MT2-SCREW AMT MB50-MT3 AMT MT3-SCREW AMT MB63-MT3 AMT MT3-SCREW AMT MB63-MT4 AMT MT4-SCREW 10 L BLANK MB Blanks with MB Modular SS D1 Connection System 55-60 HRc 22-25 HRc kg Designation SS D 1 L BLANK MB50-63X160 MB50 63.00 160.00 4.441 BLANK MB63-80X200 MB63 80.00 200.00 8.770 BLANK MB80-100X250 MB80 100.00 250.00 16.620 BLANK MB110-130X250 MB110 130.00 250.00 18.000 • Material: 39NiCrMo3 759
