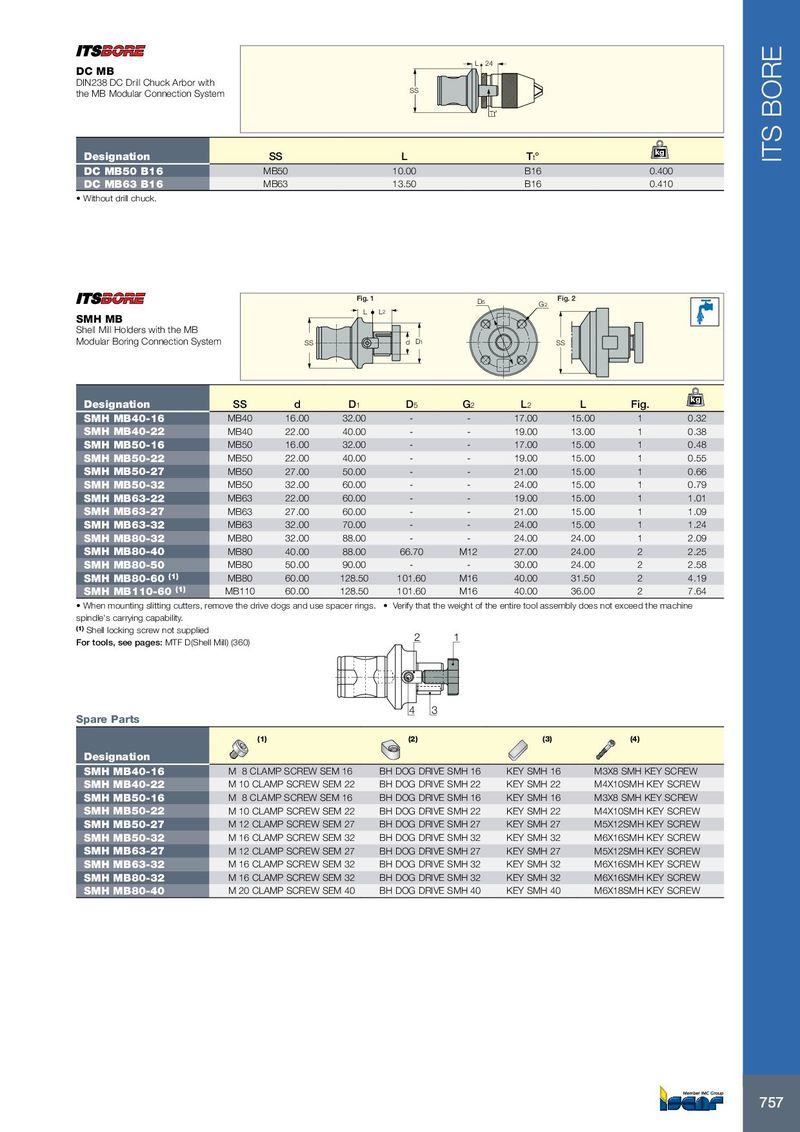

L 24 DC MB DIN238 DC Drill Chuck Arbor with the MB Modular Connection System SS Tt˚ kg Designation SS L T t ° ITS BORE DC MB50 B16 MB50 10.00 B16 0.400 DC MB63 B16 MB63 13.50 B16 0.410 • Without drill chuck. Fig. 1 D5 Fig. 2 G2 L L2 SMH MB Shell Mill Holders with the MB Modular Boring Connection System SS d D1 SS kg Designation SS d D 1 D 5 G 2 L 2 L Fig. SMH MB40-16 MB40 16.00 32.00 - - 17.00 15.00 1 0.32 SMH MB40-22 MB40 22.00 40.00 - - 19.00 13.00 1 0.38 SMH MB50-16 MB50 16.00 32.00 - - 17.00 15.00 1 0.48 SMH MB50-22 MB50 22.00 40.00 - - 19.00 15.00 1 0.55 SMH MB50-27 MB50 27.00 50.00 - - 21.00 15.00 1 0.66 SMH MB50-32 MB50 32.00 60.00 - - 24.00 15.00 1 0.79 SMH MB63-22 MB63 22.00 60.00 - - 19.00 15.00 1 1.01 SMH MB63-27 MB63 27.00 60.00 - - 21.00 15.00 1 1.09 SMH MB63-32 MB63 32.00 70.00 - - 24.00 15.00 1 1.24 SMH MB80-32 MB80 32.00 88.00 - - 24.00 24.00 1 2.09 SMH MB80-40 MB80 40.00 88.00 66.70 M12 27.00 24.00 2 2.25 SMH MB80-50 MB80 50.00 90.00 - - 30.00 24.00 2 2.58 SMH MB80-60 (1) MB80 60.00 128.50 101.60 M16 40.00 31.50 2 4.19 SMH MB110-60 (1) MB110 60.00 128.50 101.60 M16 40.00 36.00 2 7.64 • When mounting slitting cutters, remove the drive dogs and use spacer rings. • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. (1) Shell locking screw not supplied For tools, see pages: MTF D(Shell Mill) (360) 2 1 4 3 Spare Parts (1) (2) (3) (4) Designation SMH MB40-16 M 8 CLAMP SCREW SEM 16 BH DOG DRIVE SMH 16 KEY SMH 16 M3X8 SMH KEY SCREW SMH MB40-22 M 10 CLAMP SCREW SEM 22 BH DOG DRIVE SMH 22 KEY SMH 22 M4X10SMH KEY SCREW SMH MB50-16 M 8 CLAMP SCREW SEM 16 BH DOG DRIVE SMH 16 KEY SMH 16 M3X8 SMH KEY SCREW SMH MB50-22 M 10 CLAMP SCREW SEM 22 BH DOG DRIVE SMH 22 KEY SMH 22 M4X10SMH KEY SCREW SMH MB50-27 M 12 CLAMP SCREW SEM 27 BH DOG DRIVE SMH 27 KEY SMH 27 M5X12SMH KEY SCREW SMH MB50-32 M 16 CLAMP SCREW SEM 32 BH DOG DRIVE SMH 32 KEY SMH 32 M6X16SMH KEY SCREW SMH MB63-27 M 12 CLAMP SCREW SEM 27 BH DOG DRIVE SMH 27 KEY SMH 27 M5X12SMH KEY SCREW SMH MB63-32 M 16 CLAMP SCREW SEM 32 BH DOG DRIVE SMH 32 KEY SMH 32 M6X16SMH KEY SCREW SMH MB80-32 M 16 CLAMP SCREW SEM 32 BH DOG DRIVE SMH 32 KEY SMH 32 M6X16SMH KEY SCREW SMH MB80-40 M 20 CLAMP SCREW SEM 40 BH DOG DRIVE SMH 40 KEY SMH 40 M6X18SMH KEY SCREW 757
