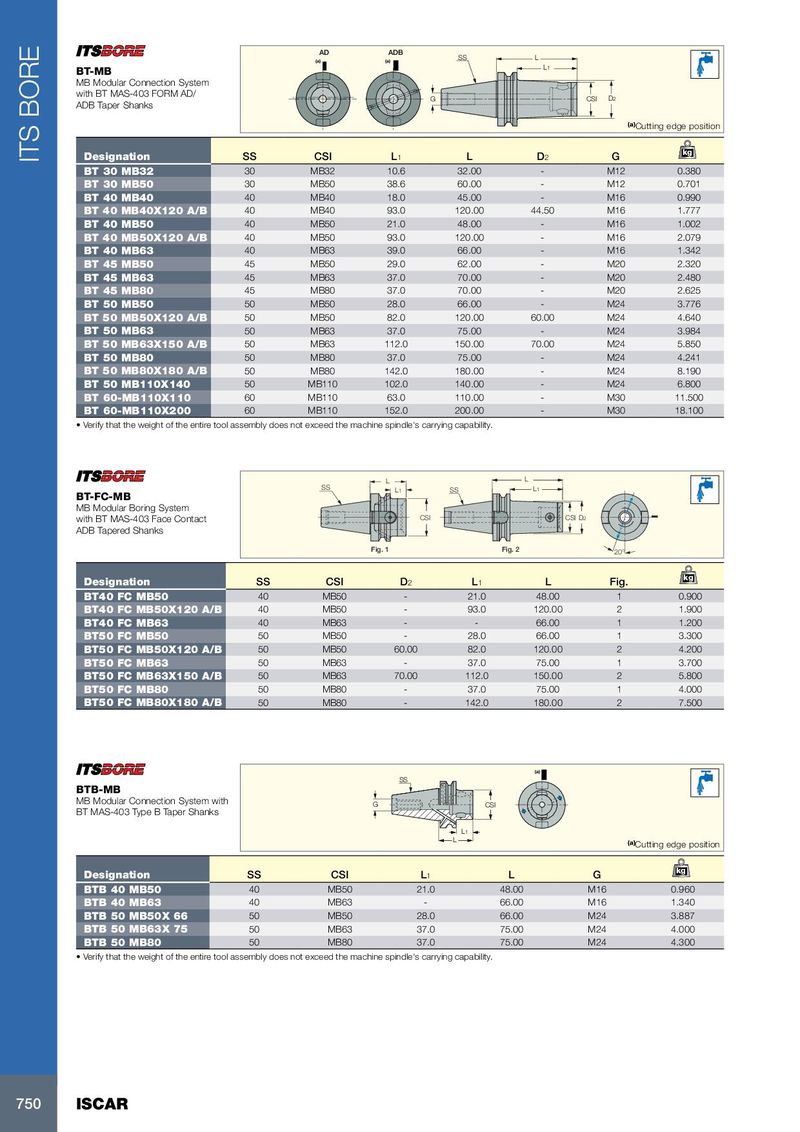

AD ADB (a) (a) SS L L 1 BT-MB MB Modular Connection System with BT MAS-403 FORM AD/ G CSI D2 ADB Taper Shanks (a) Cutting edge position kg ITS BORE Designation SS CSI L 1 L D 2 G BT 30 MB32 30 MB32 10.6 32.00 - M12 0.380 BT 30 MB50 30 MB50 38.6 60.00 - M12 0.701 BT 40 MB40 40 MB40 18.0 45.00 - M16 0.990 BT 40 MB40X120 A/B 40 MB40 93.0 120.00 44.50 M16 1.777 BT 40 MB50 40 MB50 21.0 48.00 - M16 1.002 BT 40 MB50X120 A/B 40 MB50 93.0 120.00 - M16 2.079 BT 40 MB63 40 MB63 39.0 66.00 - M16 1.342 BT 45 MB50 45 MB50 29.0 62.00 - M20 2.320 BT 45 MB63 45 MB63 37.0 70.00 - M20 2.480 BT 45 MB80 45 MB80 37.0 70.00 - M20 2.625 BT 50 MB50 50 MB50 28.0 66.00 - M24 3.776 BT 50 MB50X120 A/B 50 MB50 82.0 120.00 60.00 M24 4.640 BT 50 MB63 50 MB63 37.0 75.00 - M24 3.984 BT 50 MB63X150 A/B 50 MB63 112.0 150.00 70.00 M24 5.850 BT 50 MB80 50 MB80 37.0 75.00 - M24 4.241 BT 50 MB80X180 A/B 50 MB80 142.0 180.00 - M24 8.190 BT 50 MB110X140 50 MB110 102.0 140.00 - M24 6.800 BT 60-MB110X110 60 MB110 63.0 110.00 - M30 11.500 BT 60-MB110X200 60 MB110 152.0 200.00 - M30 18.100 • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. L L SS L1 SS L1 BT-FC-MB MB Modular Boring System with BT MAS-403 Face Contact CSI CSI D2 ADB Tapered Shanks Fig. 1 Fig. 2 20° kg Designation SS CSI D 2 L 1 L Fig. BT40 FC MB50 40 MB50 - 21.0 48.00 1 0.900 BT40 FC MB50X120 A/B 40 MB50 - 93.0 120.00 2 1.900 BT40 FC MB63 40 MB63 - - 66.00 1 1.200 BT50 FC MB50 50 MB50 - 28.0 66.00 1 3.300 BT50 FC MB50X120 A/B 50 MB50 60.00 82.0 120.00 2 4.200 BT50 FC MB63 50 MB63 - 37.0 75.00 1 3.700 BT50 FC MB63X150 A/B 50 MB63 70.00 112.0 150.00 2 5.800 BT50 FC MB80 50 MB80 - 37.0 75.00 1 4.000 BT50 FC MB80X180 A/B 50 MB80 - 142.0 180.00 2 7.500 (a) SS BTB-MB MB Modular Connection System with G CSI BT MAS-403 Type B Taper Shanks L1 L (a) Cutting edge position kg Designation SS CSI L 1 L G BTB 40 MB50 40 MB50 21.0 48.00 M16 0.960 BTB 40 MB63 40 MB63 - 66.00 M16 1.340 BTB 50 MB50X 66 50 MB50 28.0 66.00 M24 3.887 BTB 50 MB63X 75 50 MB63 37.0 75.00 M24 4.000 BTB 50 MB80 50 MB80 37.0 75.00 M24 4.300 • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. 750 ISCAR
