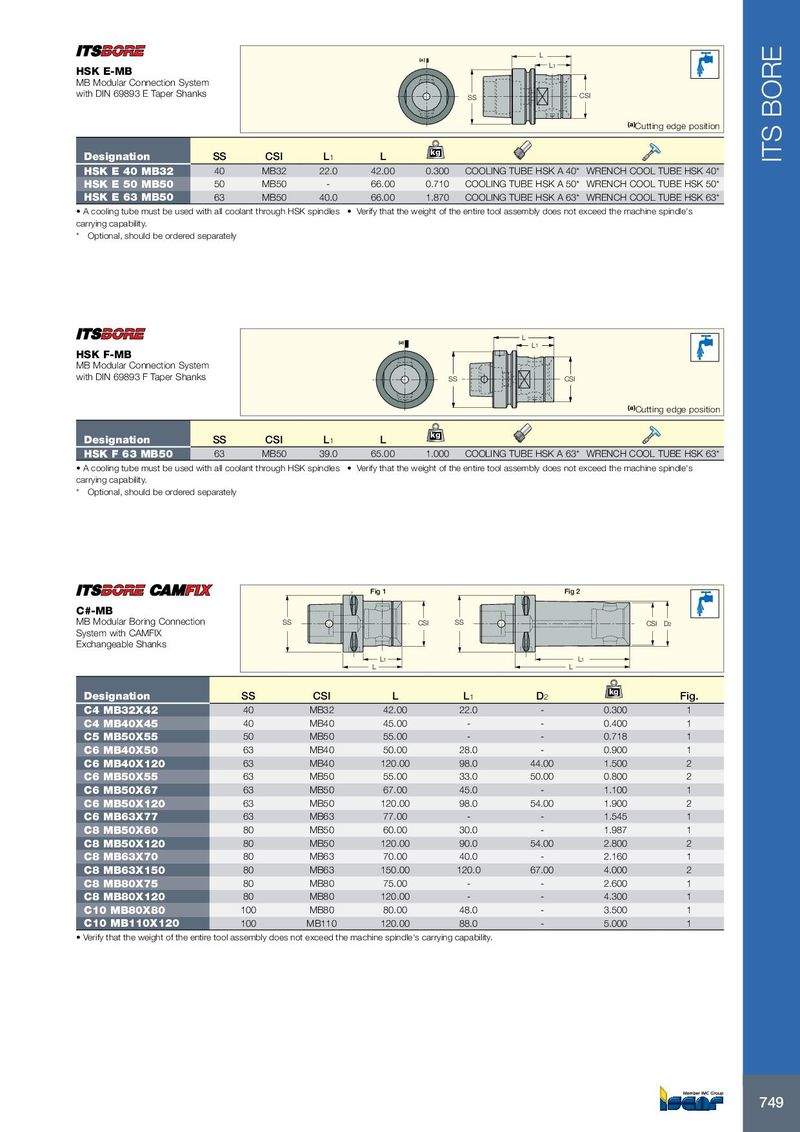

Каталог Iscar вращающийся инструмент 2017 - страница 753

(a) L L 1 HSK E-MB MB Modular Connection System with DIN 69893 E Taper Shanks SS CSI (a) Cutting edge position kg Designation SS CSI L 1 L ITS BORE HSK E 40 MB32 40 MB32 22.0 42.00 0.300 COOLING TUBE HSK A 40* WRENCH COOL TUBE HSK 40* HSK E 50 MB50 50 MB50 - 66.00 0.710 COOLING TUBE HSK A 50* WRENCH COOL TUBE HSK 50* HSK E 63 MB50 63 MB50 40.0 66.00 1.870 COOLING TUBE HSK A 63* WRENCH COOL TUBE HSK 63* • A cooling tube must be used with all coolant through HSK spindles • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. * Optional, should be ordered separately (a) L L 1 HSK F-MB MB Modular Connection System with DIN 69893 F Taper Shanks SS CSI (a) Cutting edge position kg Designation SS CSI L 1 L HSK F 63 MB50 63 MB50 39.0 65.00 1.000 COOLING TUBE HSK A 63* WRENCH COOL TUBE HSK 63* • A cooling tube must be used with all coolant through HSK spindles • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. * Optional, should be ordered separately Fig 1 Fig 2 C#-MB MB Modular Boring Connection SS CSI SS CSI D2 System with CAMFIX Exchangeable Shanks L 1 L 1 L L kg Designation SS CSI L L 1 D 2 Fig. C4 MB32X42 40 MB32 42.00 22.0 - 0.300 1 C4 MB40X45 40 MB40 45.00 - - 0.400 1 C5 MB50X55 50 MB50 55.00 - - 0.718 1 C6 MB40X50 63 MB40 50.00 28.0 - 0.900 1 C6 MB40X120 63 MB40 120.00 98.0 44.00 1.500 2 C6 MB50X55 63 MB50 55.00 33.0 50.00 0.800 2 C6 MB50X67 63 MB50 67.00 45.0 - 1.100 1 C6 MB50X120 63 MB50 120.00 98.0 54.00 1.900 2 C6 MB63X77 63 MB63 77.00 - - 1.545 1 C8 MB50X60 80 MB50 60.00 30.0 - 1.987 1 C8 MB50X120 80 MB50 120.00 90.0 54.00 2.800 2 C8 MB63X70 80 MB63 70.00 40.0 - 2.160 1 C8 MB63X150 80 MB63 150.00 120.0 67.00 4.000 2 C8 MB80X75 80 MB80 75.00 - - 2.600 1 C8 MB80X120 80 MB80 120.00 - - 4.300 1 C10 MB80X80 100 MB80 80.00 48.0 - 3.500 1 C10 MB110X120 100 MB110 120.00 88.0 - 5.000 1 • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. 749
