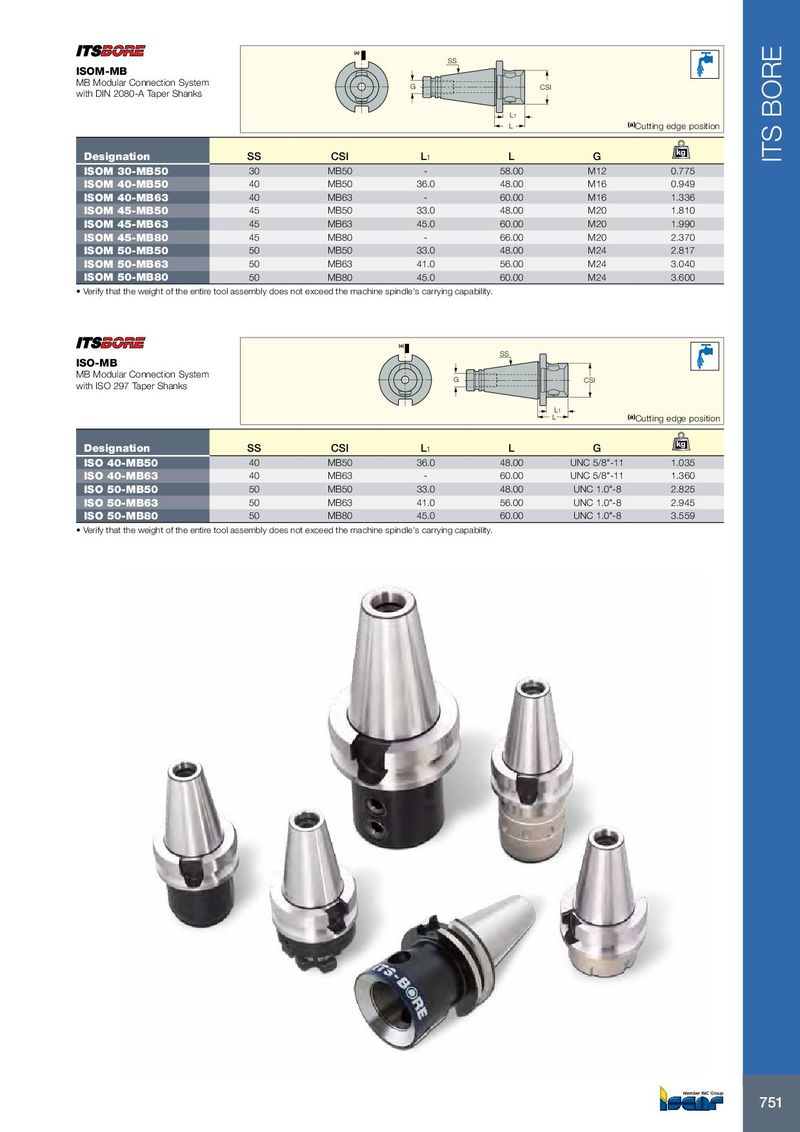

(a) SS ISOM-MB MB Modular Connection System G CSI with DIN 2080-A Taper Shanks L1 L (a) Cutting edge position kg Designation SS CSI L 1 L G ITS BORE ISOM 30-MB50 30 MB50 - 58.00 M12 0.775 ISOM 40-MB50 40 MB50 36.0 48.00 M16 0.949 ISOM 40-MB63 40 MB63 - 60.00 M16 1.336 ISOM 45-MB50 45 MB50 33.0 48.00 M20 1.810 ISOM 45-MB63 45 MB63 45.0 60.00 M20 1.990 ISOM 45-MB80 45 MB80 - 66.00 M20 2.370 ISOM 50-MB50 50 MB50 33.0 48.00 M24 2.817 ISOM 50-MB63 50 MB63 41.0 56.00 M24 3.040 ISOM 50-MB80 50 MB80 45.0 60.00 M24 3.600 • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. (a) SS ISO-MB MB Modular Connection System G CSI with ISO 297 Taper Shanks L1 L (a) Cutting edge position kg Designation SS CSI L 1 L G ISO 40-MB50 40 MB50 36.0 48.00 UNC 5/8"-11 1.035 ISO 40-MB63 40 MB63 - 60.00 UNC 5/8"-11 1.360 ISO 50-MB50 50 MB50 33.0 48.00 UNC 1.0"-8 2.825 ISO 50-MB63 50 MB63 41.0 56.00 UNC 1.0"-8 2.945 ISO 50-MB80 50 MB80 45.0 60.00 UNC 1.0"-8 3.559 • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. 751
