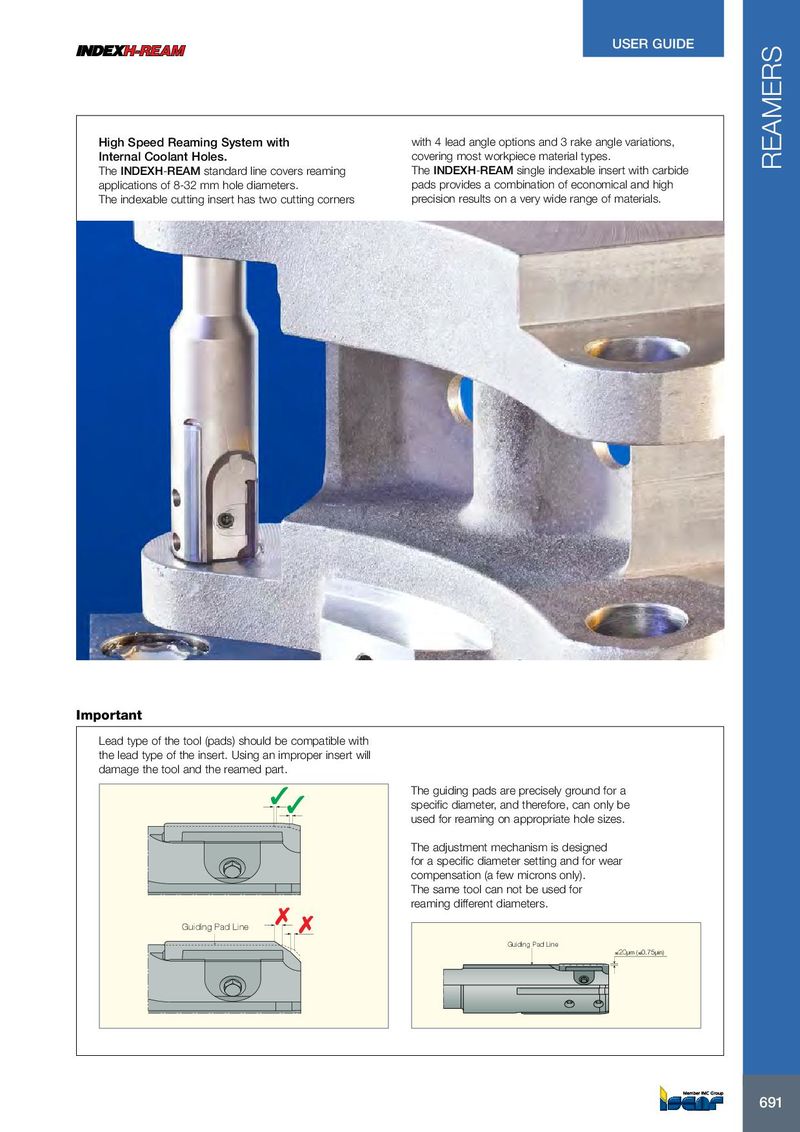

USER GUIDE High Speed Reaming System with with 4 lead angle options and 3 rake angle variations, Internal Coolant Holes. covering most workpiece material types. REAMERS The INDEXH-REAM standard line covers reaming The INDEXH-REAM single indexable insert with carbide applications of 8-32 mm hole diameters. pads provides a combination of economical and high The indexable cutting insert has two cutting corners precision results on a very wide range of materials. Important Lead type of the tool (pads) should be compatible with the lead type of the insert. Using an improper insert will damage the tool and the reamed part. The guiding pads are precisely ground for a specific diameter, and therefore, can only be used for reaming on appropriate hole sizes. The adjustment mechanism is designed for a specific diameter setting and for wear compensation (a few microns only). The same tool can not be used for reaming different diameters. Guiding Pad Line Guiding Pad Line ≤20µm (≤0.75µin) 691 691
