Каталог Iscar вращающийся инструмент 2017 - страница 696

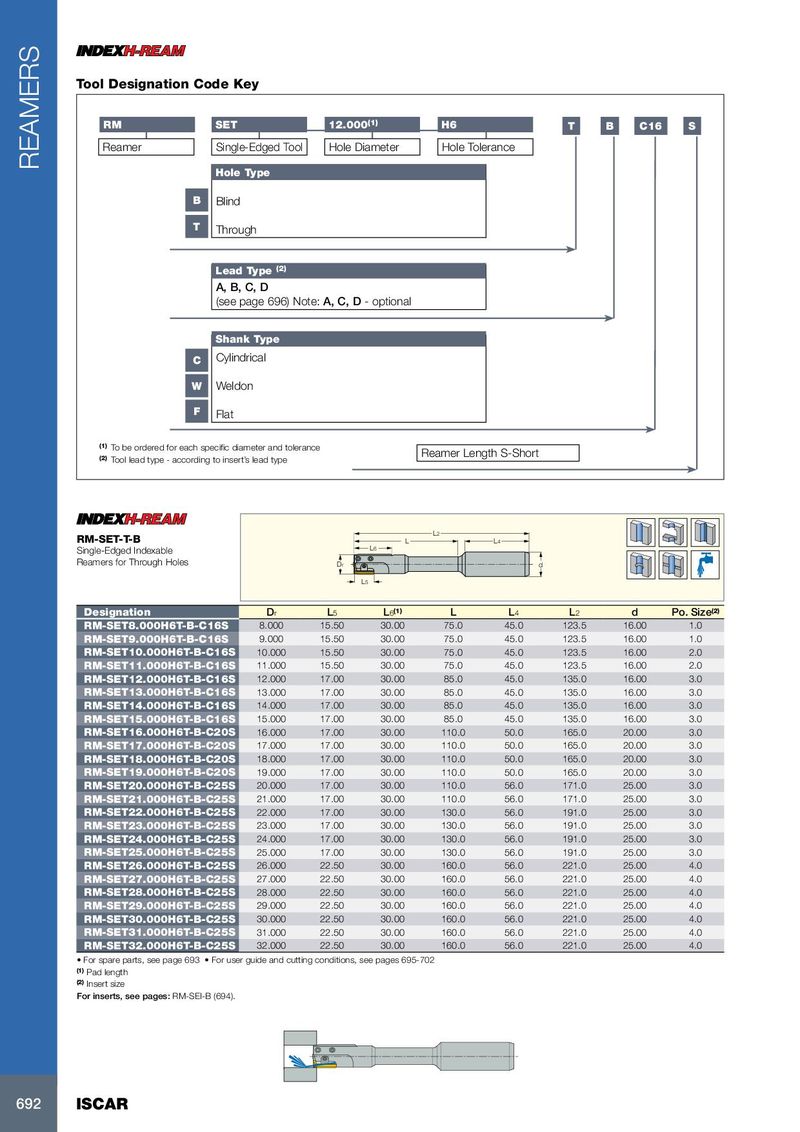

Tool Designation Code Key RM SET 12.000 (1) H6 T B C16 S Reamer Single-Edged Tool Hole Diameter Hole Tolerance REAMERS Hole Type B Blind T Through Lead Type (2) A, B, C, D (see page 696) Note: A, C, D - optional Shank Type C Cylindrical W Weldon F Flat (1) To be ordered for each specific diameter and tolerance (2) Reamer Length S-Short Tool lead type - according to insert’s lead type L2 RM-SET-T-B L L4 Single-Edged Indexable L6 Reamers for Through Holes Dr d L5 Designation D r L 5 L 6 (1) L L 4 L 2 d Po. Size (2) RM-SET8.000H6T-B-C16S 8.000 15.50 30.00 75.0 45.0 123.5 16.00 1.0 RM-SET9.000H6T-B-C16S 9.000 15.50 30.00 75.0 45.0 123.5 16.00 1.0 RM-SET10.000H6T-B-C16S 10.000 15.50 30.00 75.0 45.0 123.5 16.00 2.0 RM-SET11.000H6T-B-C16S 11.000 15.50 30.00 75.0 45.0 123.5 16.00 2.0 RM-SET12.000H6T-B-C16S 12.000 17.00 30.00 85.0 45.0 135.0 16.00 3.0 RM-SET13.000H6T-B-C16S 13.000 17.00 30.00 85.0 45.0 135.0 16.00 3.0 RM-SET14.000H6T-B-C16S 14.000 17.00 30.00 85.0 45.0 135.0 16.00 3.0 RM-SET15.000H6T-B-C16S 15.000 17.00 30.00 85.0 45.0 135.0 16.00 3.0 RM-SET16.000H6T-B-C20S 16.000 17.00 30.00 110.0 50.0 165.0 20.00 3.0 RM-SET17.000H6T-B-C20S 17.000 17.00 30.00 110.0 50.0 165.0 20.00 3.0 RM-SET18.000H6T-B-C20S 18.000 17.00 30.00 110.0 50.0 165.0 20.00 3.0 RM-SET19.000H6T-B-C20S 19.000 17.00 30.00 110.0 50.0 165.0 20.00 3.0 RM-SET20.000H6T-B-C25S 20.000 17.00 30.00 110.0 56.0 171.0 25.00 3.0 RM-SET21.000H6T-B-C25S 21.000 17.00 30.00 110.0 56.0 171.0 25.00 3.0 RM-SET22.000H6T-B-C25S 22.000 17.00 30.00 130.0 56.0 191.0 25.00 3.0 RM-SET23.000H6T-B-C25S 23.000 17.00 30.00 130.0 56.0 191.0 25.00 3.0 RM-SET24.000H6T-B-C25S 24.000 17.00 30.00 130.0 56.0 191.0 25.00 3.0 RM-SET25.000H6T-B-C25S 25.000 17.00 30.00 130.0 56.0 191.0 25.00 3.0 RM-SET26.000H6T-B-C25S 26.000 22.50 30.00 160.0 56.0 221.0 25.00 4.0 RM-SET27.000H6T-B-C25S 27.000 22.50 30.00 160.0 56.0 221.0 25.00 4.0 RM-SET28.000H6T-B-C25S 28.000 22.50 30.00 160.0 56.0 221.0 25.00 4.0 RM-SET29.000H6T-B-C25S 29.000 22.50 30.00 160.0 56.0 221.0 25.00 4.0 RM-SET30.000H6T-B-C25S 30.000 22.50 30.00 160.0 56.0 221.0 25.00 4.0 RM-SET31.000H6T-B-C25S 31.000 22.50 30.00 160.0 56.0 221.0 25.00 4.0 RM-SET32.000H6T-B-C25S 32.000 22.50 30.00 160.0 56.0 221.0 25.00 4.0 • For spare parts, see page 693 • For user guide and cutting conditions, see pages 695-702 (1) Pad length (2) Insert size For inserts, see pages: RM-SEI-B (694). 692 ISCAR
