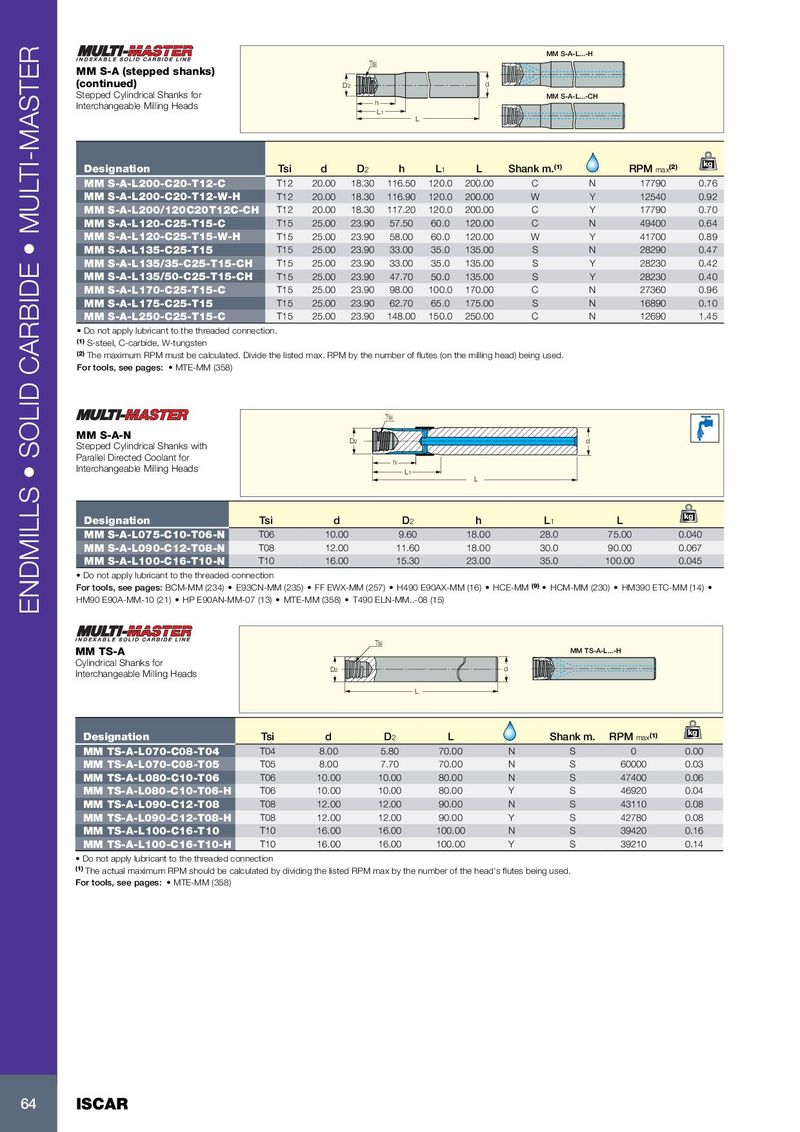

| MM S-A (stepped shanks) | Tsi | MM S-A-L...-H |
| (continued) | d D2 | |
| Stepped Cylindrical Shanks for | MM S-A-L...-CH | |
| Interchangeable Milling Heads | L1 L h |
| Designation | Tsi | d | D2 | h | L1 | L | Shank m.(1) | RPMmax(2) | kg | |
| MM S-A-L200-C20-T12-C | T12 | 20.00 | 18.30 | 116.50 | 120.0 | 200.00 | C | N | 17790 | 0.76 |
| MM S-A-L200-C20-T12-W-H | T12 | 20.00 | 18.30 | 116.90 | 120.0 | 200.00 | W | Y | 12540 | 0.92 |
| MM S-A-L200/120C20T12C-CH | T12 | 20.00 | 18.30 | 117.20 | 120.0 | 200.00 | C | Y | 17790 | 0.70 |
| MM S-A-L120-C25-T15-C | T15 | 25.00 | 23.90 | 57.50 | 60.0 | 120.00 | C | N | 49400 | 0.64 |
| MM S-A-L120-C25-T15-W-H | T15 | 25.00 | 23.90 | 58.00 | 60.0 | 120.00 | W | Y | 41700 | 0.89 |
| MM S-A-L135-C25-T15 | T15 | 25.00 | 23.90 | 33.00 | 35.0 | 135.00 | S | N | 28290 | 0.47 |
| MM S-A-L135/35-C25-T15-CH | T15 | 25.00 | 23.90 | 33.00 | 35.0 | 135.00 | S | Y | 28230 | 0.42 |
| MM S-A-L135/50-C25-T15-CH | T15 | 25.00 | 23.90 | 47.70 | 50.0 | 135.00 | S | Y | 28230 | 0.40 |
| MM S-A-L170-C25-T15-C | T15 | 25.00 | 23.90 | 98.00 | 100.0 | 170.00 | C | N | 27360 | 0.96 |
| MM S-A-L175-C25-T15 | T15 | 25.00 | 23.90 | 62.70 | 65.0 | 175.00 | S | N | 16890 | 0.10 |
| MM S-A-L250-C25-T15-C | T15 | 25.00 | 23.90 | 148.00 | 150.0 | 250.00 | C | N | 12690 | 1.45 |
- Do not apply lubricant to the threaded connection.
(1) S-steel, C-carbide, W-tungsten (2) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used. For tools, see pages: MTE-MM (358)
| Tsi | |||||||
| MM S-A-N Stepped Cylindrical Shanks with Parallel Directed Coolant for Interchangeable Milling Heads | D2 | h L1 | L | d | |||
| Designation | Tsi | d | D2 | h | L1 | L | kg |
| MM S-A-L075-C10-T06-N | T06 | 10.00 | 9.60 | 18.00 | 28.0 | 75.00 | 0.040 |
| MM S-A-L090-C12-T08-N | T08 | 12.00 | 11.60 | 18.00 | 30.0 | 90.00 | 0.067 |
| MM S-A-L100-C16-T10-N | T10 | 16.00 | 15.30 | 23.00 | 35.0 | 100.00 | 0.045 |
- Do not apply lubricant to the threaded connection
For tools, see pages: BCM-MM (234) E93CN-MM (235) FF EWX-MM (257) H490 E90AX-MM (16) HCE-MM (9) HCM-MM (230) HM390 ETC-MM (14) HM90 E90A-MM-10 (21) HP E90AN-MM-07 (13) MTE-MM (358) T490 ELN-MM..-08 (15)
| MM TS-A | Tsi | MM TS-A | -L...-H | |||||
| Cylindrical Shanks for Interchangeable Milling Heads | D2 | d | ||||||
| L | ||||||||
| Designation | Tsi | d | D2 | L | Shank m. | RPMmax(1) | kg | |
| MM TS-A-L070-C08-T04 | T04 | 8.00 | 5.80 | 70.00 | N | S | 0 | 0.00 |
| MM TS-A-L070-C08-T05 | T05 | 8.00 | 7.70 | 70.00 | N | S | 60000 | 0.03 |
| MM TS-A-L080-C10-T06 | T06 | 10.00 | 10.00 | 80.00 | N | S | 47400 | 0.06 |
| MM TS-A-L080-C10-T06-H | T06 | 10.00 | 10.00 | 80.00 | Y | S | 46920 | 0.04 |
| MM TS-A-L090-C12-T08 | T08 | 12.00 | 12.00 | 90.00 | N | S | 43110 | 0.08 |
| MM TS-A-L090-C12-T08-H | T08 | 12.00 | 12.00 | 90.00 | Y | S | 42780 | 0.08 |
| MM TS-A-L100-C16-T10 | T10 | 16.00 | 16.00 | 100.00 | N | S | 39420 | 0.16 |
| MM TS-A-L100-C16-T10-H | T10 | 16.00 | 16.00 | 100.00 | Y | S | 39210 | 0.14 |
- Do not apply lubricant to the threaded connection
(1) The actual maximum RPM should be calculated by dividing the listed RPM max by the number of the head's flutes being used. For tools, see pages: MTE-MM (358)
