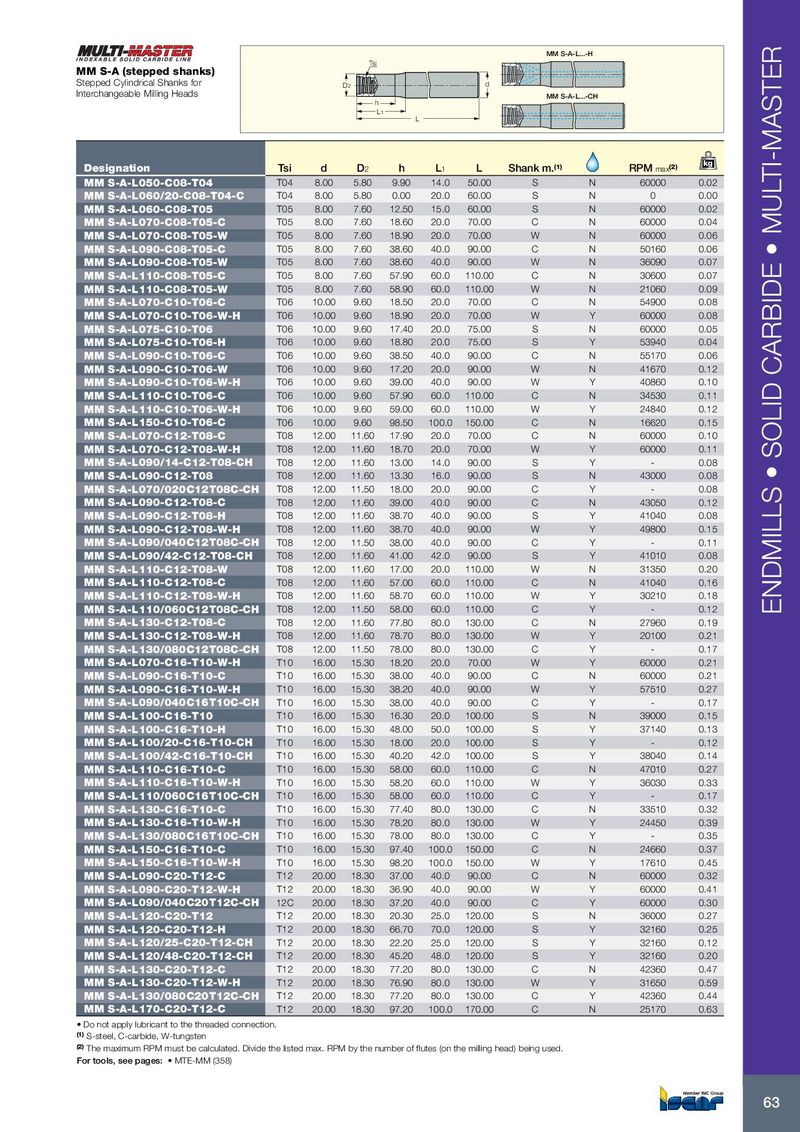

| D2 | d Tsi | MM S-A-L...-H |
| MM S-A-L...-CH | ||
| L1 L h |
| Designation MM S-A-L050-C08-T04 | Tsi T04 | d 800 | D2 580 | h 990 | L1 140 | L 5000 | Shank m.(1) S | RPMmax(2) N 60000 | kg 002 |
| MM S-A-L060/20-C08-T04-C | T04 | . 8.00 | . 5.80 | . 0.00 | . 20.0 | . 60.00 | S | N 0 | . 0.00 |
| MM S-A-L060-C08-T05 | T05 | 8.00 | 7.60 | 12.50 | 15.0 | 60.00 | S | N 60000 | 0.02 |
| MM S-A-L070-C08-T05-C | T05 | 8.00 | 7.60 | 18.60 | 20.0 | 70.00 | C | N 60000 | 0.04 |
| MM S-A-L070-C08-T05-W | T05 | 8.00 | 7.60 | 18.90 | 20.0 | 70.00 | W | N 60000 | 0.06 |
| MM S-A-L090-C08-T05-C | T05 | 8.00 | 7.60 | 38.60 | 40.0 | 90.00 | C | N 50160 | 0.06 |
| MM S-A-L090-C08-T05-W | T05 | 8.00 | 7.60 | 38.60 | 40.0 | 90.00 | W | N 36090 | 0.07 |
| MM S-A-L110-C08-T05-C | T05 | 8.00 | 7.60 | 57.90 | 60.0 | 110.00 | C | N 30600 | 0.07 |
| MM S-A-L110-C08-T05-W | T05 | 8.00 | 7.60 | 58.90 | 60.0 | 110.00 | W | N 21060 | 0.09 |
| MM S-A-L070-C10-T06-C | T06 | 10.00 | 9.60 | 18.50 | 20.0 | 70.00 | C | N 54900 | 0.08 |
| MM S-A-L070-C10-T06-W-H | T06 | 10.00 | 9.60 | 18.90 | 20.0 | 70.00 | W | Y 60000 | 0.08 |
| MM S-A-L075-C10-T06 | T06 | 10.00 | 9.60 | 17.40 | 20.0 | 75.00 | S | N 60000 | 0.05 |
| MM S-A-L075-C10-T06-H | T06 | 10.00 | 9.60 | 18.80 | 20.0 | 75.00 | S | Y 53940 | 0.04 |
| MM S-A-L090-C10-T06-C | T06 | 10.00 | 9.60 | 38.50 | 40.0 | 90.00 | C | N 55170 | 0.06 |
| MM S-A-L090-C10-T06-W | T06 | 10.00 | 9.60 | 17.20 | 20.0 | 90.00 | W | N 41670 | 0.12 |
| MM S-A-L090-C10-T06-W-H | T06 | 10.00 | 9.60 | 39.00 | 40.0 | 90.00 | W | Y 40860 | 0.10 |
| MM S-A-L110-C10-T06-C | T06 | 10.00 | 9.60 | 57.90 | 60.0 | 110.00 | C | N 34530 | 0.11 |
| MM S-A-L110-C10-T06-W-H | T06 | 10.00 | 9.60 | 59.00 | 60.0 | 110.00 | W | Y 24840 | 0.12 |
| MM S-A-L150-C10-T06-C | T06 | 10.00 | 9.60 | 98.50 | 100.0 | 150.00 | C | N 16620 | 0.15 |
| MM S-A-L070-C12-T08-C | T08 | 12.00 | 11.60 | 17.90 | 20.0 | 70.00 | C | N 60000 | 0.10 |
| MM S-A-L070-C12-T08-W-H | T08 | 12.00 | 11.60 | 18.70 | 20.0 | 70.00 | W | Y 60000 | 0.11 |
| MM S-A-L090/14-C12-T08-CH | T08 | 12.00 | 11.60 | 13.00 | 14.0 | 90.00 | S | Y - | 0.08 |
| MM S-A-L090-C12-T08 | T08 | 12.00 | 11.60 | 13.30 | 16.0 | 90.00 | S | N 43000 | 0.08 |
| MM S-A-L070/020C12T08C-CH | T08 | 12.00 | 11.50 | 18.00 | 20.0 | 90.00 | C | Y - | 0.08 |
| MM S-A-L090-C12-T08-C | T08 | 12.00 | 11.60 | 39.00 | 40.0 | 90.00 | C | N 43050 | 0.12 |
| MM S-A-L090-C12-T08-H | T08 | 12.00 | 11.60 | 38.70 | 40.0 | 90.00 | S | Y 41040 | 0.08 |
| MM S-A-L090-C12-T08-W-H | T08 | 12.00 | 11.60 | 38.70 | 40.0 | 90.00 | W | Y 49800 | 0.15 |
| MM S-A-L090/040C12T08C-CH | T08 | 12.00 | 11.50 | 38.00 | 40.0 | 90.00 | C | Y - | 0.11 |
| MM S-A-L090/42-C12-T08-CH | T08 | 12.00 | 11.60 | 41.00 | 42.0 | 90.00 | S | Y 41010 | 0.08 |
| MM S-A-L110-C12-T08-W | T08 | 12.00 | 11.60 | 17.00 | 20.0 | 110.00 | W | N 31350 | 0.20 |
| MM S-A-L110-C12-T08-C | T08 | 12.00 | 11.60 | 57.00 | 60.0 | 110.00 | C | N 41040 | 0.16 |
| MM S-A-L110-C12-T08-W-H | T08 | 12.00 | 11.60 | 58.70 | 60.0 | 110.00 | W | Y 30210 | 0.18 |
| MM S-A-L110/060C12T08C-CH | T08 | 12.00 | 11.50 | 58.00 | 60.0 | 110.00 | C | Y - | 0.12 |
| MM S-A-L130-C12-T08-C | T08 | 12.00 | 11.60 | 77.80 | 80.0 | 130.00 | C | N 27960 | 0.19 |
| MM S-A-L130-C12-T08-W-H | T08 | 12.00 | 11.60 | 78.70 | 80.0 | 130.00 | W | Y 20100 | 0.21 |
| MM S-A-L130/080C12T08C-CH | T08 | 12.00 | 11.50 | 78.00 | 80.0 | 130.00 | C | Y - | 0.17 |
| MM S-A-L070-C16-T10-W-H | T10 | 16.00 | 15.30 | 18.20 | 20.0 | 70.00 | W | Y 60000 | 0.21 |
| MM S-A-L090-C16-T10-C | T10 | 16.00 | 15.30 | 38.00 | 40.0 | 90.00 | C | N 60000 | 0.21 |
| MM S-A-L090-C16-T10-W-H | T10 | 16.00 | 15.30 | 38.20 | 40.0 | 90.00 | W | Y 57510 | 0.27 |
| MM S-A-L090/040C16T10C-CH | T10 | 16.00 | 15.30 | 38.00 | 40.0 | 90.00 | C | Y - | 0.17 |
| MM S-A-L100-C16-T10 | T10 | 16.00 | 15.30 | 16.30 | 20.0 | 100.00 | S | N 39000 | 0.15 |
| MM S-A-L100-C16-T10-H | T10 | 16.00 | 15.30 | 48.00 | 50.0 | 100.00 | S | Y 37140 | 0.13 |
| MM S-A-L100/20-C16-T10-CH | T10 | 16.00 | 15.30 | 18.00 | 20.0 | 100.00 | S | Y - | 0.12 |
| MM S-A-L100/42-C16-T10-CH | T10 | 16.00 | 15.30 | 40.20 | 42.0 | 100.00 | S | Y 38040 | 0.14 |
| MM S-A-L110-C16-T10-C | T10 | 16.00 | 15.30 | 58.00 | 60.0 | 110.00 | C | N 47010 | 0.27 |
| MM S-A-L110-C16-T10-W-H | T10 | 16.00 | 15.30 | 58.20 | 60.0 | 110.00 | W | Y 36030 | 0.33 |
| MM S-A-L110/060C16T10C-CH | T10 | 16.00 | 15.30 | 58.00 | 60.0 | 110.00 | C | Y - | 0.17 |
| MM S-A-L130-C16-T10-C | T10 | 16.00 | 15.30 | 77.40 | 80.0 | 130.00 | C | N 33510 | 0.32 |
| MM S-A-L130-C16-T10-W-H | T10 | 16.00 | 15.30 | 78.20 | 80.0 | 130.00 | W | Y 24450 | 0.39 |
| MM S-A-L130/080C16T10C-CH | T10 | 16.00 | 15.30 | 78.00 | 80.0 | 130.00 | C | Y - | 0.35 |
| MM S-A-L150-C16-T10-C | T10 | 16.00 | 15.30 | 97.40 | 100.0 | 150.00 | C | N 24660 | 0.37 |
| MM S-A-L150-C16-T10-W-H | T10 | 16.00 | 15.30 | 98.20 | 100.0 | 150.00 | W | Y 17610 | 0.45 |
| MM S-A-L090-C20-T12-C | T12 | 20.00 | 18.30 | 37.00 | 40.0 | 90.00 | C | N 60000 | 0.32 |
| MM S-A-L090-C20-T12-W-H | T12 | 20.00 | 18.30 | 36.90 | 40.0 | 90.00 | W | Y 60000 | 0.41 |
| MM S-A-L090/040C20T12C-CH | 12C | 20.00 | 18.30 | 37.20 | 40.0 | 90.00 | C | Y 60000 | 0.30 |
| MM S-A-L120-C20-T12 | T12 | 20.00 | 18.30 | 20.30 | 25.0 | 120.00 | S | N 36000 | 0.27 |
| MM S-A-L120-C20-T12-H | T12 | 20.00 | 18.30 | 66.70 | 70.0 | 120.00 | S | Y 32160 | 0.25 |
| MM S-A-L120/25-C20-T12-CH | T12 | 20.00 | 18.30 | 22.20 | 25.0 | 120.00 | S | Y 32160 | 0.12 |
| MM S-A-L120/48-C20-T12-CH | T12 | 20.00 | 18.30 | 45.20 | 48.0 | 120.00 | S | Y 32160 | 0.20 |
| MM S-A-L130-C20-T12-C | T12 | 20.00 | 18.30 | 77.20 | 80.0 | 130.00 | C | N 42360 | 0.47 |
| MM S-A-L130-C20-T12-W-H | T12 | 20.00 | 18.30 | 76.90 | 80.0 | 130.00 | W | Y 31650 | 0.59 |
| MM S-A-L130/080C20T12C-CH MM S-A-L170-C20-T12-C | T12 T12 | 20.00 20.00 | 18.30 18.30 | 77.20 97.20 | 80.0 100.0 | 130.00 170.00 | C C | Y 42360 N 25170 | 0.44 0.63 |
- Do not apply lubricant to the threaded connection.
(1) S-steel, C-carbide, W-tungsten (2) The maximum RPM must be calculated. Divide the listed max. RPM by the number of flutes (on the milling head) being used. For tools, see pages: MTE-MM (358)
