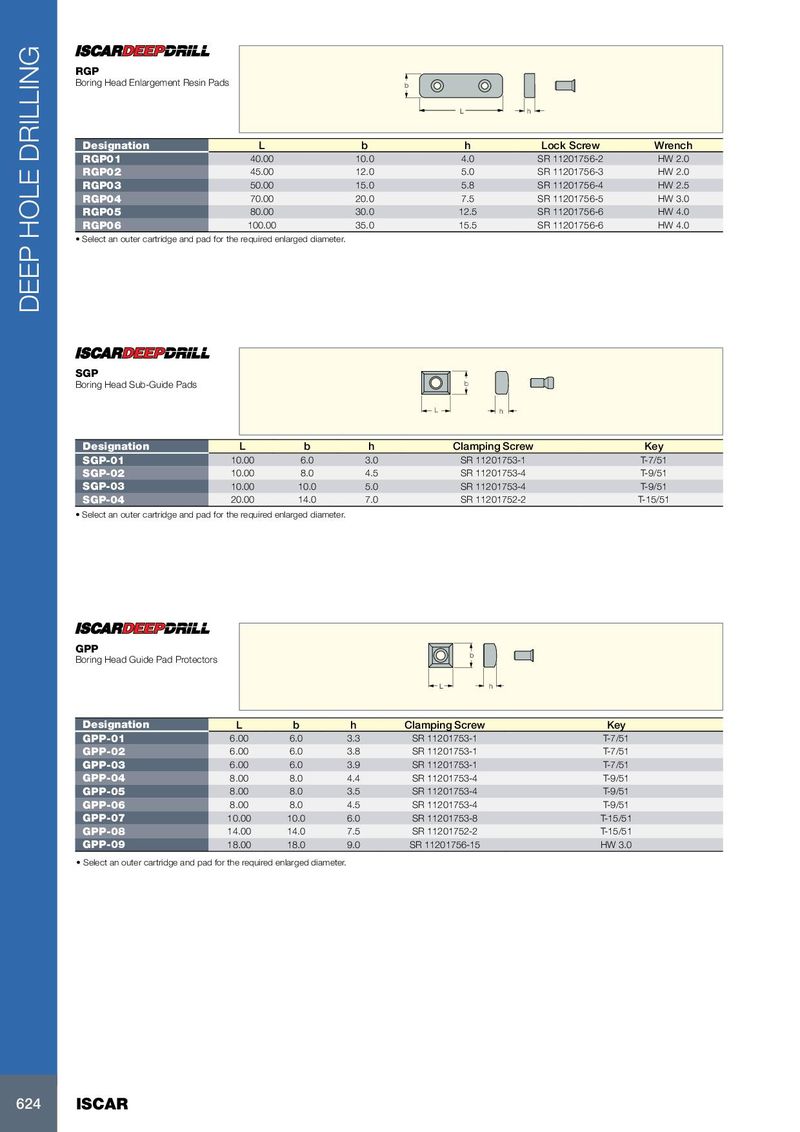

| RGP Boring Head Enlargement Resin Pads | b | L | h | |||
| Designation | L | b | h | LockScrew | Wrench | |
| RGP01 | 40.00 | 10.0 | 4.0 | SR 11201756-2 | HW 2.0 | |
| RGP02 | 45.00 | 12.0 | 5.0 | SR 11201756-3 | HW 2.0 | |
| RGP03 | 50.00 | 15.0 | 5.8 | SR 11201756-4 | HW 2.5 | |
| RGP04 | 70.00 | 20.0 | 7.5 | SR 11201756-5 | HW 3.0 | |
| RGP05 | 80.00 | 30.0 | 12.5 | SR 11201756-6 | HW 4.0 | |
| RGP06 | 100.00 | 35.0 | 15.5 | SR 11201756-6 | HW 4.0 |
- Select an outer cartridge and pad for the required enlarged diameter.
| SGP Boring Head Sub-Guide Pads | b | ||||
| L h | |||||
| Designation | L | b | h | Clamping Screw | Key |
| SGP-01 | 10.00 | 6.0 | 3.0 | SR 11201753-1 | T-7/51 |
| SGP-02 | 10.00 | 8.0 | 4.5 | SR 11201753-4 | T-9/51 |
| SGP-03 | 10.00 | 10.0 | 5.0 | SR 11201753-4 | T-9/51 |
| SGP-04 | 20.00 | 14.0 | 7.0 | SR 11201752-2 | T-15/51 |
- Select an outer cartridge and pad for the required enlarged diameter.
GPP
Boring Head Guide Pad Protectors b
L h
| Designation | L | b | h | Clamping Screw | Key |
| GPP-01 | 6.00 | 6.0 | 3.3 | SR 11201753-1 | T-7/51 |
| GPP-02 | 6.00 | 6.0 | 3.8 | SR 11201753-1 | T-7/51 |
| GPP-03 | 6.00 | 6.0 | 3.9 | SR 11201753-1 | T-7/51 |
| GPP-04 | 8.00 | 8.0 | 4.4 | SR 11201753-4 | T-9/51 |
| GPP-05 | 8.00 | 8.0 | 3.5 | SR 11201753-4 | T-9/51 |
| GPP-06 | 8.00 | 8.0 | 4.5 | SR 11201753-4 | T-9/51 |
| GPP-07 | 10.00 | 10.0 | 6.0 | SR 11201753-8 | T-15/51 |
| GPP-08 | 14.00 | 14.0 | 7.5 | SR 11201752-2 | T-15/51 |
| GPP-09 | 18.00 | 18.0 | 9.0 | SR 11201756-15 | HW 3.0 |
- Select an outer cartridge and pad for the required enlarged diameter.
