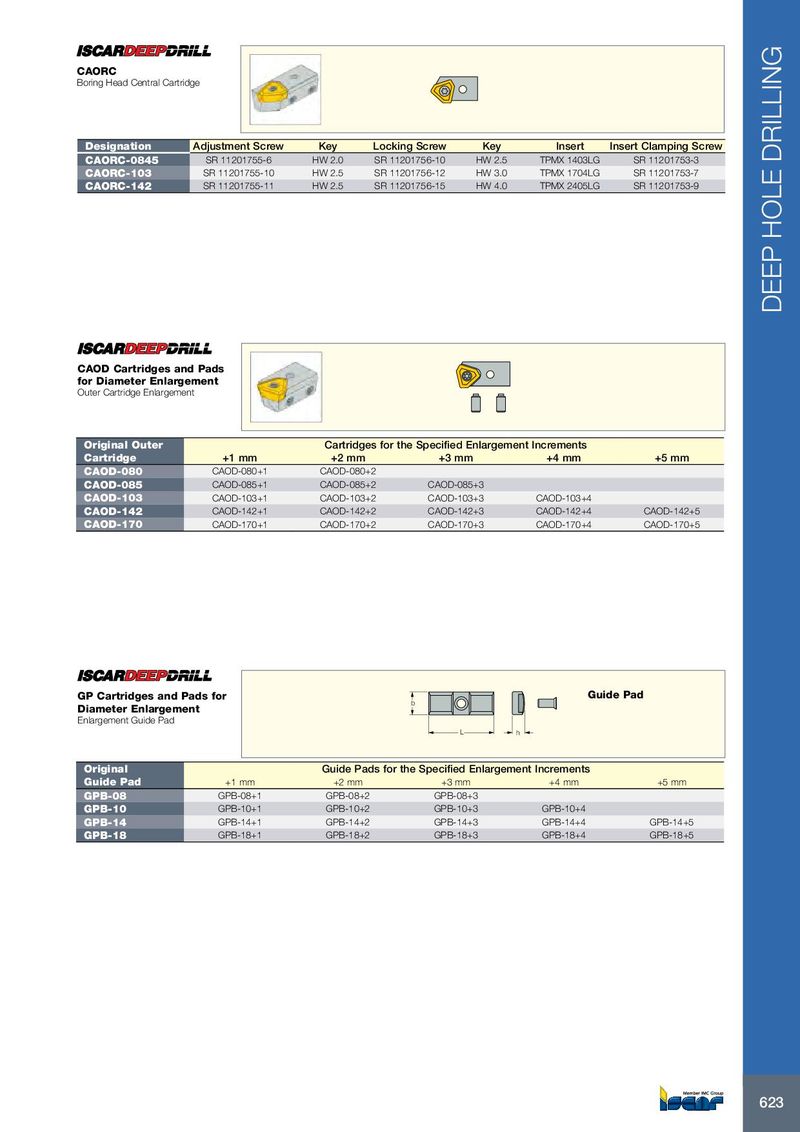

CAORC

Boring Head Central Cartridge

DesignationAdjustmentScrewKeyLocking ScrewKeyInsertInsertClamping Screw
CAORC-0845SR 11201755-6HW 2.0SR 11201756-10HW 2.5TPMX 1403LGSR 11201753-3
CAORC-103SR 11201755-10HW 2.5SR 11201756-12HW 3.0TPMX 1704LGSR 11201753-7
CAORC-142SR 11201755-11HW 2.5SR 11201756-15HW 4.0TPMX 2405LGSR 11201753-9

CAOD Cartridges and Pads

for Diameter Enlargement

Outer Cartridge Enlargement

Original Outer Cartridges for the Specified Enlargement Increments

Cartridge +1 mm+2 mm+3 mm+4 mm+5 mm
CAOD-080CAOD-080+1CAOD-080+2
CAOD-085CAOD-085+1CAOD-085+2CAOD-085+3
CAOD-103CAOD-103+1CAOD-103+2CAOD-103+3CAOD-103+4
CAOD-142CAOD-142+1CAOD-142+2CAOD-142+3CAOD-142+4CAOD-142+5
CAOD-170CAOD-170+1CAOD-170+2CAOD-170+3CAOD-170+4CAOD-170+5

GP Cartridges and Pads for Guide Pad

Diameter Enlargement b Enlargement Guide Pad L h

Original Guide Pads for the Specified Enlargement Increments

Guide Pad+1 mm+2 mm+3 mm+4 mm+5 mm
GPB-08GPB-08+1GPB-08+2GPB-08+3
GPB-10GPB-10+1GPB-10+2GPB-10+3GPB-10+4
GPB-14GPB-14+1GPB-14+2GPB-14+3GPB-14+4GPB-14+5
GPB-18GPB-18+1GPB-18+2GPB-18+3GPB-18+4GPB-18+5
