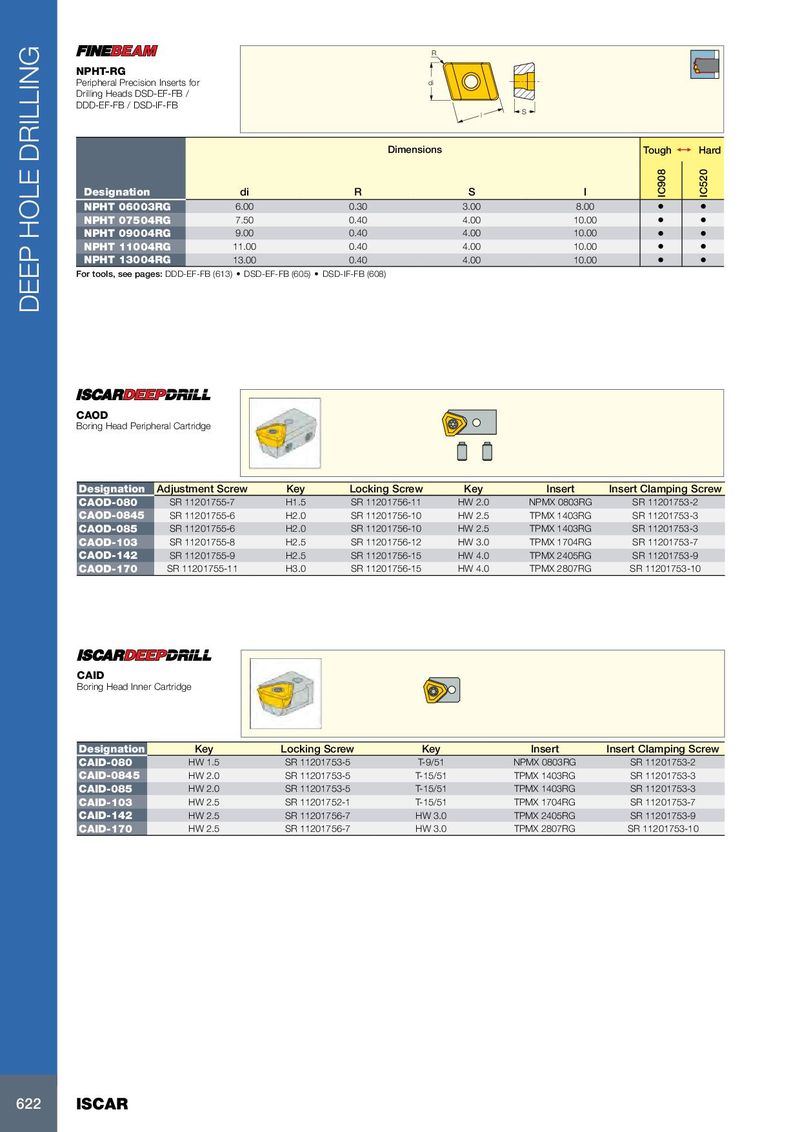

R NPHT-RG Peripheral Precision Inserts for di Drilling Heads DSD-EF-FB / DDD-EF-FB / DSD-IF-FB l S Dimensions Tough 1  Hard Designation di R S l IC908 IC520 NPHT 06003RG 6.00 0.30 3.00 8.00 • • NPHT 07504RG 7.50 0.40 4.00 10.00 • • NPHT 09004RG 9.00 0.40 4.00 10.00 • • NPHT 11004RG 11.00 0.40 4.00 10.00 • • NPHT 13004RG 13.00 0.40 4.00 10.00 • • For tools, see pages: DDD-EF-FB (613) • DSD-EF-FB (605) • DSD-IF-FB (608) DEEP HOLE DRILLING CAOD Boring Head Peripheral Cartridge Designation Adjustment Screw Key Locking Screw Key Insert Insert Clamping Screw CAOD-080 SR 11201755-7 H1.5 SR 11201756-11 HW 2.0 NPMX 0803RG SR 11201753-2 CAOD-0845 SR 11201755-6 H2.0 SR 11201756-10 HW 2.5 TPMX 1403RG SR 11201753-3 CAOD-085 SR 11201755-6 H2.0 SR 11201756-10 HW 2.5 TPMX 1403RG SR 11201753-3 CAOD-103 SR 11201755-8 H2.5 SR 11201756-12 HW 3.0 TPMX 1704RG SR 11201753-7 CAOD-142 SR 11201755-9 H2.5 SR 11201756-15 HW 4.0 TPMX 2405RG SR 11201753-9 CAOD-170 SR 11201755-11 H3.0 SR 11201756-15 HW 4.0 TPMX 2807RG SR 11201753-10 CAID Boring Head Inner Cartridge Designation Key Locking Screw Key Insert Insert Clamping Screw CAID-080 HW 1.5 SR 11201753-5 T-9/51 NPMX 0803RG SR 11201753-2 CAID-0845 HW 2.0 SR 11201753-5 T-15/51 TPMX 1403RG SR 11201753-3 CAID-085 HW 2.0 SR 11201753-5 T-15/51 TPMX 1403RG SR 11201753-3 CAID-103 HW 2.5 SR 11201752-1 T-15/51 TPMX 1704RG SR 11201753-7 CAID-142 HW 2.5 SR 11201756-7 HW 3.0 TPMX 2405RG SR 11201753-9 CAID-170 HW 2.5 SR 11201756-7 HW 3.0 TPMX 2807RG SR 11201753-10 622 ISCAR
