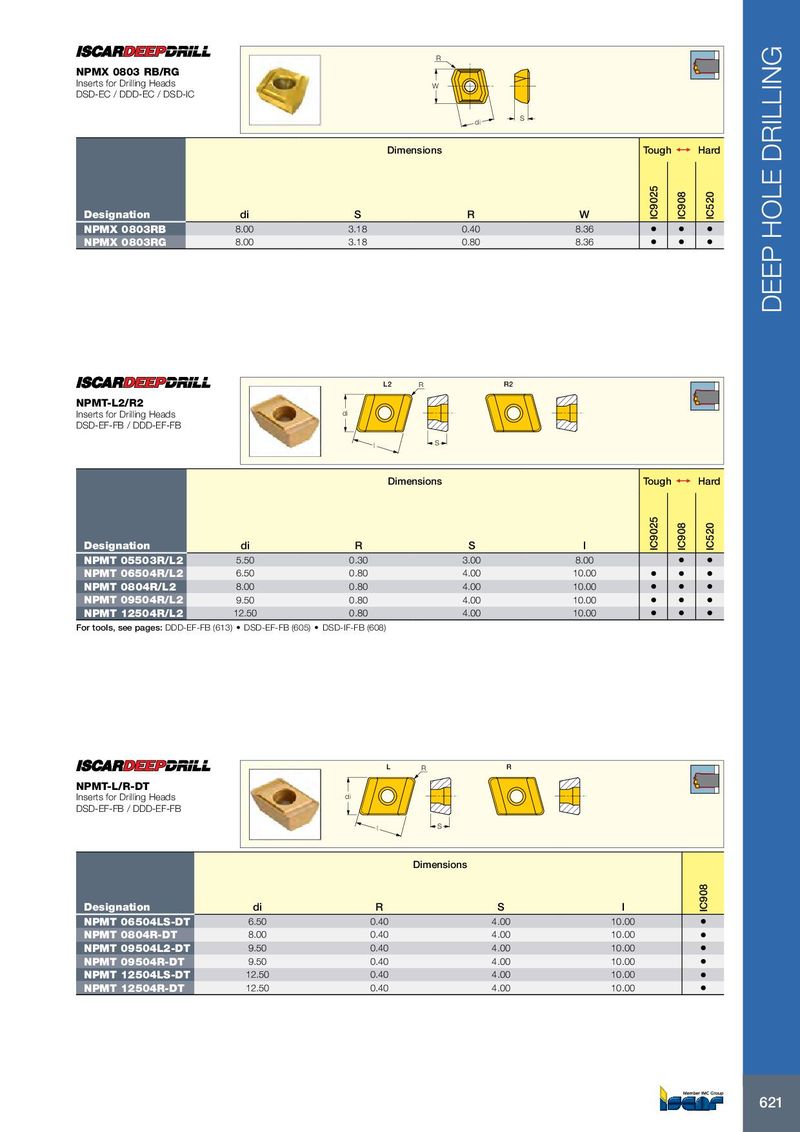

R NPMX 0803 RB/RG Inserts for Drilling Heads W DSD-EC / DDD-EC / DSD-IC S di Dimensions Tough 1  Hard Designation di S R W IC9025 IC908 IC520 NPMX 0803RB 8.00 3.18 0.40 8.36 • • • NPMX 0803RG 8.00 3.18 0.80 8.36 • • • DEEP HOLE DRILLING L2 R R2 NPMT-L2/R2 Inserts for Drilling Heads di DSD-EF-FB / DDD-EF-FB l S Dimensions Tough 1  Hard Designation di R S l IC9025 IC908 IC520 NPMT 05503R/L2 5.50 0.30 3.00 8.00 • • NPMT 06504R/L2 6.50 0.80 4.00 10.00 • • • NPMT 0804R/L2 8.00 0.80 4.00 10.00 • • • NPMT 09504R/L2 9.50 0.80 4.00 10.00 • • • NPMT 12504R/L2 12.50 0.80 4.00 10.00 • • • For tools, see pages: DDD-EF-FB (613) • DSD-EF-FB (605) • DSD-IF-FB (608) L R R NPMT-L/R-DT Inserts for Drilling Heads di DSD-EF-FB / DDD-EF-FB l S Dimensions Designation di R S l IC908 NPMT 06504LS-DT 6.50 0.40 4.00 10.00 • NPMT 0804R-DT 8.00 0.40 4.00 10.00 • NPMT 09504L2-DT 9.50 0.40 4.00 10.00 • NPMT 09504R-DT 9.50 0.40 4.00 10.00 • NPMT 12504LS-DT 12.50 0.40 4.00 10.00 • NPMT 12504R-DT 12.50 0.40 4.00 10.00 • 621
