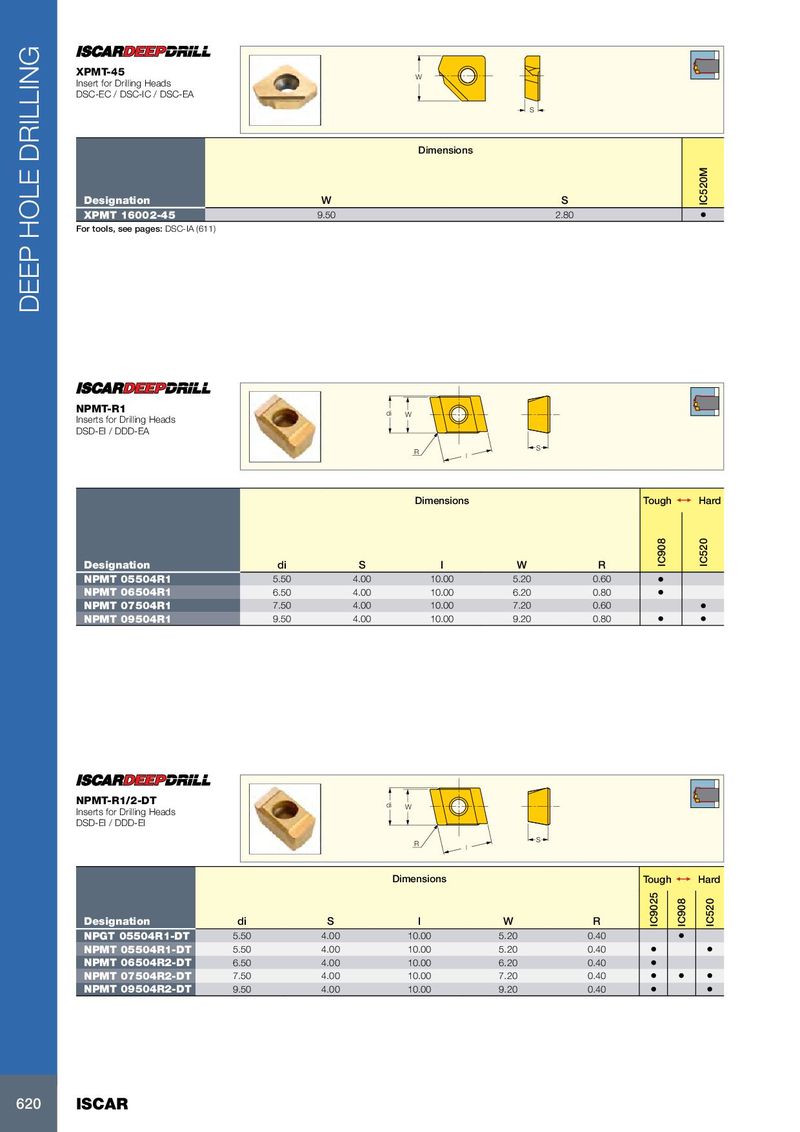

XPMT-45 W Insert for Drilling Heads DSC-EC / DSC-IC / DSC-EA S Dimensions Designation W S IC520M XPMT 16002-45 9.50 2.80 • For tools, see pages: DSC-IA (611) DEEP HOLE DRILLING NPMT-R1 di W Inserts for Drilling Heads DSD-EI / DDD-EA R S l Dimensions Tough 1  Hard Designation di S l W R IC908 IC520 NPMT 05504R1 5.50 4.00 10.00 5.20 0.60 • NPMT 06504R1 6.50 4.00 10.00 6.20 0.80 • NPMT 07504R1 7.50 4.00 10.00 7.20 0.60 • NPMT 09504R1 9.50 4.00 10.00 9.20 0.80 • • NPMT-R1/2-DT di W Inserts for Drilling Heads DSD-EI / DDD-EI R S l Dimensions Tough 1  Hard Designation di S l W R IC9025 IC908 IC520 NPGT 05504R1-DT 5.50 4.00 10.00 5.20 0.40 • NPMT 05504R1-DT 5.50 4.00 10.00 5.20 0.40 • • NPMT 06504R2-DT 6.50 4.00 10.00 6.20 0.40 • NPMT 07504R2-DT 7.50 4.00 10.00 7.20 0.40 • • • NPMT 09504R2-DT 9.50 4.00 10.00 9.20 0.40 • • 620 ISCAR
