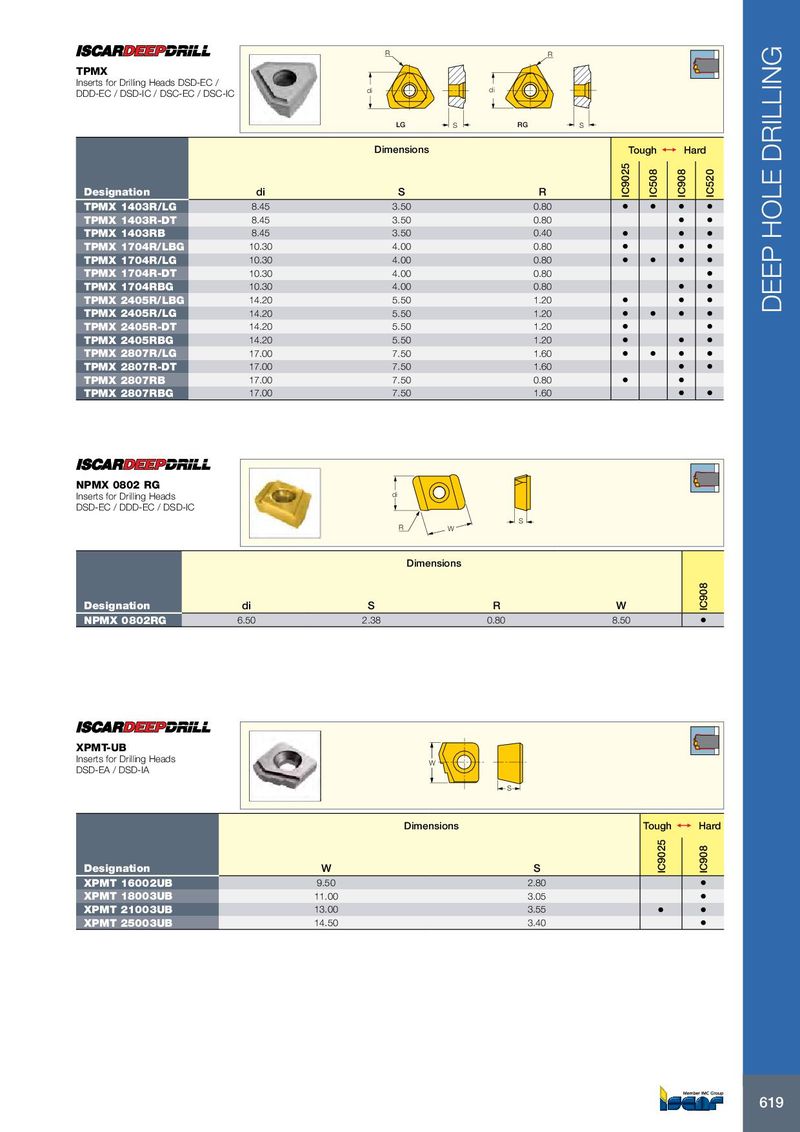

Каталог Iscar вращающийся инструмент 2017 - страница 623

R R TPMX Inserts for Drilling Heads DSD-EC / di di DDD-EC / DSD-IC / DSC-EC / DSC-IC LG S RG S Dimensions Tough 1  Hard Designation di S R IC9025 IC508 IC908 IC520 TPMX 1403R/LG 8.45 3.50 0.80 • • • • TPMX 1403R-DT 8.45 3.50 0.80 • • TPMX 1403RB 8.45 3.50 0.40 • • • TPMX 1704R/LBG 10.30 4.00 0.80 • • • TPMX 1704R/LG 10.30 4.00 0.80 • • • • TPMX 1704R-DT 10.30 4.00 0.80 • TPMX 1704RBG 10.30 4.00 0.80 • • TPMX 2405R/LBG 14.20 5.50 1.20 • • • TPMX 2405R/LG 14.20 5.50 1.20 DEEP HOLE DRILLING • • • • TPMX 2405R-DT 14.20 5.50 1.20 • • TPMX 2405RBG 14.20 5.50 1.20 • • • TPMX 2807R/LG 17.00 7.50 1.60 • • • • TPMX 2807R-DT 17.00 7.50 1.60 • • TPMX 2807RB 17.00 7.50 0.80 • • TPMX 2807RBG 17.00 7.50 1.60 • • NPMX 0802 RG Inserts for Drilling Heads di DSD-EC / DDD-EC / DSD-IC S R W Dimensions Designation di S R W IC908 NPMX 0802RG 6.50 2.38 0.80 8.50 • XPMT-UB Inserts for Drilling Heads W DSD-EA / DSD-IA S Dimensions Tough 1  Hard Designation W S IC9025 IC908 XPMT 16002UB 9.50 2.80 • XPMT 18003UB 11.00 3.05 • XPMT 21003UB 13.00 3.55 • • XPMT 25003UB 14.50 3.40 • 619
