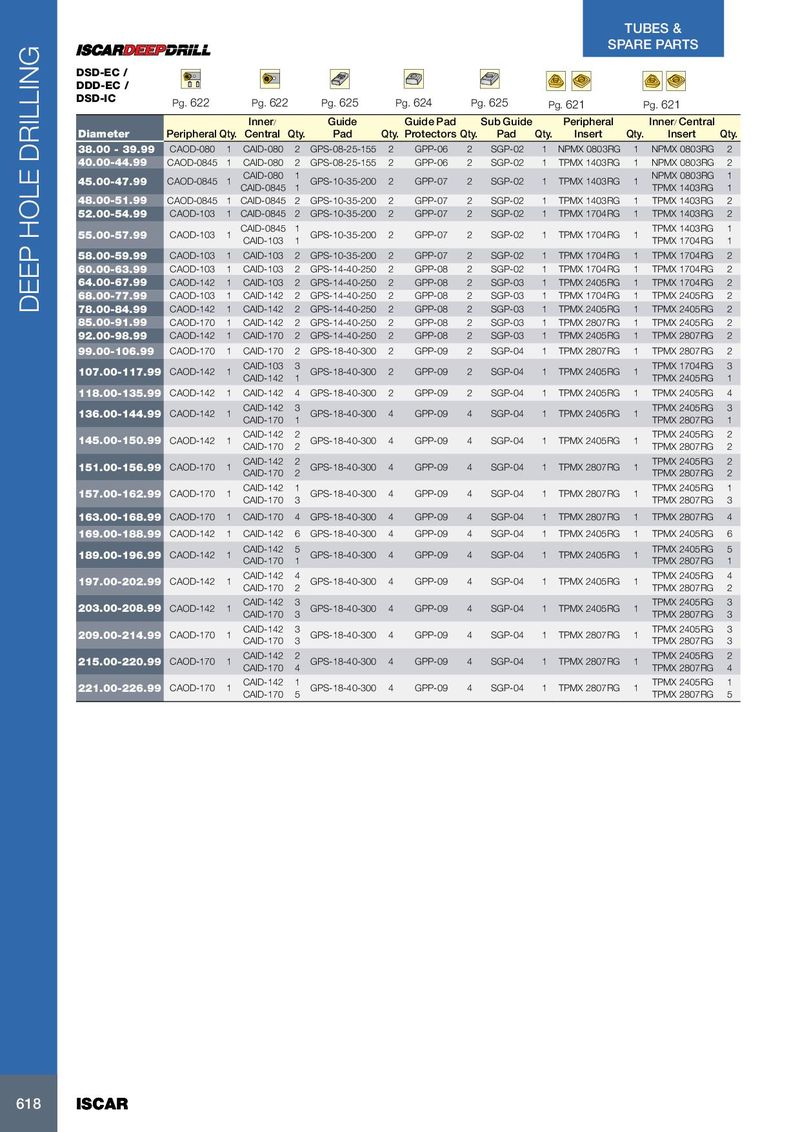

| DSD-EC / DDD-EC / | |||||||||||
| DSD-IC | Pg.622 | Pg.622 | Pg.625 | Pg.624 | Pg | .625 | Pg.621 | Pg.621 | |||
| Inner/ | Guide | Guide Pad | Sub Guide | Peripheral | Inner/Central | ||||||
| Diameter | PeripheralQ | ty. | Central | Qty | . Pad | Qty. Protectors | Qty. | Pad | Qty. Insert | Qty. Insert | Qty. |
| 38.00 - 39.99 | CAOD-080 | 1 | CAID-080 | 2 | GPS-08-25-155 | 2 GPP-06 | 2 | SGP-02 | 1 NPMX 0803RG | 1 NPMX 0803RG | 2 |
| 40.00-44.99 | CAOD-0845 | 1 | CAID-080 | 2 | GPS-08-25-155 | 2 GPP-06 | 2 | SGP-02 | 1 TPMX 1403RG | 1 NPMX 0803RG | 2 |
| 45.00-47.99 | CAOD-0845 | 1 | CAID-080 CAID-0845 | 1 1 | GPS-10-35-200 | 2 GPP-07 | 2 | SGP-02 | 1 TPMX 1403RG | 1 NPMX 0803RG TPMX 1403RG | 1 1 |
| 48.00-51.99 | CAOD-0845 | 1 | CAID-0845 | 2 | GPS-10-35-200 | 2 GPP-07 | 2 | SGP-02 | 1 TPMX 1403RG | 1 TPMX 1403RG | 2 |
| 52.00-54.99 | CAOD-103 | 1 | CAID-0845 | 2 | GPS-10-35-200 | 2 GPP-07 | 2 | SGP-02 | 1 TPMX 1704RG | 1 TPMX 1403RG | 2 |
| 55.00-57.99 | CAOD-103 | 1 | CAID-0845 CAID-103 | 1 1 | GPS-10-35-200 | 2 GPP-07 | 2 | SGP-02 | 1 TPMX 1704RG | 1 TPMX 1403RG TPMX 1704RG | 1 1 |
| 58.00-59.99 | CAOD-103 | 1 | CAID-103 | 2 | GPS-10-35-200 | 2 GPP-07 | 2 | SGP-02 | 1 TPMX 1704RG | 1 TPMX 1704RG | 2 |
| 60.00-63.99 | CAOD-103 | 1 | CAID-103 | 2 | GPS-14-40-250 | 2 GPP-08 | 2 | SGP-02 | 1 TPMX 1704RG | 1 TPMX 1704RG | 2 |
| 64.00-67.99 | CAOD-142 | 1 | CAID-103 | 2 | GPS-14-40-250 | 2 GPP-08 | 2 | SGP-03 | 1 TPMX 2405RG | 1 TPMX 1704RG | 2 |
| 68.00-77.99 | CAOD-103 | 1 | CAID-142 | 2 | GPS-14-40-250 | 2 GPP-08 | 2 | SGP-03 | 1 TPMX 1704RG | 1 TPMX 2405RG | 2 |
| 78.00-84.99 | CAOD-142 | 1 | CAID-142 | 2 | GPS-14-40-250 | 2 GPP-08 | 2 | SGP-03 | 1 TPMX 2405RG | 1 TPMX 2405RG | 2 |
| 85.00-91.99 | CAOD-170 | 1 | CAID-142 | 2 | GPS-14-40-250 | 2 GPP-08 | 2 | SGP-03 | 1 TPMX 2807RG | 1 TPMX 2405RG | 2 |
| 92.00-98.99 | CAOD-142 | 1 | CAID-170 | 2 | GPS-14-40-250 | 2 GPP-08 | 2 | SGP-03 | 1 TPMX 2405RG | 1 TPMX 2807RG | 2 |
| 99.00-106.99 | CAOD-170 | 1 | CAID-170 | 2 | GPS-18-40-300 | 2 GPP-09 | 2 | SGP-04 | 1 TPMX 2807RG | 1 TPMX 2807RG | 2 |
| 107.00-117.99 | CAOD-142 | 1 | CAID-103 CAID-142 | 3 1 | GPS-18-40-300 | 2 GPP-09 | 2 | SGP-04 | 1 TPMX 2405RG | 1 TPMX 1704RG TPMX 2405RG | 3 1 |
| 118.00-135.99 | CAOD-142 | 1 | CAID-142 | 4 | GPS-18-40-300 | 2 GPP-09 | 2 | SGP-04 | 1 TPMX 2405RG | 1 TPMX 2405RG | 4 |
| 136.00-144.99 | CAOD-142 | 1 | CAID-142 CAID-170 | 3 1 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2405RG | 1 TPMX 2405RG TPMX 2807RG | 3 1 |
| 145.00-150.99 | CAOD-142 | 1 | CAID-142 CAID-170 | 2 2 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2405RG | 1 TPMX 2405RG TPMX 2807RG | 2 2 |
| 151.00-156.99 | CAOD-170 | 1 | CAID-142 CAID-170 | 2 2 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2807RG | 1 TPMX 2405RG TPMX 2807RG | 2 2 |
| 157.00-162.99 | CAOD-170 | 1 | CAID-142 CAID-170 | 1 3 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2807RG | 1 TPMX 2405RG TPMX 2807RG | 1 3 |
| 163.00-168.99 | CAOD-170 | 1 | CAID-170 | 4 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2807RG | 1 TPMX 2807RG | 4 |
| 169.00-188.99 | CAOD-142 | 1 | CAID-142 | 6 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2405RG | 1 TPMX 2405RG | 6 |
| 189.00-196.99 | CAOD-142 | 1 | CAID-142 CAID-170 | 5 1 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2405RG | 1 TPMX 2405RG TPMX 2807RG | 5 1 |
| 197.00-202.99 | CAOD-142 | 1 | CAID-142 CAID-170 | 4 2 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2405RG | 1 TPMX 2405RG TPMX 2807RG | 4 2 |
| 203.00-208.99 | CAOD-142 | 1 | CAID-142 CAID-170 | 3 3 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2405RG | 1 TPMX 2405RG TPMX 2807RG | 3 3 |
| 209.00-214.99 | CAOD-170 | 1 | CAID-142 CAID-170 | 3 3 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2807RG | 1 TPMX 2405RG TPMX 2807RG | 3 3 |
| 215.00-220.99 | CAOD-170 | 1 | CAID-142 CAID-170 | 2 4 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2807RG | 1 TPMX 2405RG TPMX 2807RG | 2 4 |
| 221.00-226.99 | CAOD-170 | 1 | CAID-142 CAID-170 | 1 5 | GPS-18-40-300 | 4 GPP-09 | 4 | SGP-04 | 1 TPMX 2807RG | 1 TPMX 2405RG TPMX 2807RG | 1 5 |
