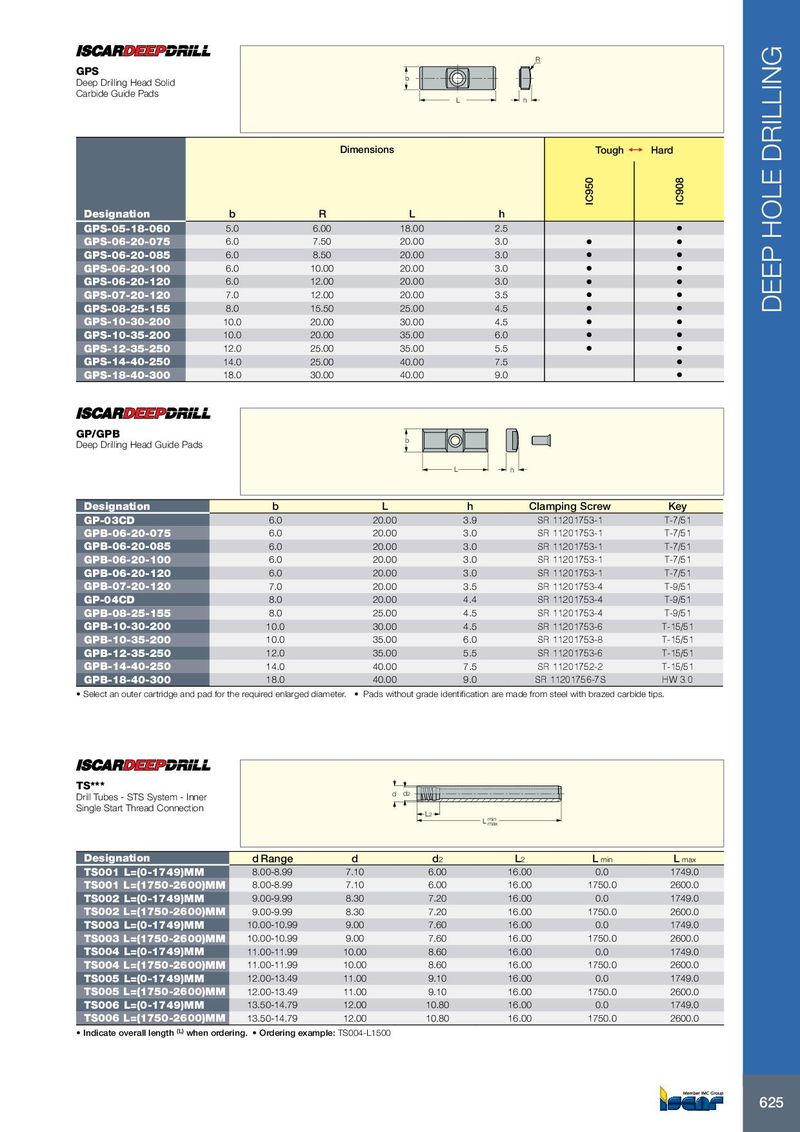

GPS
Deep Drilling Head Solid b Carbide Guide Pads L h
| | Dime | nsions | | Tough | 1 Hard |
| Designation | b | R | L | h | IC950 | IC908 |
| GPS-05-18-060 | 5.0 | 6.00 | 18.00 | 2.5 | | • |
| GPS-06-20-075 | 6.0 | 7.50 | 20.00 | 3.0 | • | • |
| GPS-06-20-085 | 6.0 | 8.50 | 20.00 | 3.0 | • | • |
| GPS-06-20-100 | 6.0 | 10.00 | 20.00 | 3.0 | • | • |
| GPS-06-20-120 | 6.0 | 12.00 | 20.00 | 3.0 | • | • |
| GPS-07-20-120 | 7.0 | 12.00 | 20.00 | 3.5 | • | • |
| GPS-08-25-155 | 8.0 | 15.50 | 25.00 | 4.5 | • | • |
| GPS-10-30-200 | 10.0 | 20.00 | 30.00 | 4.5 | • | • |
| GPS-10-35-200 | 10.0 | 20.00 | 35.00 | 6.0 | • | • |
| GPS-12-35-250 | 12.0 | 25.00 | 35.00 | 5.5 | • | • |
| GPS-14-40-250 | 14.0 | 25.00 | 40.00 | 7.5 | | • |
| GPS-18-40-300 | 18.0 | 30.00 | 40.00 | 9.0 | | • |
GP/GPB
| eep Drilling Head Guide Pads | | b | | | |
| | | L | h | |
| Designation | b | L | h | Clamping Screw | Key |
| GP-03CD | 6.0 | 20.00 | 3.9 | SR 11201753-1 | T-7/51 |
| GPB-06-20-075 | 6.0 | 20.00 | 3.0 | SR 11201753-1 | T-7/51 |
| GPB-06-20-085 | 6.0 | 20.00 | 3.0 | SR 11201753-1 | T-7/51 |
| GPB-06-20-100 | 6.0 | 20.00 | 3.0 | SR 11201753-1 | T-7/51 |
| GPB-06-20-120 | 6.0 | 20.00 | 3.0 | SR 11201753-1 | T-7/51 |
| GPB-07-20-120 | 7.0 | 20.00 | 3.5 | SR 11201753-4 | T-9/51 |
| GP-04CD | 8.0 | 20.00 | 4.4 | SR 11201753-4 | T-9/51 |
| GPB-08-25-155 | 8.0 | 25.00 | 4.5 | SR 11201753-4 | T-9/51 |
| GPB-10-30-200 | 10.0 | 30.00 | 4.5 | SR 11201753-6 | T-15/51 |
| GPB-10-35-200 | 10.0 | 35.00 | 6.0 | SR 11201753-8 | T-15/51 |
| GPB-12-35-250 | 12.0 | 35.00 | 5.5 | SR 11201753-6 | T-15/51 |
| GPB-14-40-250 | 14.0 | 40.00 | 7.5 | SR 11201752-2 | T-15/51 |
| GPB-18-40-300 | 18.0 | 40.00 | 9.0 | SR 11201756-7S | HW 3.0 |
- Select an outer cartridge and pad for the required enlarged diameter.
- Pads without grade identification are made from steel with brazed carbide tips.
TS***
| Drill Tubes - STS System - Inner Single Start Thread Connection | | | L2 d2 d | L min max | | |
| Designation | d Range | d | d2 | L2 | Lmin | Lmax |
| TS001 L=(0-1749)MM | 8.00-8.99 | 7.10 | 6.00 | 16.00 | 0.0 | 1749.0 |
| TS001 L=(1750-2600)MM | 8.00-8.99 | 7.10 | 6.00 | 16.00 | 1750.0 | 2600.0 |
| TS002 L=(0-1749)MM | 9.00-9.99 | 8.30 | 7.20 | 16.00 | 0.0 | 1749.0 |
| TS002 L=(1750-2600)MM | 9.00-9.99 | 8.30 | 7.20 | 16.00 | 1750.0 | 2600.0 |
| TS003 L=(0-1749)MM | 10.00-10.99 | 9.00 | 7.60 | 16.00 | 0.0 | 1749.0 |
| TS003 L=(1750-2600)MM | 10.00-10.99 | 9.00 | 7.60 | 16.00 | 1750.0 | 2600.0 |
| TS004 L=(0-1749)MM | 11.00-11.99 | 10.00 | 8.60 | 16.00 | 0.0 | 1749.0 |
| TS004 L=(1750-2600)MM | 11.00-11.99 | 10.00 | 8.60 | 16.00 | 1750.0 | 2600.0 |
| TS005 L=(0-1749)MM | 12.00-13.49 | 11.00 | 9.10 | 16.00 | 0.0 | 1749.0 |
| TS005 L=(1750-2600)MM | 12.00-13.49 | 11.00 | 9.10 | 16.00 | 1750.0 | 2600.0 |
| TS006 L=(0-1749)MM | 13.50-14.79 | 12.00 | 10.80 | 16.00 | 0.0 | 1749.0 |
| TS006 L=(1750-2600)MM | 13.50-14.79 | 12.00 | 10.80 | 16.00 | 1750.0 | 2600.0 |
- Indicate overall length (L) when ordering.
- Ordering example: TS004-L1500
