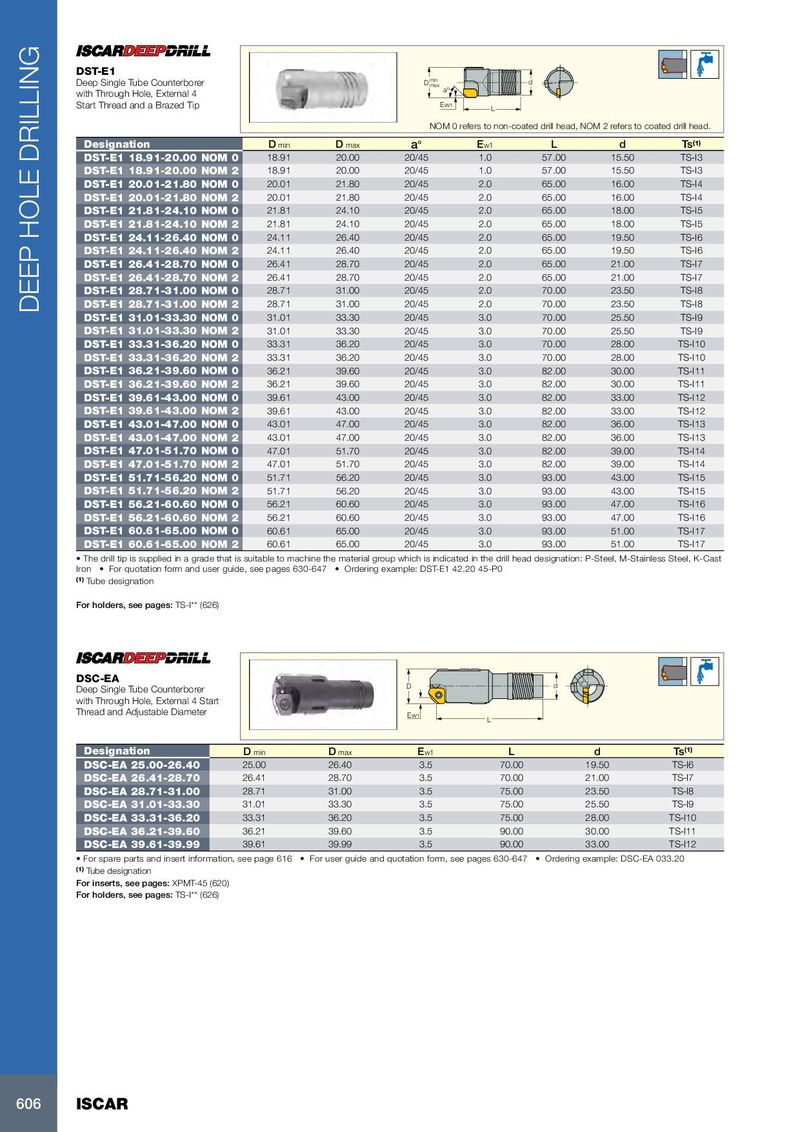

Каталог Iscar вращающийся инструмент 2017 - страница 610
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
DST-E1
| eep Single Tube Counterborer ith Through Hole, External 4 art Thread and a Brazed Tip | aº Dmin max Ew1 | L | d | ||||
| NOM | 0 refers to non-c | oated drill head, N | OM 2 refers to co | ated drill head. | |||
| Designation | Dmin | Dmax | a° | Ew1 | L | d | Ts(1) |
| DST-E1 18.91-20.00 NOM 0 | 18.91 | 20.00 | 20/45 | 1.0 | 57.00 | 15.50 | TS-I3 |
| DST-E1 18.91-20.00 NOM 2 | 18.91 | 20.00 | 20/45 | 1.0 | 57.00 | 15.50 | TS-I3 |
| DST-E1 20.01-21.80 NOM 0 | 20.01 | 21.80 | 20/45 | 2.0 | 65.00 | 16.00 | TS-I4 |
| DST-E1 20.01-21.80 NOM 2 | 20.01 | 21.80 | 20/45 | 2.0 | 65.00 | 16.00 | TS-I4 |
| DST-E1 21.81-24.10 NOM 0 | 21.81 | 24.10 | 20/45 | 2.0 | 65.00 | 18.00 | TS-I5 |
| DST-E1 21.81-24.10 NOM 2 | 21.81 | 24.10 | 20/45 | 2.0 | 65.00 | 18.00 | TS-I5 |
| DST-E1 24.11-26.40 NOM 0 | 24.11 | 26.40 | 20/45 | 2.0 | 65.00 | 19.50 | TS-I6 |
| DST-E1 24.11-26.40 NOM 2 | 24.11 | 26.40 | 20/45 | 2.0 | 65.00 | 19.50 | TS-I6 |
| DST-E1 26.41-28.70 NOM 0 | 26.41 | 28.70 | 20/45 | 2.0 | 65.00 | 21.00 | TS-I7 |
| DST-E1 26.41-28.70 NOM 2 | 26.41 | 28.70 | 20/45 | 2.0 | 65.00 | 21.00 | TS-I7 |
| DST-E1 28.71-31.00 NOM 0 | 28.71 | 31.00 | 20/45 | 2.0 | 70.00 | 23.50 | TS-I8 |
| DST-E1 28.71-31.00 NOM 2 | 28.71 | 31.00 | 20/45 | 2.0 | 70.00 | 23.50 | TS-I8 |
| DST-E1 31.01-33.30 NOM 0 | 31.01 | 33.30 | 20/45 | 3.0 | 70.00 | 25.50 | TS-I9 |
| DST-E1 31.01-33.30 NOM 2 | 31.01 | 33.30 | 20/45 | 3.0 | 70.00 | 25.50 | TS-I9 |
| DST-E1 33.31-36.20 NOM 0 | 33.31 | 36.20 | 20/45 | 3.0 | 70.00 | 28.00 | TS-I10 |
| DST-E1 33.31-36.20 NOM 2 | 33.31 | 36.20 | 20/45 | 3.0 | 70.00 | 28.00 | TS-I10 |
| DST-E1 36.21-39.60 NOM 0 | 36.21 | 39.60 | 20/45 | 3.0 | 82.00 | 30.00 | TS-I11 |
| DST-E1 36.21-39.60 NOM 2 | 36.21 | 39.60 | 20/45 | 3.0 | 82.00 | 30.00 | TS-I11 |
| DST-E1 39.61-43.00 NOM 0 | 39.61 | 43.00 | 20/45 | 3.0 | 82.00 | 33.00 | TS-I12 |
| DST-E1 39.61-43.00 NOM 2 | 39.61 | 43.00 | 20/45 | 3.0 | 82.00 | 33.00 | TS-I12 |
| DST-E1 43.01-47.00 NOM 0 | 43.01 | 47.00 | 20/45 | 3.0 | 82.00 | 36.00 | TS-I13 |
| DST-E1 43.01-47.00 NOM 2 | 43.01 | 47.00 | 20/45 | 3.0 | 82.00 | 36.00 | TS-I13 |
| DST-E1 47.01-51.70 NOM 0 | 47.01 | 51.70 | 20/45 | 3.0 | 82.00 | 39.00 | TS-I14 |
| DST-E1 47.01-51.70 NOM 2 | 47.01 | 51.70 | 20/45 | 3.0 | 82.00 | 39.00 | TS-I14 |
| DST-E1 51.71-56.20 NOM 0 | 51.71 | 56.20 | 20/45 | 3.0 | 93.00 | 43.00 | TS-I15 |
| DST-E1 51.71-56.20 NOM 2 | 51.71 | 56.20 | 20/45 | 3.0 | 93.00 | 43.00 | TS-I15 |
| DST-E1 56.21-60.60 NOM 0 | 56.21 | 60.60 | 20/45 | 3.0 | 93.00 | 47.00 | TS-I16 |
| DST-E1 56.21-60.60 NOM 2 | 56.21 | 60.60 | 20/45 | 3.0 | 93.00 | 47.00 | TS-I16 |
| DST-E1 60.61-65.00 NOM 0 | 60.61 | 65.00 | 20/45 | 3.0 | 93.00 | 51.00 | TS-I17 |
| DST-E1 60.61-65.00 NOM 2 | 60.61 | 65.00 | 20/45 | 3.0 | 93.00 | 51.00 | TS-I17 |
- The drill tip is supplied in a grade that is suitable to machine the material group which is indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast
Iron For quotation form and user guide, see pages 630-647 Ordering example: DST-E1 42.20 45-P0 (1) Tube designation For holders, see pages: TS-I** (626)
DSC-EA
| eep Single Tube Counterborer ith Through Hole, External 4 Start hread and Adjustable Diameter | D Ew1 | L | d | |||
| Designation | Dmin | Dmax | Ew1 | L | d | Ts(1) |
| DSC-EA 25.00-26.40 | 25.00 | 26.40 | 3.5 | 70.00 | 19.50 | TS-I6 |
| DSC-EA 26.41-28.70 | 26.41 | 28.70 | 3.5 | 70.00 | 21.00 | TS-I7 |
| DSC-EA 28.71-31.00 | 28.71 | 31.00 | 3.5 | 75.00 | 23.50 | TS-I8 |
| DSC-EA 31.01-33.30 | 31.01 | 33.30 | 3.5 | 75.00 | 25.50 | TS-I9 |
| DSC-EA 33.31-36.20 | 33.31 | 36.20 | 3.5 | 75.00 | 28.00 | TS-I10 |
| DSC-EA 36.21-39.60 | 36.21 | 39.60 | 3.5 | 90.00 | 30.00 | TS-I11 |
| DSC-EA 39.61-39.99 | 39.61 | 39.99 | 3.5 | 90.00 | 33.00 | TS-I12 |
- For spare parts and insert information, see page 616
- For user guide and quotation form, see pages 630-647
- Ordering example: DSC-EA 033.20
(1) Tube designation For inserts, see pages: XPMT-45 (620) For holders, see pages: TS-I** (626)
