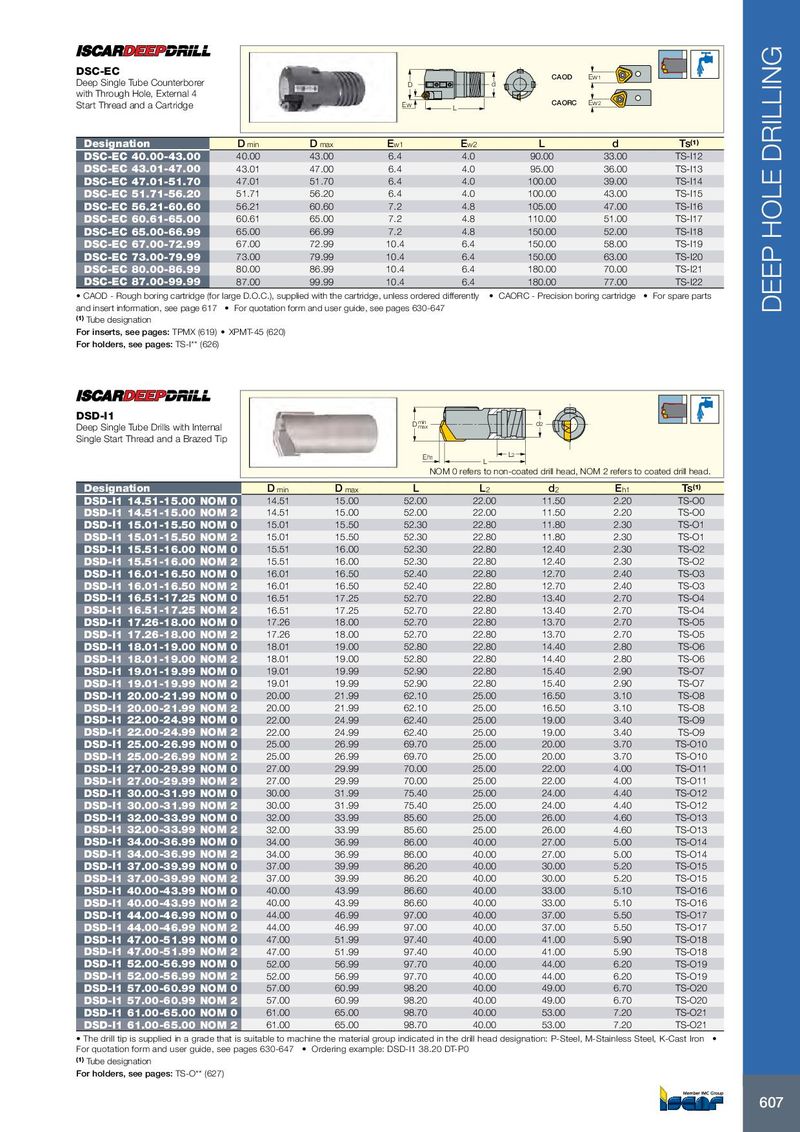

| DSC-EC Deep Single Tube Counterborer with Through Hole, External 4 Start Thread and a Cartridge | E | D w | d L | CAOD CAORC | Ew1 Ew2 | |||
| Designation | Dmin | Dmax | Ew1 | Ew2 | L | d | Ts(1) | |
| DSC-EC 40.00-43.00 | 40.00 | 43.00 | 6.4 | 4.0 | 90.00 | 33.00 | TS-I12 | |
| DSC-EC 43.01-47.00 | 43.01 | 47.00 | 6.4 | 4.0 | 95.00 | 36.00 | TS-I13 | |
| DSC-EC 47.01-51.70 | 47.01 | 51.70 | 6.4 | 4.0 | 100.00 | 39.00 | TS-I14 | |
| DSC-EC 51.71-56.20 | 51.71 | 56.20 | 6.4 | 4.0 | 100.00 | 43.00 | TS-I15 | |
| DSC-EC 56.21-60.60 | 56.21 | 60.60 | 7.2 | 4.8 | 105.00 | 47.00 | TS-I16 | |
| DSC-EC 60.61-65.00 | 60.61 | 65.00 | 7.2 | 4.8 | 110.00 | 51.00 | TS-I17 | |
| DSC-EC 65.00-66.99 | 65.00 | 66.99 | 7.2 | 4.8 | 150.00 | 52.00 | TS-I18 | |
| DSC-EC 67.00-72.99 | 67.00 | 72.99 | 10.4 | 6.4 | 150.00 | 58.00 | TS-I19 | |
| DSC-EC 73.00-79.99 | 73.00 | 79.99 | 10.4 | 6.4 | 150.00 | 63.00 | TS-I20 | |
| DSC-EC 80.00-86.99 | 80.00 | 86.99 | 10.4 | 6.4 | 180.00 | 70.00 | TS-I21 | |
| DSC-EC 87.00-99.99 | 87.00 | 99.99 | 10.4 | 6.4 | 180.00 | 77.00 | TS-I22 |
- CAOD - Rough boring cartridge (for large D.O.C.), supplied with the cartridge, unless ordered differently
- CAORC - Precision boring cartridge
- For spare parts
and insert information, see page 617 For quotation form and user guide, see pages 630-647 (1) Tube designation For inserts, see pages: TPMX (619) XPMT-45 (620) For holders, see pages: TS-I** (626)
| DSD-I1 | D min | d2 | |||||
| Deep Single Tube Drills with Internal Single Start Thread and a Brazed Tip | max | ||||||
| L2 | |||||||
| Eh1 | |||||||
| NOM | L 0 refers to non-coate | d drill head, N | OM 2 refers to c | oated drill head. | |||
| Designation | Dmin | Dmax | L | L2 | d2 | Eh1 | Ts(1) |
| DSD-I1 14.51-15.00 NOM 0 | 14.51 | 15.00 | 52.00 | 22.00 | 11.50 | 2.20 | TS-O0 |
| DSD-I1 14.51-15.00 NOM 2 | 14.51 | 15.00 | 52.00 | 22.00 | 11.50 | 2.20 | TS-O0 |
| DSD-I1 15.01-15.50 NOM 0 | 15.01 | 15.50 | 52.30 | 22.80 | 11.80 | 2.30 | TS-O1 |
| DSD-I1 15.01-15.50 NOM 2 | 15.01 | 15.50 | 52.30 | 22.80 | 11.80 | 2.30 | TS-O1 |
| DSD-I1 15.51-16.00 NOM 0 | 15.51 | 16.00 | 52.30 | 22.80 | 12.40 | 2.30 | TS-O2 |
| DSD-I1 15.51-16.00 NOM 2 | 15.51 | 16.00 | 52.30 | 22.80 | 12.40 | 2.30 | TS-O2 |
| DSD-I1 16.01-16.50 NOM 0 | 16.01 | 16.50 | 52.40 | 22.80 | 12.70 | 2.40 | TS-O3 |
| DSD-I1 16.01-16.50 NOM 2 | 16.01 | 16.50 | 52.40 | 22.80 | 12.70 | 2.40 | TS-O3 |
| DSD-I1 16.51-17.25 NOM 0 | 16.51 | 17.25 | 52.70 | 22.80 | 13.40 | 2.70 | TS-O4 |
| DSD-I1 16.51-17.25 NOM 2 | 16.51 | 17.25 | 52.70 | 22.80 | 13.40 | 2.70 | TS-O4 |
| DSD-I1 17.26-18.00 NOM 0 | 17.26 | 18.00 | 52.70 | 22.80 | 13.70 | 2.70 | TS-O5 |
| DSD-I1 17.26-18.00 NOM 2 | 17.26 | 18.00 | 52.70 | 22.80 | 13.70 | 2.70 | TS-O5 |
| DSD-I1 18.01-19.00 NOM 0 | 18.01 | 19.00 | 52.80 | 22.80 | 14.40 | 2.80 | TS-O6 |
| DSD-I1 18.01-19.00 NOM 2 | 18.01 | 19.00 | 52.80 | 22.80 | 14.40 | 2.80 | TS-O6 |
| DSD-I1 19.01-19.99 NOM 0 | 19.01 | 19.99 | 52.90 | 22.80 | 15.40 | 2.90 | TS-O7 |
| DSD-I1 19.01-19.99 NOM 2 | 19.01 | 19.99 | 52.90 | 22.80 | 15.40 | 2.90 | TS-O7 |
| DSD-I1 20.00-21.99 NOM 0 | 20.00 | 21.99 | 62.10 | 25.00 | 16.50 | 3.10 | TS-O8 |
| DSD-I1 20.00-21.99 NOM 2 | 20.00 | 21.99 | 62.10 | 25.00 | 16.50 | 3.10 | TS-O8 |
| DSD-I1 22.00-24.99 NOM 0 | 22.00 | 24.99 | 62.40 | 25.00 | 19.00 | 3.40 | TS-O9 |
| DSD-I1 22.00-24.99 NOM 2 | 22.00 | 24.99 | 62.40 | 25.00 | 19.00 | 3.40 | TS-O9 |
| DSD-I1 25.00-26.99 NOM 0 | 25.00 | 26.99 | 69.70 | 25.00 | 20.00 | 3.70 | TS-O10 |
| DSD-I1 25.00-26.99 NOM 2 | 25.00 | 26.99 | 69.70 | 25.00 | 20.00 | 3.70 | TS-O10 |
| DSD-I1 27.00-29.99 NOM 0 | 27.00 | 29.99 | 70.00 | 25.00 | 22.00 | 4.00 | TS-O11 |
| DSD-I1 27.00-29.99 NOM 2 | 27.00 | 29.99 | 70.00 | 25.00 | 22.00 | 4.00 | TS-O11 |
| DSD-I1 30.00-31.99 NOM 0 | 30.00 | 31.99 | 75.40 | 25.00 | 24.00 | 4.40 | TS-O12 |
| DSD-I1 30.00-31.99 NOM 2 | 30.00 | 31.99 | 75.40 | 25.00 | 24.00 | 4.40 | TS-O12 |
| DSD-I1 32.00-33.99 NOM 0 | 32.00 | 33.99 | 85.60 | 25.00 | 26.00 | 4.60 | TS-O13 |
| DSD-I1 32.00-33.99 NOM 2 | 32.00 | 33.99 | 85.60 | 25.00 | 26.00 | 4.60 | TS-O13 |
| DSD-I1 34.00-36.99 NOM 0 | 34.00 | 36.99 | 86.00 | 40.00 | 27.00 | 5.00 | TS-O14 |
| DSD-I1 34.00-36.99 NOM 2 | 34.00 | 36.99 | 86.00 | 40.00 | 27.00 | 5.00 | TS-O14 |
| DSD-I1 37.00-39.99 NOM 0 | 37.00 | 39.99 | 86.20 | 40.00 | 30.00 | 5.20 | TS-O15 |
| DSD-I1 37.00-39.99 NOM 2 | 37.00 | 39.99 | 86.20 | 40.00 | 30.00 | 5.20 | TS-O15 |
| DSD-I1 40.00-43.99 NOM 0 | 40.00 | 43.99 | 86.60 | 40.00 | 33.00 | 5.10 | TS-O16 |
| DSD-I1 40.00-43.99 NOM 2 | 40.00 | 43.99 | 86.60 | 40.00 | 33.00 | 5.10 | TS-O16 |
| DSD-I1 44.00-46.99 NOM 0 | 44.00 | 46.99 | 97.00 | 40.00 | 37.00 | 5.50 | TS-O17 |
| DSD-I1 44.00-46.99 NOM 2 | 44.00 | 46.99 | 97.00 | 40.00 | 37.00 | 5.50 | TS-O17 |
| DSD-I1 47.00-51.99 NOM 0 | 47.00 | 51.99 | 97.40 | 40.00 | 41.00 | 5.90 | TS-O18 |
| DSD-I1 47.00-51.99 NOM 2 | 47.00 | 51.99 | 97.40 | 40.00 | 41.00 | 5.90 | TS-O18 |
| DSD-I1 52.00-56.99 NOM 0 | 52.00 | 56.99 | 97.70 | 40.00 | 44.00 | 6.20 | TS-O19 |
| DSD-I1 52.00-56.99 NOM 2 | 52.00 | 56.99 | 97.70 | 40.00 | 44.00 | 6.20 | TS-O19 |
| DSD-I1 57.00-60.99 NOM 0 | 57.00 | 60.99 | 98.20 | 40.00 | 49.00 | 6.70 | TS-O20 |
| DSD-I1 57.00-60.99 NOM 2 | 57.00 | 60.99 | 98.20 | 40.00 | 49.00 | 6.70 | TS-O20 |
| DSD-I1 61.00-65.00 NOM 0 | 61.00 | 65.00 | 98.70 | 40.00 | 53.00 | 7.20 | TS-O21 |
| DSD-I1 61.00-65.00 NOM 2 | 61.00 | 65.00 | 98.70 | 40.00 | 53.00 | 7.20 | TS-O21 |
- The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron
For quotation form and user guide, see pages 630-647 Ordering example: DSD-I1 38.20 DT-P0 (1) Tube designation For holders, see pages: TS-O** (627)
