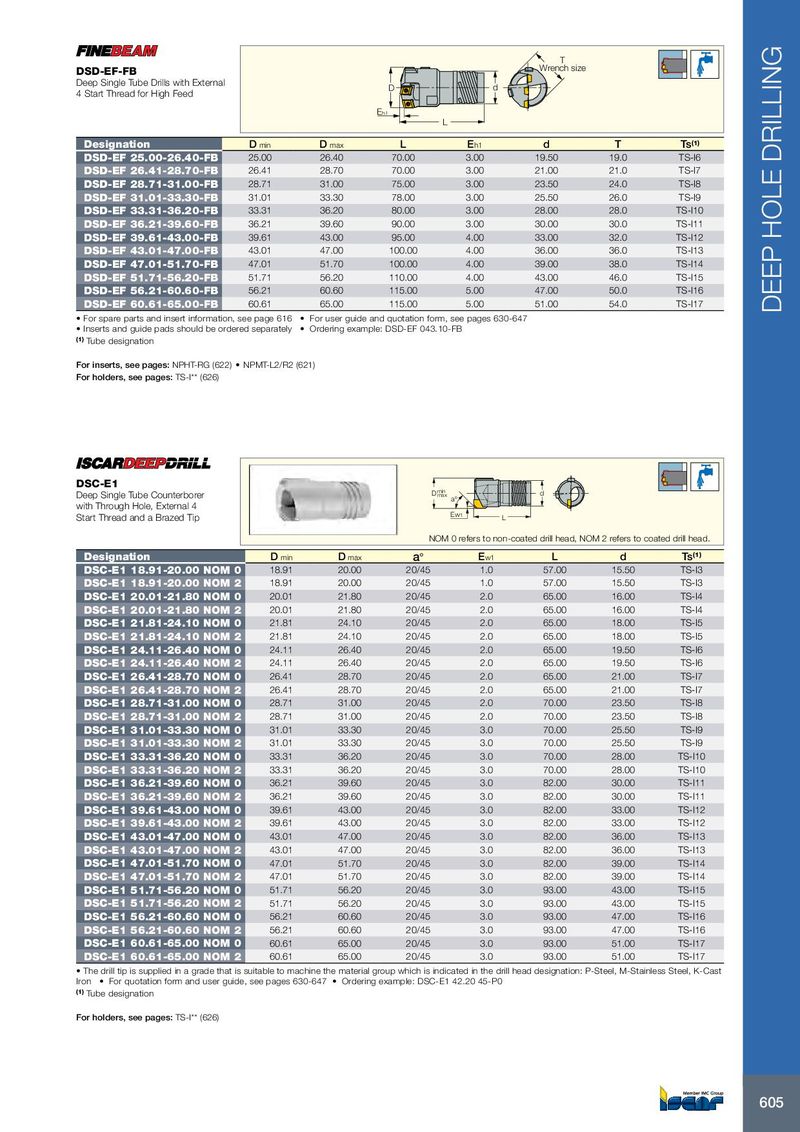

DSD-EF-FB Wrench size Deep Single Tube Drills with External 4 Start Thread for High Feed E h1 L
| Designation | D min | D max | L | Eh1 | d | T | Ts (1) | |
| DSD-EF 25.00-26.40-FB | 25.00 | 26.40 | 70.00 | 3.00 | 19.50 | 19.0 | TS-I6 | |
| DSD-EF 26.41-28.70-FB | 26.41 | 28.70 | 70.00 | 3.00 | 21.00 | 21.0 | TS-I7 | |
| DSD-EF 28.71-31.00-FB | 28.71 | 31.00 | 75.00 | 3.00 | 23.50 | 24.0 | TS-I8 | |
| DSD-EF 31.01-33.30-FB | 31.01 | 33.30 | 78.00 | 3.00 | 25.50 | 26.0 | TS-I9 | |
| DSD-EF 33.31-36.20-FB | 33.31 | 36.20 | 80.00 | 3.00 | 28.00 | 28.0 | TS-I10 | |
| DSD-EF 36.21-39.60-FB | 36.21 | 39.60 | 90.00 | 3.00 | 30.00 | 30.0 | TS-I11 | |
| DSD-EF 39.61-43.00-FB | 39.61 | 43.00 | 95.00 | 4.00 | 33.00 | 32.0 | TS-I12 | |
| DSD-EF 43.01-47.00-FB | 43.01 | 47.00 | 100.00 | 4.00 | 36.00 | 36.0 | TS-I13 | |
| DSD-EF 47.01-51.70-FB | 47.01 | 51.70 | 100.00 | 4.00 | 39.00 | 38.0 | TS-I14 | |
| DSD-EF 51.71-56.20-FB | 51.71 | 56.20 | 110.00 | 4.00 | 43.00 | 46.0 | TS-I15 | |
| DSD-EF 56.21-60.60-FB | 56.21 | 60.60 | 115.00 | 5.00 | 47.00 | 50.0 | TS-I16 | |
| DSD-EF 60.61-65.00-FB | 60.61 | 65.00 | 115.00 | 5.00 | 51.00 | 54.0 | TS-I17 |
- For spare parts and insert information, see page 616
- For user guide and quotation form, see pages 630-647
- Inserts and guide pads should be ordered separately
- Ordering example: DSD-EF 043.10-FB
(1) Tube designation For inserts, see pages: NPHT-RG (622) NPMT-L2/R2 (621) For holders, see pages: TS-I** (626)
DSC-E1
Deep Single Tube Counterborer D min d
max aº with Through Hole, External 4
Start Thread and a Brazed Tip Ew1 L
NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head.
| Designation | D | D | a° | E | L | d | Ts(1) |
| min | max | w1 | |||||
| DSC-E1 18.91-20.00 NOM 0 | 18.91 | 20.00 | 20/45 | 1.0 | 57.00 | 15.50 | TS-I3 |
| DSC-E1 18.91-20.00 NOM 2 | 18.91 | 20.00 | 20/45 | 1.0 | 57.00 | 15.50 | TS-I3 |
| DSC-E1 20.01-21.80 NOM 0 | 20.01 | 21.80 | 20/45 | 2.0 | 65.00 | 16.00 | TS-I4 |
| DSC-E1 20.01-21.80 NOM 2 | 20.01 | 21.80 | 20/45 | 2.0 | 65.00 | 16.00 | TS-I4 |
| DSC-E1 21.81-24.10 NOM 0 | 21.81 | 24.10 | 20/45 | 2.0 | 65.00 | 18.00 | TS-I5 |
| DSC-E1 21.81-24.10 NOM 2 | 21.81 | 24.10 | 20/45 | 2.0 | 65.00 | 18.00 | TS-I5 |
| DSC-E1 24.11-26.40 NOM 0 | 24.11 | 26.40 | 20/45 | 2.0 | 65.00 | 19.50 | TS-I6 |
| DSC-E1 24.11-26.40 NOM 2 | 24.11 | 26.40 | 20/45 | 2.0 | 65.00 | 19.50 | TS-I6 |
| DSC-E1 26.41-28.70 NOM 0 | 26.41 | 28.70 | 20/45 | 2.0 | 65.00 | 21.00 | TS-I7 |
| DSC-E1 26.41-28.70 NOM 2 | 26.41 | 28.70 | 20/45 | 2.0 | 65.00 | 21.00 | TS-I7 |
| DSC-E1 28.71-31.00 NOM 0 | 28.71 | 31.00 | 20/45 | 2.0 | 70.00 | 23.50 | TS-I8 |
| DSC-E1 28.71-31.00 NOM 2 | 28.71 | 31.00 | 20/45 | 2.0 | 70.00 | 23.50 | TS-I8 |
| DSC-E1 31.01-33.30 NOM 0 | 31.01 | 33.30 | 20/45 | 3.0 | 70.00 | 25.50 | TS-I9 |
| DSC-E1 31.01-33.30 NOM 2 | 31.01 | 33.30 | 20/45 | 3.0 | 70.00 | 25.50 | TS-I9 |
| DSC-E1 33.31-36.20 NOM 0 | 33.31 | 36.20 | 20/45 | 3.0 | 70.00 | 28.00 | TS-I10 |
| DSC-E1 33.31-36.20 NOM 2 | 33.31 | 36.20 | 20/45 | 3.0 | 70.00 | 28.00 | TS-I10 |
| DSC-E1 36.21-39.60 NOM 0 | 36.21 | 39.60 | 20/45 | 3.0 | 82.00 | 30.00 | TS-I11 |
| DSC-E1 36.21-39.60 NOM 2 | 36.21 | 39.60 | 20/45 | 3.0 | 82.00 | 30.00 | TS-I11 |
| DSC-E1 39.61-43.00 NOM 0 | 39.61 | 43.00 | 20/45 | 3.0 | 82.00 | 33.00 | TS-I12 |
| DSC-E1 39.61-43.00 NOM 2 | 39.61 | 43.00 | 20/45 | 3.0 | 82.00 | 33.00 | TS-I12 |
| DSC-E1 43.01-47.00 NOM 0 | 43.01 | 47.00 | 20/45 | 3.0 | 82.00 | 36.00 | TS-I13 |
| DSC-E1 43.01-47.00 NOM 2 | 43.01 | 47.00 | 20/45 | 3.0 | 82.00 | 36.00 | TS-I13 |
| DSC-E1 47.01-51.70 NOM 0 | 47.01 | 51.70 | 20/45 | 3.0 | 82.00 | 39.00 | TS-I14 |
| DSC-E1 47.01-51.70 NOM 2 | 47.01 | 51.70 | 20/45 | 3.0 | 82.00 | 39.00 | TS-I14 |
| DSC-E1 51.71-56.20 NOM 0 | 51.71 | 56.20 | 20/45 | 3.0 | 93.00 | 43.00 | TS-I15 |
| DSC-E1 51.71-56.20 NOM 2 | 51.71 | 56.20 | 20/45 | 3.0 | 93.00 | 43.00 | TS-I15 |
| DSC-E1 56.21-60.60 NOM 0 | 56.21 | 60.60 | 20/45 | 3.0 | 93.00 | 47.00 | TS-I16 |
| DSC-E1 56.21-60.60 NOM 2 | 56.21 | 60.60 | 20/45 | 3.0 | 93.00 | 47.00 | TS-I16 |
| DSC-E1 60.61-65.00 NOM 0 | 60.61 | 65.00 | 20/45 | 3.0 | 93.00 | 51.00 | TS-I17 |
| DSC-E1 60.61-65.00 NOM 2 | 60.61 | 65.00 | 20/45 | 3.0 | 93.00 | 51.00 | TS-I17 |
- The drill tip is supplied in a grade that is suitable to machine the material group which is indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast
Iron For quotation form and user guide, see pages 630-647 Ordering example: DSC-E1 42.20 45-P0 (1) Tube designation For holders, see pages: TS-I** (626)
