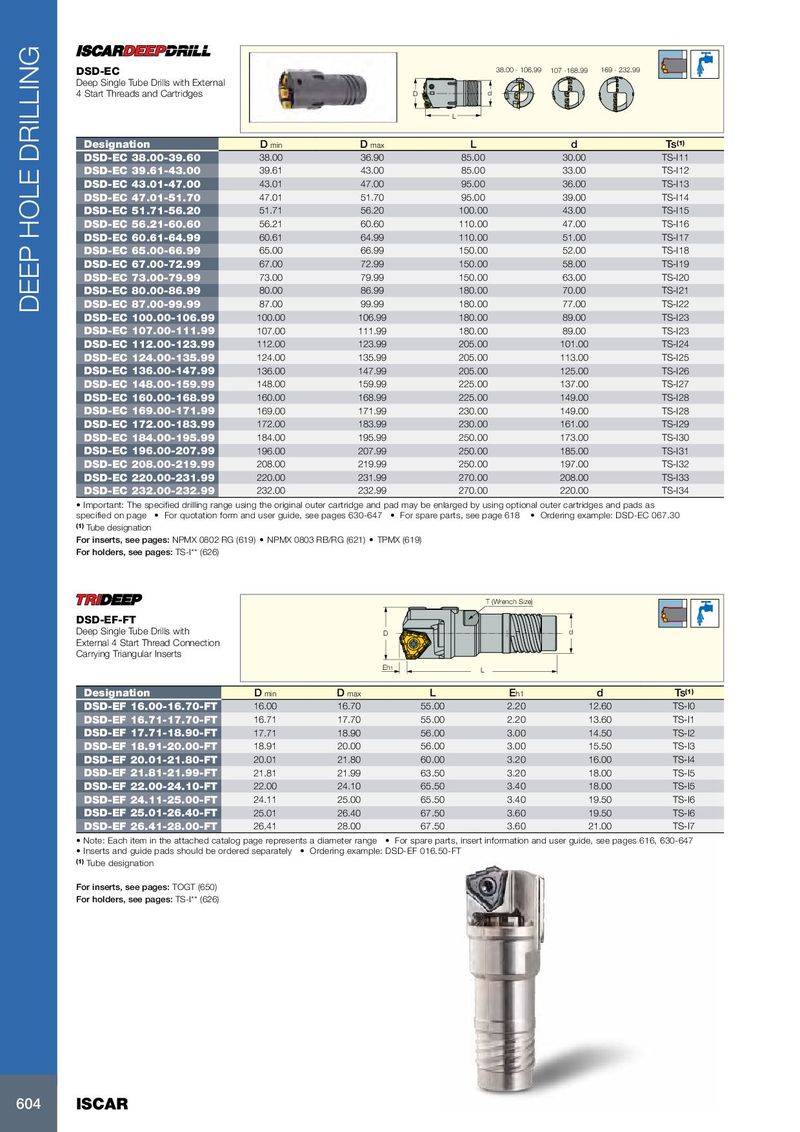

DSD-EC 38.00 - 106.99 107 -168.99 169 - 232.99
Deep Single Tube Drills with External
4 Start Threads and Cartridges D d
L
| Designation | D min | D max | L d | Ts(1) | |
| DSD-EC 38.00-39.60 | 38.00 | 36.90 | 85.00 30.00 | TS-I11 | |
| DSD-EC 39.61-43.00 | 39.61 | 43.00 | 85.00 33.00 | TS-I12 | |
| DSD-EC 43.01-47.00 | 43.01 | 47.00 | 95.00 36.00 | TS-I13 | |
| DSD-EC 47.01-51.70 | 47.01 | 51.70 | 95.00 39.00 | TS-I14 | |
| DSD-EC 51.71-56.20 | 51.71 | 56.20 | 100.00 | 43.00 | TS-I15 |
| DSD-EC 56.21-60.60 | 56.21 | 60.60 | 110.00 | 47.00 | TS-I16 |
| DSD-EC 60.61-64.99 | 60.61 | 64.99 | 110.00 | 51.00 | TS-I17 |
| DSD-EC 65.00-66.99 | 65.00 | 66.99 | 150.00 | 52.00 | TS-I18 |
| DSD-EC 67.00-72.99 | 67.00 | 72.99 | 150.00 | 58.00 | TS-I19 |
| DSD-EC 73.00-79.99 | 73.00 | 79.99 | 150.00 | 63.00 | TS-I20 |
| DSD-EC 80.00-86.99 | 80.00 | 86.99 | 180.00 | 70.00 | TS-I21 |
| DSD-EC 87.00-99.99 | 87.00 | 99.99 | 180.00 | 77.00 | TS-I22 |
| DSD-EC 100.00-106.99 | 100.00 | 106.99 | 180.00 | 89.00 | TS-I23 |
| DSD-EC 107.00-111.99 | 107.00 | 111.99 | 180.00 | 89.00 | TS-I23 |
| DSD-EC 112.00-123.99 | 112.00 | 123.99 | 205.00 | 101.00 | TS-I24 |
| DSD-EC 124.00-135.99 | 124.00 | 135.99 | 205.00 | 113.00 | TS-I25 |
| DSD-EC 136.00-147.99 | 136.00 | 147.99 | 205.00 | 125.00 | TS-I26 |
| DSD-EC 148.00-159.99 | 148.00 | 159.99 | 225.00 | 137.00 | TS-I27 |
| DSD-EC 160.00-168.99 | 160.00 | 168.99 | 225.00 | 149.00 | TS-I28 |
| DSD-EC 169.00-171.99 | 169.00 | 171.99 | 230.00 | 149.00 | TS-I28 |
| DSD-EC 172.00-183.99 | 172.00 | 183.99 | 230.00 | 161.00 | TS-I29 |
| DSD-EC 184.00-195.99 | 184.00 | 195.99 | 250.00 | 173.00 | TS-I30 |
| DSD-EC 196.00-207.99 | 196.00 | 207.99 | 250.00 | 185.00 | TS-I31 |
| DSD-EC 208.00-219.99 | 208.00 | 219.99 | 250.00 | 197.00 | TS-I32 |
| DSD-EC 220.00-231.99 | 220.00 | 231.99 | 270.00 | 208.00 | TS-I33 |
| DSD-EC 232.00-232.99 | 232.00 | 232.99 | 270.00 | 220.00 | TS-I34 |
- Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as
specified on page For quotation form and user guide, see pages 630-647 For spare parts, see page 618 Ordering example: DSD-EC 067.30 (1) Tube designation For inserts, see pages: NPMX 0802 RG (619) NPMX 0803 RB/RG (621) TPMX (619) For holders, see pages: TS-I** (626)
T (Wrench Size)
DSD-EF-FT
Deep Single Tube Drills with D d
External 4 Start Thread Connection Carrying Triangular Inserts Eh1 L
| Designation | D min | D max | L | Eh1 | d | Ts(1) |
| DSD-EF 16.00-16.70-FT | 16.00 | 16.70 | 55.00 | 2.20 | 12.60 | TS-I0 |
| DSD-EF 16.71-17.70-FT | 16.71 | 17.70 | 55.00 | 2.20 | 13.60 | TS-I1 |
| DSD-EF 17.71-18.90-FT | 17.71 | 18.90 | 56.00 | 3.00 | 14.50 | TS-I2 |
| DSD-EF 18.91-20.00-FT | 18.91 | 20.00 | 56.00 | 3.00 | 15.50 | TS-I3 |
| DSD-EF 20.01-21.80-FT | 20.01 | 21.80 | 60.00 | 3.20 | 16.00 | TS-I4 |
| DSD-EF 21.81-21.99-FT | 21.81 | 21.99 | 63.50 | 3.20 | 18.00 | TS-I5 |
| DSD-EF 22.00-24.10-FT | 22.00 | 24.10 | 65.50 | 3.40 | 18.00 | TS-I5 |
| DSD-EF 24.11-25.00-FT | 24.11 | 25.00 | 65.50 | 3.40 | 19.50 | TS-I6 |
| DSD-EF 25.01-26.40-FT | 25.01 | 26.40 | 67.50 | 3.60 | 19.50 | TS-I6 |
| DSD-EF 26.41-28.00-FT | 26.41 | 28.00 | 67.50 | 3.60 | 21.00 | TS-I7 |
- Note: Each item in the attached catalog page represents a diameter range
- For spare parts, insert information and user guide, see pages 616, 630-647
- Inserts and guide pads should be ordered separately
- Ordering example: DSD-EF 016.50-FT
(1) Tube designation For inserts, see pages: TOGT (650) For holders, see pages: TS-I** (626)
