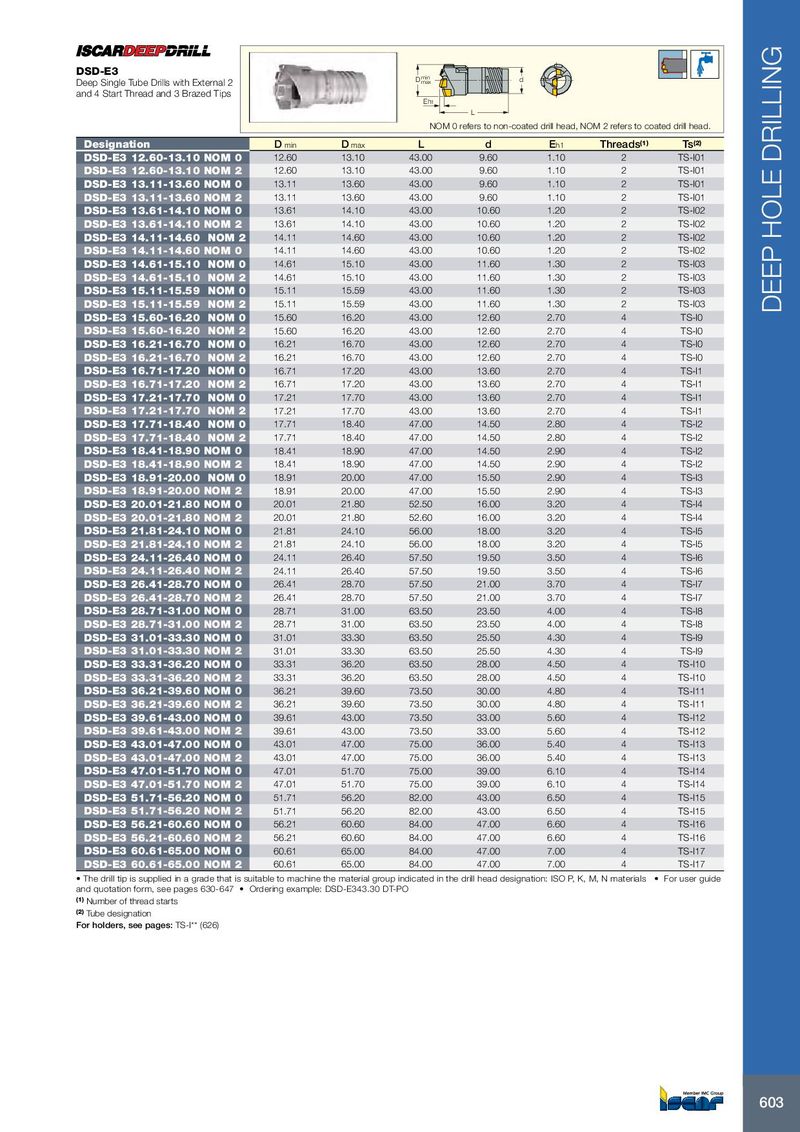

DSD-E3
Deep Single Tube Drills with External 2 D min d
and 4 Start Thread and 3 Brazed Tips Eh1 L NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head.
| Designation | D min | D max | L | d | Eh1 | Threads(1) | Ts(2) |
| DSD-E3 12.60-13.10 NOM 0 | 12.60 | 13.10 | 43.00 | 9.60 | 1.10 | 2 | TS-I01 |
| DSD-E3 12.60-13.10 NOM 2 | 12.60 | 13.10 | 43.00 | 9.60 | 1.10 | 2 | TS-I01 |
| DSD-E3 13.11-13.60 NOM 0 | 13.11 | 13.60 | 43.00 | 9.60 | 1.10 | 2 | TS-I01 |
| DSD-E3 13.11-13.60 NOM 2 | 13.11 | 13.60 | 43.00 | 9.60 | 1.10 | 2 | TS-I01 |
| DSD-E3 13.61-14.10 NOM 0 | 13.61 | 14.10 | 43.00 | 10.60 | 1.20 | 2 | TS-I02 |
| DSD-E3 13.61-14.10 NOM 2 | 13.61 | 14.10 | 43.00 | 10.60 | 1.20 | 2 | TS-I02 |
| DSD-E3 14.11-14.60 NOM 2 | 14.11 | 14.60 | 43.00 | 10.60 | 1.20 | 2 | TS-I02 |
| DSD-E3 14.11-14.60 NOM 0 | 14.11 | 14.60 | 43.00 | 10.60 | 1.20 | 2 | TS-I02 |
| DSD-E3 14.61-15.10 NOM 0 | 14.61 | 15.10 | 43.00 | 11.60 | 1.30 | 2 | TS-I03 |
| DSD-E3 14.61-15.10 NOM 2 | 14.61 | 15.10 | 43.00 | 11.60 | 1.30 | 2 | TS-I03 |
| DSD-E3 15.11-15.59 NOM 0 | 15.11 | 15.59 | 43.00 | 11.60 | 1.30 | 2 | TS-I03 |
| DSD-E3 15.11-15.59 NOM 2 | 15.11 | 15.59 | 43.00 | 11.60 | 1.30 | 2 | TS-I03 |
| DSD-E3 15.60-16.20 NOM 0 | 15.60 | 16.20 | 43.00 | 12.60 | 2.70 | 4 | TS-I0 |
| DSD-E3 15.60-16.20 NOM 2 | 15.60 | 16.20 | 43.00 | 12.60 | 2.70 | 4 | TS-I0 |
| DSD-E3 16.21-16.70 NOM 0 | 16.21 | 16.70 | 43.00 | 12.60 | 2.70 | 4 | TS-I0 |
| DSD-E3 16.21-16.70 NOM 2 | 16.21 | 16.70 | 43.00 | 12.60 | 2.70 | 4 | TS-I0 |
| DSD-E3 16.71-17.20 NOM 0 | 16.71 | 17.20 | 43.00 | 13.60 | 2.70 | 4 | TS-I1 |
| DSD-E3 16.71-17.20 NOM 2 | 16.71 | 17.20 | 43.00 | 13.60 | 2.70 | 4 | TS-I1 |
| DSD-E3 17.21-17.70 NOM 0 | 17.21 | 17.70 | 43.00 | 13.60 | 2.70 | 4 | TS-I1 |
| DSD-E3 17.21-17.70 NOM 2 | 17.21 | 17.70 | 43.00 | 13.60 | 2.70 | 4 | TS-I1 |
| DSD-E3 17.71-18.40 NOM 0 | 17.71 | 18.40 | 47.00 | 14.50 | 2.80 | 4 | TS-I2 |
| DSD-E3 17.71-18.40 NOM 2 | 17.71 | 18.40 | 47.00 | 14.50 | 2.80 | 4 | TS-I2 |
| DSD-E3 18.41-18.90 NOM 0 | 18.41 | 18.90 | 47.00 | 14.50 | 2.90 | 4 | TS-I2 |
| DSD-E3 18.41-18.90 NOM 2 | 18.41 | 18.90 | 47.00 | 14.50 | 2.90 | 4 | TS-I2 |
| DSD-E3 18.91-20.00 NOM 0 | 18.91 | 20.00 | 47.00 | 15.50 | 2.90 | 4 | TS-I3 |
| DSD-E3 18.91-20.00 NOM 2 | 18.91 | 20.00 | 47.00 | 15.50 | 2.90 | 4 | TS-I3 |
| DSD-E3 20.01-21.80 NOM 0 | 20.01 | 21.80 | 52.50 | 16.00 | 3.20 | 4 | TS-I4 |
| DSD-E3 20.01-21.80 NOM 2 | 20.01 | 21.80 | 52.60 | 16.00 | 3.20 | 4 | TS-I4 |
| DSD-E3 21.81-24.10 NOM 0 | 21.81 | 24.10 | 56.00 | 18.00 | 3.20 | 4 | TS-I5 |
| DSD-E3 21.81-24.10 NOM 2 | 21.81 | 24.10 | 56.00 | 18.00 | 3.20 | 4 | TS-I5 |
| DSD-E3 24.11-26.40 NOM 0 | 24.11 | 26.40 | 57.50 | 19.50 | 3.50 | 4 | TS-I6 |
| DSD-E3 24.11-26.40 NOM 2 | 24.11 | 26.40 | 57.50 | 19.50 | 3.50 | 4 | TS-I6 |
| DSD-E3 26.41-28.70 NOM 0 | 26.41 | 28.70 | 57.50 | 21.00 | 3.70 | 4 | TS-I7 |
| DSD-E3 26.41-28.70 NOM 2 | 26.41 | 28.70 | 57.50 | 21.00 | 3.70 | 4 | TS-I7 |
| DSD-E3 28.71-31.00 NOM 0 | 28.71 | 31.00 | 63.50 | 23.50 | 4.00 | 4 | TS-I8 |
| DSD-E3 28.71-31.00 NOM 2 | 28.71 | 31.00 | 63.50 | 23.50 | 4.00 | 4 | TS-I8 |
| DSD-E3 31.01-33.30 NOM 0 | 31.01 | 33.30 | 63.50 | 25.50 | 4.30 | 4 | TS-I9 |
| DSD-E3 31.01-33.30 NOM 2 | 31.01 | 33.30 | 63.50 | 25.50 | 4.30 | 4 | TS-I9 |
| DSD-E3 33.31-36.20 NOM 0 | 33.31 | 36.20 | 63.50 | 28.00 | 4.50 | 4 | TS-I10 |
| DSD-E3 33.31-36.20 NOM 2 | 33.31 | 36.20 | 63.50 | 28.00 | 4.50 | 4 | TS-I10 |
| DSD-E3 36.21-39.60 NOM 0 | 36.21 | 39.60 | 73.50 | 30.00 | 4.80 | 4 | TS-I11 |
| DSD-E3 36.21-39.60 NOM 2 | 36.21 | 39.60 | 73.50 | 30.00 | 4.80 | 4 | TS-I11 |
| DSD-E3 39.61-43.00 NOM 0 | 39.61 | 43.00 | 73.50 | 33.00 | 5.60 | 4 | TS-I12 |
| DSD-E3 39.61-43.00 NOM 2 | 39.61 | 43.00 | 73.50 | 33.00 | 5.60 | 4 | TS-I12 |
| DSD-E3 43.01-47.00 NOM 0 | 43.01 | 47.00 | 75.00 | 36.00 | 5.40 | 4 | TS-I13 |
| DSD-E3 43.01-47.00 NOM 2 | 43.01 | 47.00 | 75.00 | 36.00 | 5.40 | 4 | TS-I13 |
| DSD-E3 47.01-51.70 NOM 0 | 47.01 | 51.70 | 75.00 | 39.00 | 6.10 | 4 | TS-I14 |
| DSD-E3 47.01-51.70 NOM 2 | 47.01 | 51.70 | 75.00 | 39.00 | 6.10 | 4 | TS-I14 |
| DSD-E3 51.71-56.20 NOM 0 | 51.71 | 56.20 | 82.00 | 43.00 | 6.50 | 4 | TS-I15 |
| DSD-E3 51.71-56.20 NOM 2 | 51.71 | 56.20 | 82.00 | 43.00 | 6.50 | 4 | TS-I15 |
| DSD-E3 56.21-60.60 NOM 0 | 56.21 | 60.60 | 84.00 | 47.00 | 6.60 | 4 | TS-I16 |
| DSD-E3 56.21-60.60 NOM 2 | 56.21 | 60.60 | 84.00 | 47.00 | 6.60 | 4 | TS-I16 |
| DSD-E3 60.61-65.00 NOM 0 | 60.61 | 65.00 | 84.00 | 47.00 | 7.00 | 4 | TS-I17 |
| DSD-E3 60.61-65.00 NOM 2 | 60.61 | 65.00 | 84.00 | 47.00 | 7.00 | 4 | TS-I17 |
- The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: ISO P, K, M, N materials
- For user guide
and quotation form, see pages 630-647 Ordering example: DSD-E343.30 DT-PO (1) Number of thread starts (2) Tube designation For holders, see pages: TS-I** (626)
