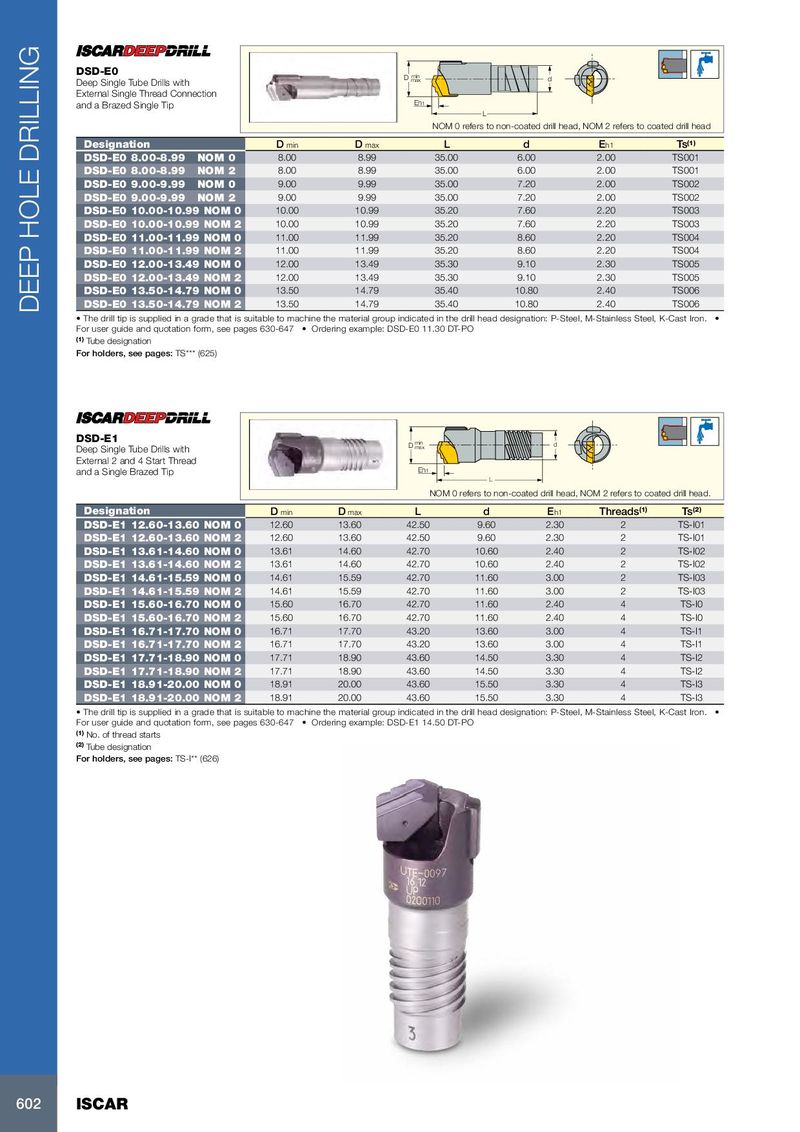

DSD-E0
Deep Single Tube Drills with D min d
External Single Thread Connection and a Brazed Single Tip Eh1 L NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head
| Designation | D min | D max | L | d | Eh1 | Ts(1) |
| DSD-E0 8.00-8.99 NOM 0 | 8.00 | 8.99 | 35.00 | 6.00 | 2.00 | TS001 |
| DSD-E0 8.00-8.99 NOM 2 | 8.00 | 8.99 | 35.00 | 6.00 | 2.00 | TS001 |
| DSD-E0 9.00-9.99 NOM 0 | 9.00 | 9.99 | 35.00 | 7.20 | 2.00 | TS002 |
| DSD-E0 9.00-9.99 NOM 2 | 9.00 | 9.99 | 35.00 | 7.20 | 2.00 | TS002 |
| DSD-E0 10.00-10.99 NOM 0 | 10.00 | 10.99 | 35.20 | 7.60 | 2.20 | TS003 |
| DSD-E0 10.00-10.99 NOM 2 | 10.00 | 10.99 | 35.20 | 7.60 | 2.20 | TS003 |
| DSD-E0 11.00-11.99 NOM 0 | 11.00 | 11.99 | 35.20 | 8.60 | 2.20 | TS004 |
| DSD-E0 11.00-11.99 NOM 2 | 11.00 | 11.99 | 35.20 | 8.60 | 2.20 | TS004 |
| DSD-E0 12.00-13.49 NOM 0 | 12.00 | 13.49 | 35.30 | 9.10 | 2.30 | TS005 |
| DSD-E0 12.00-13.49 NOM 2 | 12.00 | 13.49 | 35.30 | 9.10 | 2.30 | TS005 |
| DSD-E0 13.50-14.79 NOM 0 | 13.50 | 14.79 | 35.40 | 10.80 | 2.40 | TS006 |
| DSD-E0 13.50-14.79 NOM 2 | 13.50 | 14.79 | 35.40 | 10.80 | 2.40 | TS006 |
- The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron.
For user guide and quotation form, see pages 630-647 Ordering example: DSD-E0 11.30 DT-PO (1) Tube designation For holders, see pages: TS*** (625)
DSD-E1
Deep Single Tube Drills with D min d
max External 2 and 4 Start Thread and a Single Brazed Tip Eh1 L NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head.
| Designation | D min | D max | L | d | Eh1 | Threads(1) | Ts(2) |
| DSD-E1 12.60-13.60 NOM 0 | 12.60 | 13.60 | 42.50 | 9.60 | 2.30 | 2 | TS-I01 |
| DSD-E1 12.60-13.60 NOM 2 | 12.60 | 13.60 | 42.50 | 9.60 | 2.30 | 2 | TS-I01 |
| DSD-E1 13.61-14.60 NOM 0 | 13.61 | 14.60 | 42.70 | 10.60 | 2.40 | 2 | TS-I02 |
| DSD-E1 13.61-14.60 NOM 2 | 13.61 | 14.60 | 42.70 | 10.60 | 2.40 | 2 | TS-I02 |
| DSD-E1 14.61-15.59 NOM 0 | 14.61 | 15.59 | 42.70 | 11.60 | 3.00 | 2 | TS-I03 |
| DSD-E1 14.61-15.59 NOM 2 | 14.61 | 15.59 | 42.70 | 11.60 | 3.00 | 2 | TS-I03 |
| DSD-E1 15.60-16.70 NOM 0 | 15.60 | 16.70 | 42.70 | 11.60 | 2.40 | 4 | TS-I0 |
| DSD-E1 15.60-16.70 NOM 2 | 15.60 | 16.70 | 42.70 | 11.60 | 2.40 | 4 | TS-I0 |
| DSD-E1 16.71-17.70 NOM 0 | 16.71 | 17.70 | 43.20 | 13.60 | 3.00 | 4 | TS-I1 |
| DSD-E1 16.71-17.70 NOM 2 | 16.71 | 17.70 | 43.20 | 13.60 | 3.00 | 4 | TS-I1 |
| DSD-E1 17.71-18.90 NOM 0 | 17.71 | 18.90 | 43.60 | 14.50 | 3.30 | 4 | TS-I2 |
| DSD-E1 17.71-18.90 NOM 2 | 17.71 | 18.90 | 43.60 | 14.50 | 3.30 | 4 | TS-I2 |
| DSD-E1 18.91-20.00 NOM 0 | 18.91 | 20.00 | 43.60 | 15.50 | 3.30 | 4 | TS-I3 |
| DSD-E1 18.91-20.00 NOM 2 | 18.91 | 20.00 | 43.60 | 15.50 | 3.30 | 4 | TS-I3 |
- The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron.
For user guide and quotation form, see pages 630-647 Ordering example: DSD-E1 14.50 DT-PO (1) No. of thread starts (2) Tube designation For holders, see pages: TS-I** (626)
