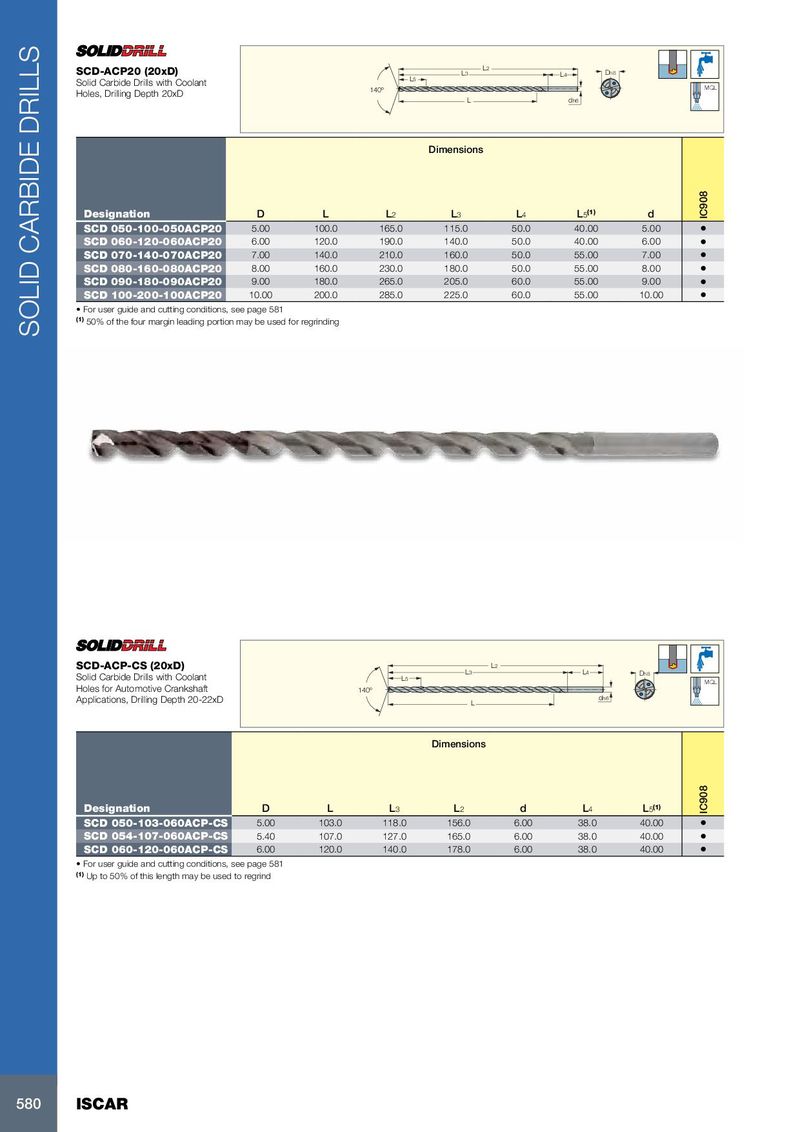

SCD-ACP20 (20xD) L2
L3 L D h8
Solid Carbide Drills with Coolant L 4
Holes, Drilling Depth 20xD 140º MQL
L dh6
Dimensions
| Designation | D | L | L2 | L3 | L4 | L5(1) | d | |
| SCD 050-100-050ACP20 | 5.00 | 100.0 | 165.0 | 115.0 | 50.0 | 40.00 | 5.00 | |
| SCD 060-120-060ACP20 | 6.00 | 120.0 | 190.0 | 140.0 | 50.0 | 40.00 | 6.00 | |
| SCD 070-140-070ACP20 | 7.00 | 140.0 | 210.0 | 160.0 | 50.0 | 55.00 | 7.00 | |
| SCD 080-160-080ACP20 | 8.00 | 160.0 | 230.0 | 180.0 | 50.0 | 55.00 | 8.00 | |
| SCD 090-180-090ACP20 | 9.00 | 180.0 | 265.0 | 205.0 | 60.0 | 55.00 | 9.00 | |
| SCD 100-200-100ACP20 | 10.00 | 200.0 | 285.0 | 225.0 | 60.0 | 55.00 | 10.00 |
- For user guide and cutting conditions, see page 581
(1) 50% of the four margin leading portion may be used for regrinding
SCD-ACP-CS (20xD) L 2
L 3 L4 D
Solid Carbide Drills with Coolant L h8
5 MQL Holes for Automotive Crankshaft 140º Applications, Drilling Depth 20-22xD dh6 L
Dimensions
| Designation | D | L | L3 | L2 | d | L4 | L5(1) | |
| SCD 050-103-060ACP-CS | 5.00 | 103.0 | 118.0 | 156.0 | 6.00 | 38.0 | 40.00 | |
| SCD 054-107-060ACP-CS | 5.40 | 107.0 | 127.0 | 165.0 | 6.00 | 38.0 | 40.00 | |
| SCD 060-120-060ACP-CS | 6.00 | 120.0 | 140.0 | 178.0 | 6.00 | 38.0 | 40.00 |
- For user guide and cutting conditions, see page 581
(1) Up to 50% of this length may be used to regrind
